How do I sum up Story in tasks to the linked story ?

Question

Say there are 5 tasks linked to a story, I want to add the story points of those tasks and sum it up on the story. I have done this with sub-tasks and tasks and it's working but I am not able to do this with Stories although I am using the same logic.

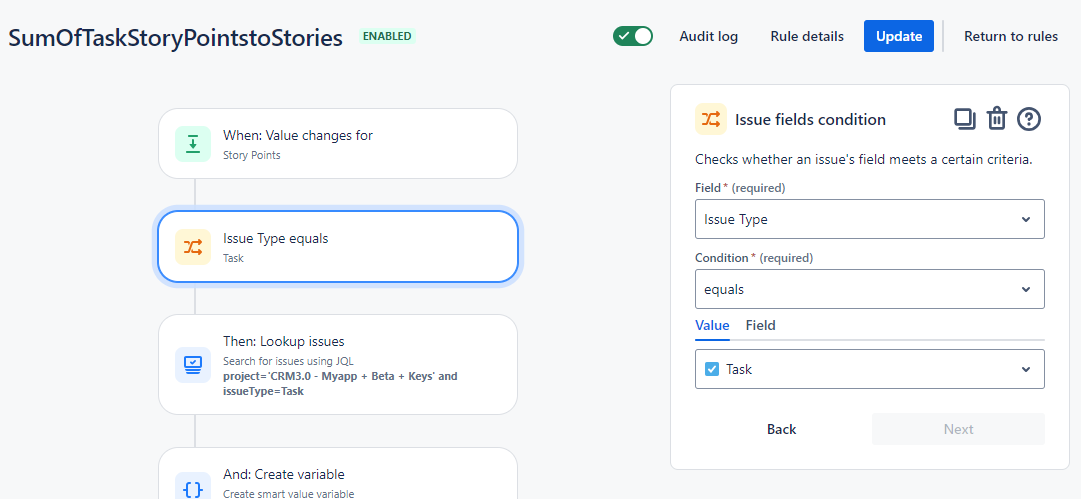

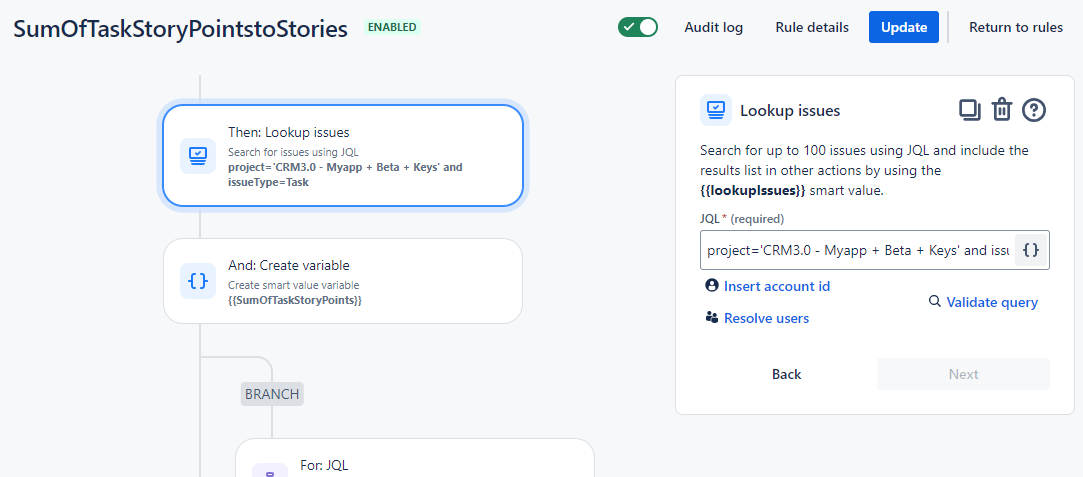

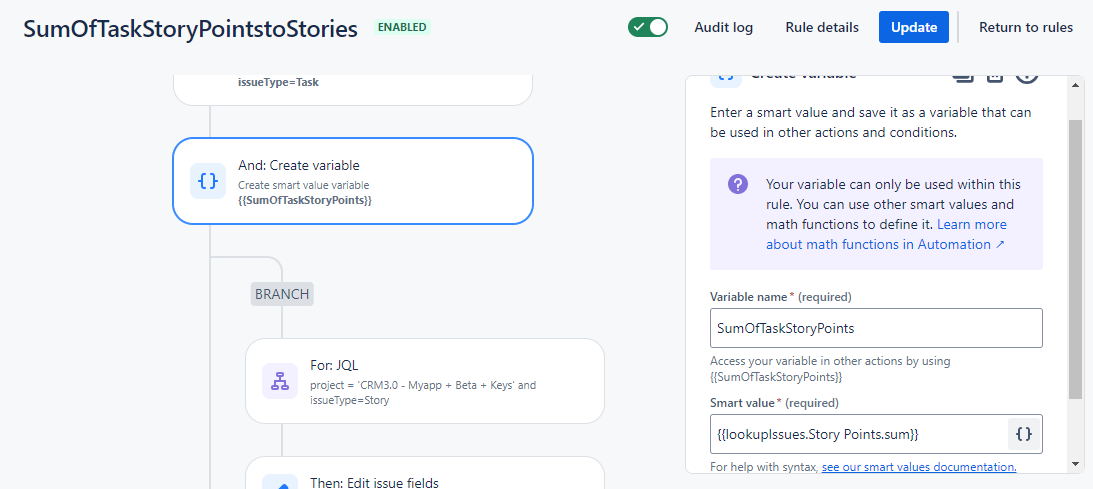

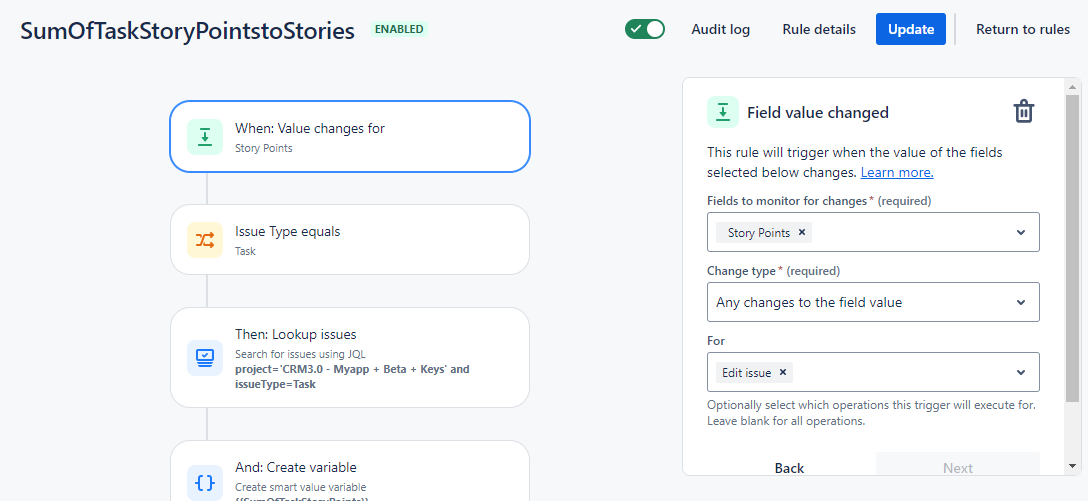

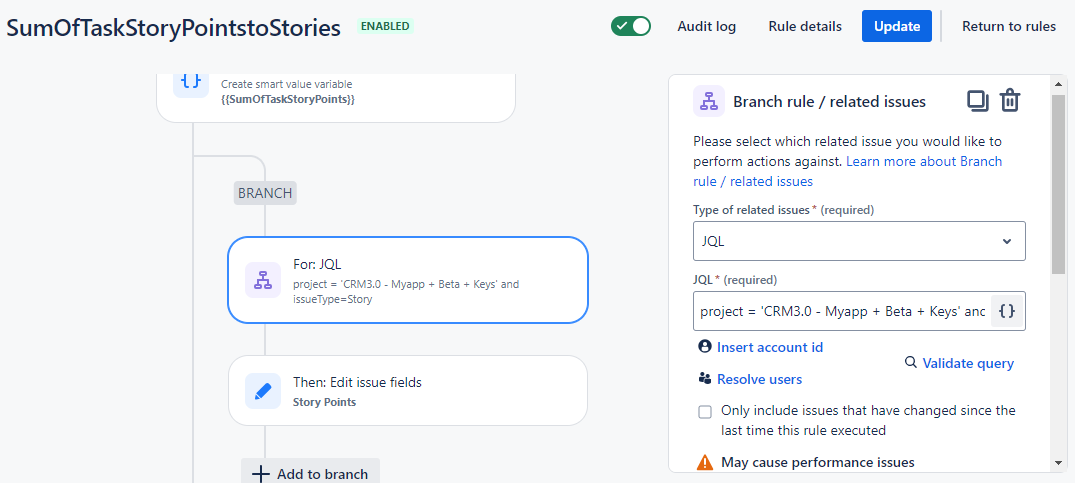

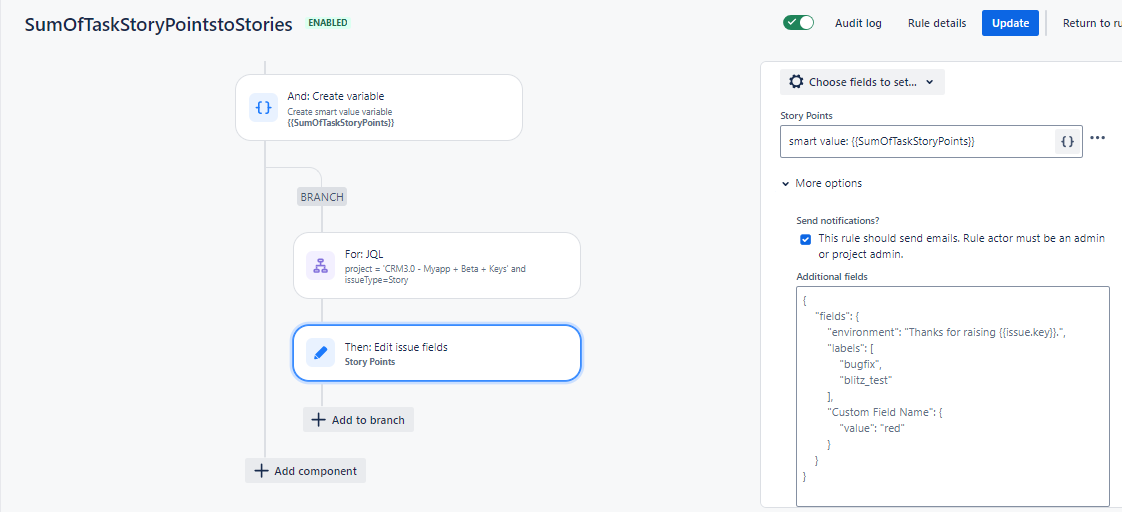

Below you will find what I have tried

homesfy987 · Answer

@Himanshi waiting for your response

homesfy987 · Answer

Hi Himanshi,

I don't see an error message in the Automation Workflow.
But here's the JSON of the Automation :

{
"cloud": true,
"rules": [
{
"id": 20867451,
"clientKey": "CLIENT_KEY",
"name": "SumOfTaskStoryPointstoStories",
"state": "ENABLED",
"description": "",
"authorAccountId": "ACCOUNT_ID",
"actor": {
"type": "ACCOUNT_ID",
"value": "557058:f58131cb-b67d-43c7-b30d-6b58d40bd077"
},
"created": 1722510103925,
"updated": 1722510385109,
"trigger": {
"id": "549398461",
"component": "TRIGGER",
"parentId": null,
"conditionParentId": null,
"schemaVersion": 2,
"type": "jira.issue.field.changed",
"value": {
"changeType": "ANY_CHANGE",
"fields": [
{
"value": "Story Points",
"type": "fieldName"
}
],
"actions": [
"edit"
]
},
"children": [],
"conditions": [],
"connectionId": null
},
"components": [
{
"id": "549398462",
"component": "CONDITION",
"parentId": null,
"conditionParentId": null,
"schemaVersion": 3,
"type": "jira.issue.condition",
"value": {
"selectedField": {
"type": "ID",
"value": "issuetype"
},
"selectedFieldType": "issuetype",
"comparison": "EQUALS",
"compareValue": {
"type": "ID",
"modifier": null,
"value": "10015",
"multiValue": false,
"source": null
}
},
"children": [],
"conditions": [],
"connectionId": null
},
{
"id": "549398465",
"component": "ACTION",
"parentId": null,
"conditionParentId": null,
"schemaVersion": 1,
"type": "jira.lookup.issues",
"value": {
"id": "_customsmartvalue_id_1722509555262",
"name": {
"type": "FREE",
"value": "lookupIssues"
},
"type": "JQL",
"query": {
"type": "SMART",
"value": "project='CRM3.0 - Myapp + Beta + Keys' and issueType=Task "
},
"lazy": false
},
"children": [],
"conditions": [],
"connectionId": null
},
{
"id": "549398468",
"component": "ACTION",
"parentId": null,
"conditionParentId": null,
"schemaVersion": 1,
"type": "jira.create.variable",
"value": {
"id": "_customsmartvalue_id_1722509727245",
"name": {
"type": "FREE",
"value": "SumOfTaskStoryPoints"
},
"type": "SMART",
"query": {
"type": "SMART",
"value": "{{lookupIssues.Story Points.sum}}"
},
"lazy": false
},
"children": [],
"conditions": [],
"connectionId": null
},
{
"id": "549398469",
"component": "BRANCH",
"parentId": null,
"conditionParentId": null,
"schemaVersion": 1,
"type": "jira.issue.related",
"value": {
"relatedType": "jql",
"jql": "project = 'CRM3.0 - Myapp + Beta + Keys' and issueType=Story",
"linkTypes": [],
"onlyUpdatedIssues": false,
"similarityLimit": 40,
"compareValue": 0
},
"children": [
{
"id": "549398470",
"component": "ACTION",
"parentId": "549398469",
"conditionParentId": null,
"schemaVersion": 12,
"type": "jira.issue.edit",
"value": {
"operations": [
{
"field": {
"type": "NAME",
"value": "Story Points"
},
"fieldType": "com.atlassian.jira.plugin.system.customfieldtypes:float",
"type": "SET",
"value": " smart value: {{SumOfTaskStoryPoints}}"
}
],
"advancedFields": null,
"sendNotifications": true
},
"children": [],
"conditions": [],
"connectionId": null
}
],
"conditions": [],
"connectionId": null
}
],
"canOtherRuleTrigger": false,
"notifyOnError": "FIRSTERROR",
"projects": [],
"labels": [],
"tags": [
{
"id": 80584120,
"ruleIdUuid": null,
"tagType": "IS_RULE_UPDATED",
"tagValue": "true"
}
],
"ruleScope": {
"resources": [
"ari:cloud:jira:4efeb0a9-5a5e-460b-9471-a0a4d89f5e98:project/10020"
]
},
"ruleHome": {
"ruleLifecycleHome": {
"locationARI": "ari:cloud:jira:4efeb0a9-5a5e-460b-9471-a0a4d89f5e98:project/10020"
},
"ruleBillingHome": {
"locationARI": "ari:cloud:jira-software::site/4efeb0a9-5a5e-460b-9471-a0a4d89f5e98"
}
},
"writeAccessType": "UNRESTRICTED",
"collaborators": [],
"billingType": "NORMAL",
"idUuid": "01910d9a-5575-736a-a103-3881acfc1259"
}
]
}

Himanshi_me2dvl · Answer

Hello @home ,

Welcome to the community!

Can you please share the error or behaviour of automation rule in question and JSON file of the automation rule post sanitising your personal details please.

I will try to give it a shot by importing the same in my test instance and tweaking it a bit.

Ideally the JQL you are using to fetch the task is not correct instead of the same you might need to use Branch operation like below :
