Different Sprint Insights Showing on Different Boards

Question

Hello, I'm wondering why I would be shown different sprint insights based on the board I'm currently viewing.

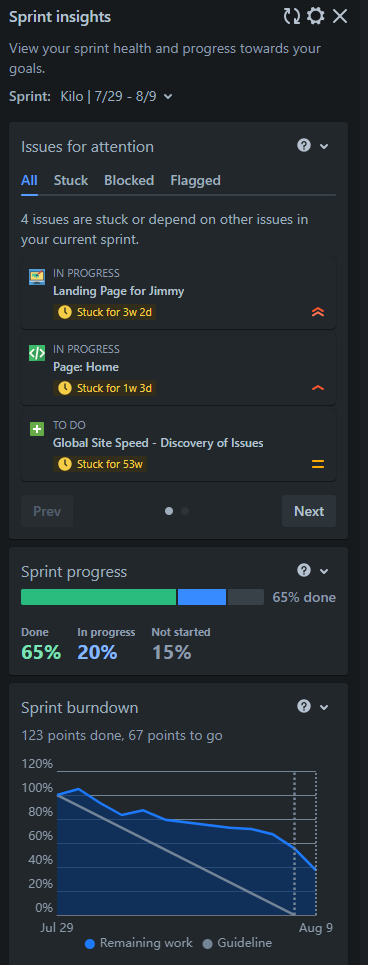

Here is board 1, and the insights showing for the sprint:

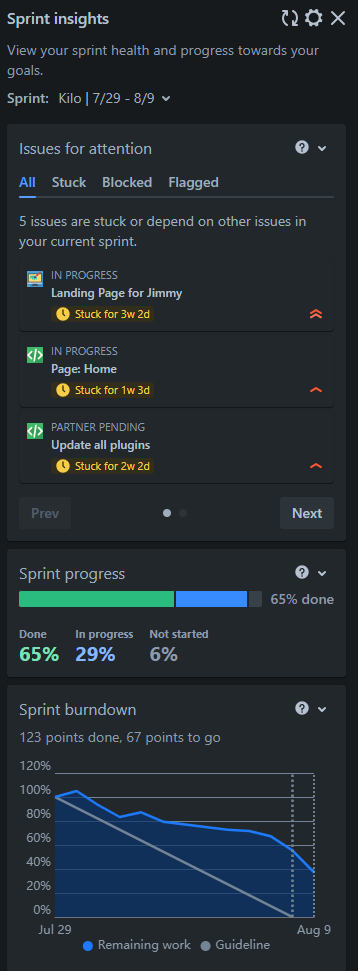

And here's board 2, and the insights showing for the same sprint:

As you can see, the percentage for "Done" is the same but it's showing 20% "In Progress" on board 1 vs 29% "In Progress" on board 2, as well as 15% "Not Started" on board 1 and 6% "Not Started" on board 2.

Can anyone help us out? I'm hoping this is just a dumb question with a quick answer.

Trudy P Claspill · Answer

The data in your boards would have to be analyzed to confirm, but yes, that could explain the discrepancy.

I would be interested to hear from you if do the analysis and confirm or refute that is the actual cause in your case.

Alex King_tw1i4j · Answer

Ah, interesting. No, the two boards have different status/column mappings. You're saying the difference in Insights is linked to that discrepancy? It makes sense.

Trudy P Claspill · Answer

I could be wrong. I don't work much with Insights.

I did a simple test.

I added 2 issues to a sprint, started the sprint, and transitioned one issue to done. I then created a saved filter to retrieve just the one done issue, and made another scrum board from the saved filter. The board status/column mappings are identical. The boards use Story points for estimation and the referenced project is Company Managed.

The Sprint Burndown chart in Insights was identical between the two boards as was the Sprint Progress.

I then set a Flag on the not-done issue.

In the board where that issue is displayed, the Insights showed that as an Issue needing Attention issue. In the board where that issue was not included, the Insights showed no such issues.

So, there is one difference.

Then I change the status to column mappings. When you look at the estimation summary bubbles in the backlog, Jira sums those up as follows:

gray - the items in the left-most column only, regardless of status

blue - all the middle columns, regardless of the actual statuses mapped

green - the right-most column only

I took a gray status from the left-most column and moved it to the center column. That resulted in changing the Sprint progress display between the two Insights views. The Sprint Progress insight seems to match the estimation summary that appears in the backlog as far as which items are counted in each category.

Do you two boards use the exact same status/column mappings?
