Automating creation of Sub-tasks on completion of multiple existing Sub-tasks

Marcus Burnett

Hi,

My current workflow is like the below:

When creating an Issue (in this instance Issue Type is 'Test Issue') for a Project, I have an automation currently configured to automate the creation of two sub-tasks within that Issue (in this instance named 'Subtask1' & 'Subtask2')

However, I also want a second automation configured. This automation should create 'Subtask3' & 'Subtask4' once BOTH 'Subtask1' & 'Subtask2' have been completed (in our instance this Status has been set as 'Closed'.

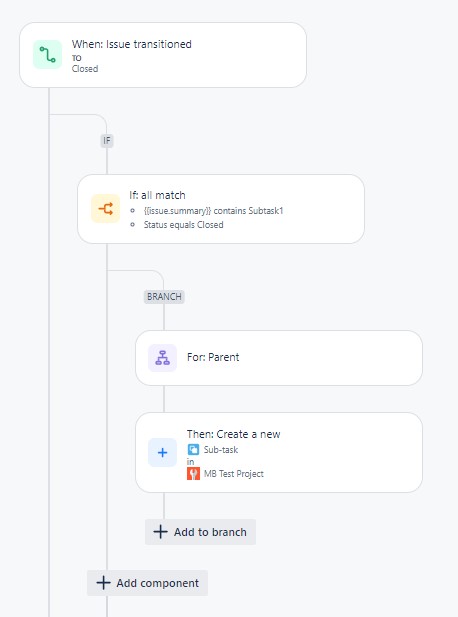

I have been successful in creating a Subtask when a single Subtask has been Closed, using the below automation;

Single Subtask Creation.jpg

However, I can't figure out how to configure the automation when it comes to closing multiple Subtasks in order to trigger the 2nd automation to create the next Subtasks.

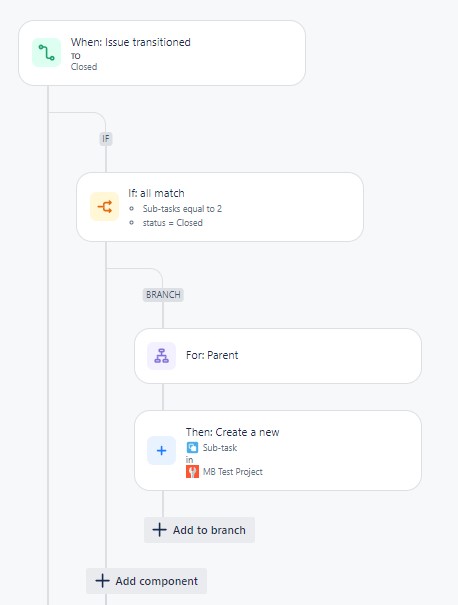

I attempted to follow https://community.atlassian.com/t5/Jira-questions/How-to-automatically-create-a-sub-task-when-other-two-sub-tasks/qaq-p/2343674 but didn't appear to have the same options to select from, that had been suggested in the comments. So, I ended up with the below automation (which isn't running at the point that I close 'Subtask1' & 'Subtask2');

Failed automation for closing multiple Subtasks.jpg

I presume I've misunderstood a step, or have entered something incorrectly, but just can't get the automation to work. Any help would be great! Thanks

Accepted answers

Kalyan Sattaluri_iinm1n

Hello @Marcus Burnett

Can you explain your requirement in more detail. Is it like below?

If you have 1 existing sub-task, which when closed, you want to create a second sub-task.
When the 2nd subtask is also closed, (so all are closed), you want to create a third one?

What happens if the third is also closed, you want to create fourth or stop with 3?

I dont think you need a different rule, all of this can be handled in 1 rule. so Please clarify your ask.

All comments

Kalyan Sattaluri_iinm1n

Hello @Marcus Burnett

Can you explain your requirement in more detail. Is it like below?

If you have 1 existing sub-task, which when closed, you want to create a second sub-task.
When the 2nd subtask is also closed, (so all are closed), you want to create a third one?

What happens if the third is also closed, you want to create fourth or stop with 3?

I dont think you need a different rule, all of this can be handled in 1 rule. so Please clarify your ask.

Marcus Burnett

Hi @Kalyan Sattaluri

Thanks for your reply.

No that is not quite what I need.

The first 2 subtasks need to be created together, when the Issue is initially opened.

I need the 3rd & 4th subtasks to be created once BOTH the 1st and 2nd subtasks have been closed. If only 1 of the first 2 subtasks is closed, then the automation shouldn't run until the 2nd subtask has been closed as well. These subtasks will likely be closed at different times, so I need to wait until both have been closed before the 3rd & 4th subtasks can be created.

I may need to create other subtasks after the 3rd & 4th subtasks have been closed, but at the moment my main concern is getting the above automation to work.

I hope that makes sense!

Kalyan Sattaluri_iinm1n

Assuming that the creation of the first 2 sub-tasks at the point of issue creation is good/ you have implemented,

You can create the subsequent third/fourth based on your requirement like below:

Your trigger will check "Issue Transitioned" to Done.
if so, you check if the trigger issue a sub task
if so, you check if count of sub-tasks is 2
if so, you check if all are in Done state.
if all conditions match, you can create your next subtasks.

The syntax to check if all subtasks are done is:

{{#issue.parent.subtasks}}{{#if(not(equals(status.name,"Closed")))}}true{{/}}{{/}}
DOES NOT CONTAIN
true

*NOTE - The bolded part in above needs to be changed to your final/terminal state of Sub-tasks and it has to match exactly. That is, closed != Closed. So please confirm that.

Please implement above, try it and share if issues. Thanks!

Marcus Burnett

Hi @Kalyan Sattaluri

I think this has worked! On closing the first 2 subtasks, a 3rd subtask has been created.

I need to do some further testing that this works for the Project I'm configuring, as there are a number of other similar automations required for different Issue Types and Subtasks, but I think this should be what I need.

Thanks a lot for your help!
