Help branching an automation rule

dave.drexler

Hi folks - looking for some help designing a rule that is triggered by a change to the Sprint field on a Story, and then transitions the Story's Epic's parent.

We have a structure in which Epics in project-A roll up to parent Sub-initiatives in project-B.

I want to transition the Sub-initiative to 'In Progress' when any Story in any child Epic of the Sub-initiative is added to a sprint.

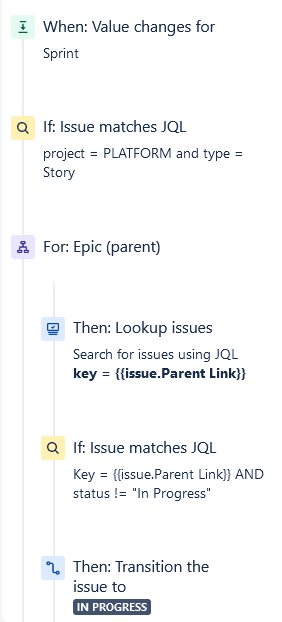

Here's what I have that's not working. I suspect the problem is with the final action which is probably trying to transition the Epic, not the Epic's parent. But because I can't add a branch under a branch (I think - the UI doesn't seem to allow it) I don't know how to point the action at the Epic's parent.

According to the log, the Lookup step is working and finding the correct parent Sub-initiative.

Any help would be appreciated!

Accepted answers

Mark Segall

Hi @dave.drexler - Correct. Your branch is currently on the Epic rather than the Sub-Initiative. I would make the following adjustment to your rule:

Add a variable after your first condition:
- varEpic
- {{issue.Epic Link}}
Change your Branch to JQL
1. Key = {{varEpic.Parent Link}} AND status != "In Progress"
Remove the Lookup Issues and JQL condition within the branch

I think this will work.

All comments

Mark Segall

Hi @dave.drexler - Correct. Your branch is currently on the Epic rather than the Sub-Initiative. I would make the following adjustment to your rule:

Add a variable after your first condition:
- varEpic
- {{issue.Epic Link}}
Change your Branch to JQL
1. Key = {{varEpic.Parent Link}} AND status != "In Progress"
Remove the Lookup Issues and JQL condition within the branch

I think this will work.

dave.drexler

Hi @Mark Segall - thanks. I definitely owe you a box of donuts.

I updated my rule per your advice, but it's giving me an error regarding the branching JQL. The error message seems to ignore the defined variable/smart value ("(Key = AND status != "In Progress")"). Says "Expecting either a value, list or function but got 'AND'", which doesn't make sense.

I've defined that variable like so:

Mark Segall

Wasn't sure if the variable approach would work. Let's try this instead:

Replace the variable with a Lookup Issues Action
- Key = {{issue.Epic Link}}
Then update the JQL in your branch to this:
- Key = {{lookupIssues.Parent Link}} AND status != "In Progress"

dave.drexler

Thanks, @Mark Segall ! That worked great.
