Edit Step ID in workflow?

Nick Elms

Hi there,

Question: Wondering if there is any way to edit the step IDs within a built workflow?

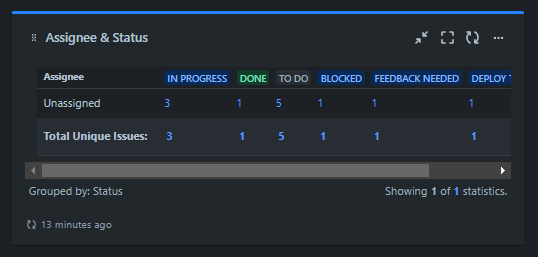

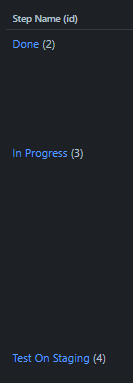

Reason: I have started building out a dashboard and using the 'Two Dimensional Filter' to show one variable (y axis) and then separate out by status (x axis). However, the statuses are appearing in a seemingly random order, but digging into it, it looks like it is sorting by these pre-filled Step IDs in the workflow. Hoping to change the step IDs so that it orders the statuses based on the natural order of our workflow.



Any help much appreciated!

Nick



Nic Brough -Adaptavist-

Welcome to the Atlassian Community!

That's a very deep insight for someone "new to Jira" (that's a guess on my part - Community says your account is new), but yes, it's all to do with the IDs.

There's no way for a gadget to judge the workflow, especially when you've got more than one to report on, so it reverts to using the IDs in the database.

I don't think it uses step IDs, because workflows could be using the same step ID for different purposes, my experience is that it is the (global) status ID.  For company-managed projects at least, I can't talk about the data behind team-managed projects.
