Automation for Linked Issues

Question

Hi Community,

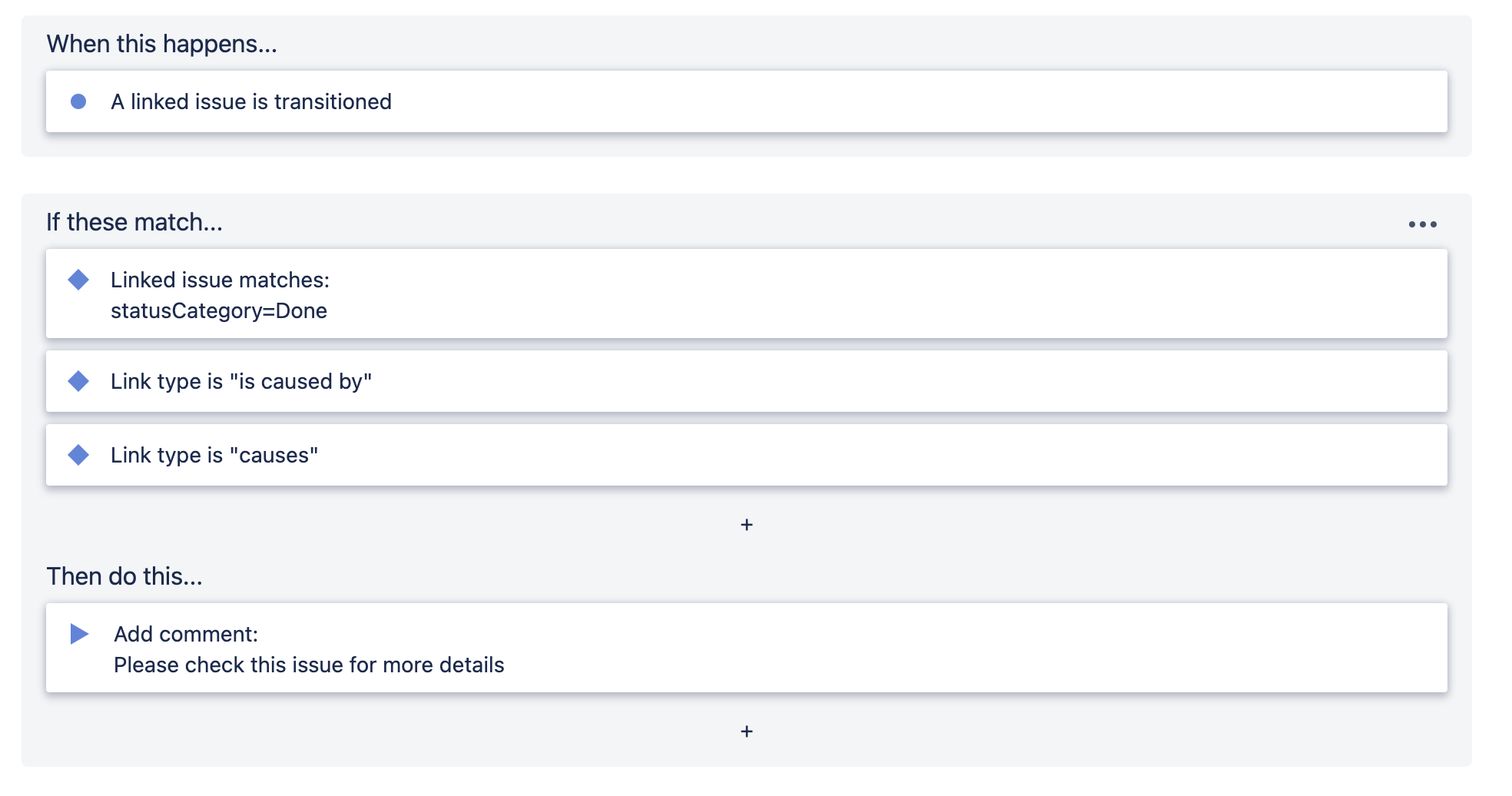

I'm trying to figure out the best way to kinda "replicate" this type of legacy automation to non JSM project

The Target is, on a Software Project Issue, when a linked issue is transitioned to "Done" a comment is placed on the main issue.

I noticed that one way is to have automation in "all involved projects" on transition and update linked issues with a comment, but besides the need to have one automation for each project, the scope is only for that project, and don't drop comments if the linked issue is in another one.

Asking for any ideas on this or if its even doable

thanks

Nuno Pimenta (ADM) · Answer

Thank You Patrik! Works like a charm!

I have added an extra condition, so it will check all linked issues, and only drop a comment when the last one is done.

Patrik Korovsky · Answer

Happy to help, @Nuno Pimenta (ADM),
Yes, you are right. The Global Automation rule would apply to all projects in your Jira instance. However, it does not mean it will affect all the issues in all projects unless they meet the rule criteria.

Adjusted for your goal

'I have a Project A that can cause linked issues in Projects B, D, F, and Z, when these linked issues get transitioned to done a comment is placed in Project A main issue (your suggestion on only causes makes sense).'

Your requirement suggests that is caused by should be used, not causes as you want to add a comment to Project A issue (is caused by = Main Issue) not Project B, D, F or Z. When working with linked issues you have to understand that we are running the automation from the trigger issue (Project B, D, F, or Z = is caused by A) on the destination (Project A cause).

I would also suggest that when the main issue in Project A is resolved, you should consider adding a comment on the linked issues in Projects B, D, F, and Z. Especially if resolving the main issue in Project A unblocks or affects the linked issues in some way. This would mean using causes when the Project A is transitioned do Done. This is not accounted for in the automation below (I stuck to your requirement in your previous comment).

Here is a rewritten automation to suit your needs:

* When: Issue transitioned to 'Done'
* Issue fields condition: Field 'Project' + Condition 'is one of' = Value "'Project B' 'Project D' 'Project F' 'Project Z'"* Branch rule / related issues: Type of related issues 'Linked issues' + Link types 'is caused by'Issue fields condition: Field 'Project' + Condition 'equals' = Value 'Project A'
* Comment on issue 'Comment' (I suggest: 'The Caused linked issue has been resolved: {{triggerissue.key}}')

* Branch rule / related issues: Type of related issues 'Linked issues' + Link types 'is caused by'* JQL condition: JQL 'project = "{{triggerIssue.project.name}}"'
* Comment on issue 'Comment' (I suggest: 'The Caused linked issue has been resolved: {{triggerissue.key}}')

The 3. component ensures that comments are only added to Project A's issues, even though the automation runs globally.

The 4. component extends the automation to add a comment to issues within the same project when linked issues are resolved.

Projects that are neither A or the same as the trigger issue have no actions performed against them.

Please also consider the following

* Handling Other Transitions: The automation rule currently only covers issues that transition to 'Done'. If there are other important transitions in your workflow that you would like to track, you would need to modify or duplicate this rule to cover those transitions.
* Handling Different Link Types: If there are different types of issue links you use within and between projects, you may need to create different rules or modify this one to handle those different link types. This would require adding additional conditions to check for the specific link type.

I hope this helps!

Let me know if you need further clarification.

Nuno Pimenta (ADM) · Answer

Thank You for this Patrik!

Quick question, being in the Global Automation, this will be applied to all Projects that have linked issues?

asking because the goal here is,

I have a Project A that can cause linked issues in Projects B, D, F, and Z, when these linked issues get transitioned to done a comment is placed in Project A main issue (your suggestion on only causes makes sense).

But this only for Project A, all other projects inside the Jira environment should have this implemented for their issues.

thanks!
