Automation from a service desk issue to a linked issue

Linda Korpås_8ied8x

I have tried to find the answer here in the community and tested some automations but I don't get it to work.

I have created a service desk project where request can be created using the portal but where the issue will be managed in a sw project.  I have managed to create an automation for a linked issue to be created in the sw project. So far so good. But now I would like the two issues to share some information and here is where it stops for me.

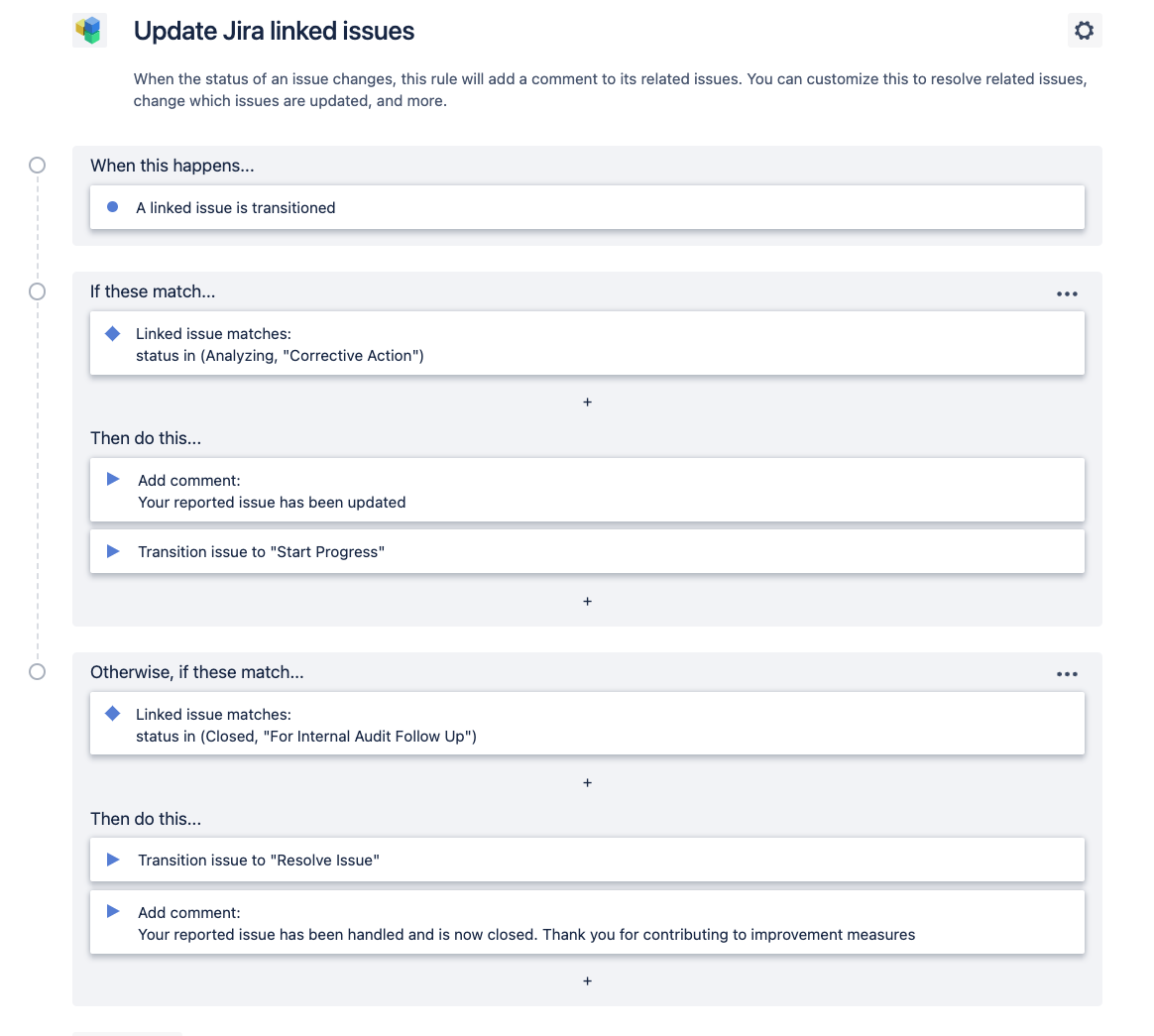

1 - Update status: I would like the status of the original issue created in the service desk project to be updated when the status is updated for the issue in the sw project. I have tried but not succeeded. I have set up rules in the service desk automation using the Legacy automation section but this is probably incorrect since I don't get it to work. See picture of my attempt. I have also tried to set it up using the "normal" automation but haven't succeeded. All automation attempts have been performed in the settings for the new service desk project.



2 - Share comments - I also would like to have any comments added to the issue in the portal to be copied to the linked issue in the sw project and vice versa. Can anyone share how this is done?



Feeling hopeful!

Thanks in advance



Trudy P Claspill

Hello @Linda Korpås

It is possible to synchronize the statuses with the "normal" Automation Rules feature.

Because you will be looking for changes to issues in the software project and wanting to update issues in the service project the rule will need to be a Global rule. The Scope of Projects for the rule will need to be set to include both the software and the service project.

Note there are limits on free Global Rules. Standard Jira subscriptions are permitted only 500 Global/multi-project rule executions per month for free.



Start with a Trigger of Issue Transitioned.

Follow that with a Condition that the trigger issue is in the software project, since you want this to be a one-way update.



Next add a For Branch / Related Issues / Linked issue step. Do you have a unique link type that you are using between the software and service issues? It would make things easier if they do because then you can select the link type and know you will affect only the linked Service issues.



If you don't use a unique link type between the software and service issues, then the next thing you want to add is Condition(s) to select only the Service issues you want to affect.



Do you use identical issue Status values for issues in these two projects? Do you use identical workflows?

The next step would be to add a steps to transition the Service issue. However, the exact steps could be complicated by the answers to the above two questions. If you use the same status values you can use the Transition Issue action and use the option to Copy from Trigger Issue.

If you don't use identical Status values then you may want to create separate rules where you specify in the Trigger the status to which the Software issue is being set. Then is this step of copying from the Trigger issue you would select the specific Status value for the Service issue that is "equivalent" to the status of the Software issue. Creating separate rules would allow you to keep each rule simple versus trying to code if/else steps to cover the different combinations.

Another thing to consider is if the Service issue will be in a status that will allow a transition to the desired status, the Transition doesn't have a Transition Screen, and the Transition doesn't have any Conditions or Validators that might prevent the transition from completing.



---



For copying comments you would do a similar rule.

The Trigger would be Issue Commented.

Instead of the Transition Issue action you would use a Comment On Issue action.

You can use smart values to get the details of the Comment that triggered the issue and insert those smart values in the Comment field of this action. You can see examples of the attributes that can be used with the Comment object here. So, for instance, if you wanted to copy the body you would use {{comment.body}}

You would want two rules for comments; one that would use the conditions shown above to copy comments from the Software issues to the Service issues, and one where the conditions are swapped to copy comments from the Service issues to the Software issues.
