Listing all Child Issues of a Parent Linked Issue

Vitor Prado_vvjzs9

I'm using Automation in Data Center to create issues and link them as child to an initiative using the "Parent Link" field.

To work further with the automation, I need the be able to access the list of these Child Issues from the Parent using Smart Values.

When working with Subtask rather than Child Issues, I'm able to do that with "issue.subtasks", is there something similar to get all the Childe Issues?

So far, I was able to achieve in JQL using "issue in childIssuesOf("parentkey")", but I need to retrieve the Child Issues with Smart Values.

Is it possible at all?

____

The main reason I need this is because I need to find specific child issues, by it's summary, so a can link it to another child issue. I was doing this using a Task and Subtask structure, and it worked, but now I have the need to do the same using Child and Parent relationship.

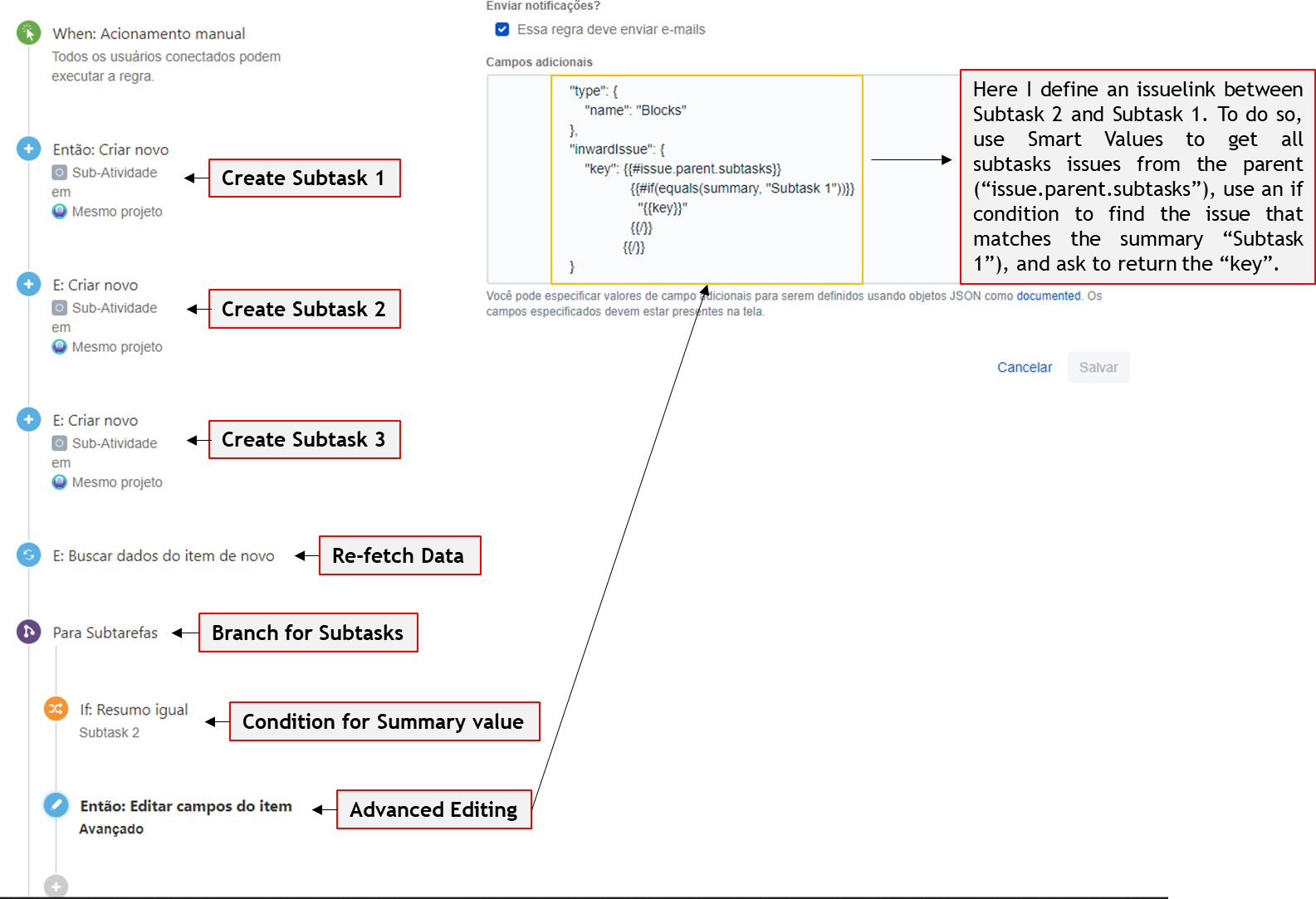

This is an example of how I've achieved it using Task and Subtask:

So I pretty much need a substitute for "issue.parent.subtasks" when using a Child / Parent relationship (from the Parent Link field).
I've tried to use the "Link Issue" componente from automation, but couldn't figure out how to do so.
I'll be working with several child tasks, so I'm creating this automation to set dependency links between them, and one task could have multiple dependencies.

Thanks in advance!

Accepted answers

All comments

Trudy P Claspill

Hello @Vitor Prado

Can you show us the rule you have constructed so far?

It is possible to use smart values in JQL statements in Automation rules.

Vitor Prado_vvjzs9

Hi @Trudy P Claspill

I've just edited the original text and included an example of what I'm working on, and what I'm trying to achieve.

Though I've figured how to get the results I need with JQL, I couldn't find anywhere in Jira Automation that I could use JQL to filter the issue that I want to be linked to the trigger issue of the branch.

Thanks!

Trudy P Claspill

Hello @Vitor Prado

Caveat: I don't have a Jira DC instance to work with to look at screens or test suggestions. I'm just going from what I can find in the documentation.

It would be helpful if you showed us the automation rule you are using for your initiative/child issue action.

If I extrapolate from your Task/Subtask example then I think your rule would be something like

Trigger: Manual trigger from the Initiative issue

Actions: Create child issues, setting the Parent Link to the trigger issue

Action: Refetch Data

At this point you would add a Branch and select Created Issues for the Related Issues option. Use the JQL statement you have discovered as a condition for the branch to retrieve the child issues of the initiative.

https://confluence.atlassian.com/automation/branch-automation-rules-to-perform-actions-on-related-issues-993924648.html

What exactly do you want to do with the child issues of the Initiative?

Vitor Prado_vvjzs9

Hi @Trudy P Claspill

I think there's a few differences in Automation between Cloud and DC, for example on Cloud there is the "lookup issues" functionality and the possibility of create variables, which are not available on DC, and could be very useful for my implementation.

You are right, I took the same steps when working with the initiative/child structure. As follows:

First creating the child issues, using json and smart values to fill the "Parent Link" field with the trigger issue key:
Then, creating a branch with the mentioned JQL, and adding condition to execute an action on a specific child issue:

I simply need to create a link between specific child issues. In the example, I would like "Child 2" being blocked by "Child 1". But the problem I find is that the linking action in Automation will only let me link it to the las created issue or the trigger issue. I will have multiple links, working as dependencies, that's why I needed to "look up" for all child issues and check the ones that match my condition to create the link. I'm able to to that in the subtask structure, because I can use json and smart smart values to get all the subtasks of the parent ("issue.parent.subtasks") and create the link. I can't find something similar to get all the child issues, other than the mentioned JQL, and neither can I have a branch inside a branch, which would probably solve my problem as well.
