Table Transformer - Format row background colour if its from T1, T2...Tn

Aleks Irinics

Hi all

I am new to SQL and Table formatting, and paving my knowledge but got stuck with the following:

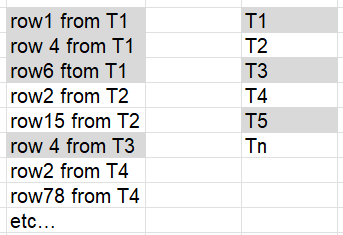

I collating information from multiple tables (around 40) into a single one based on the condition (pretty simple so far). However, I realised as the result table will be quite big, it would be helpful to identify information coming from input tables. I am looking for something like this (see excel example). So Odd tables are highlighted and even are kept as is.

Any help if appreciated. Thank you very much.

Aleks

Natalie Paramonova _Stiltsoft_

Hi @Aleks Irinics ,

To color rows coming from different tables, we may suggest adding an optional column to every table indicating its belonging. For example, name it as a “Source table” and put the T1, T2, T3,… Tn in the cells.

Then you may merge/transform the master report with the first Table Transformer macro and then use the second Table Transformer macro to color your rows based on the contents of the “Source table” column. And don’t forget to use the Table Toolbox to nest macros as your hosting is Cloud.

Here is an example how to color background based on conditions.

Then you may use the Table Filter macro (again inside the Table Toolbox macro) and hide the unwanted “Source table” column.If this is not the case, here is an example of an alternative row coloring that may also help to make your big tables easy-to-read:

SELECT
FORMATWIKI("{cell:bgColor=" + 'Color' + "}", 'Description', "{cell}") AS 'Description',
FORMATWIKI("{cell:bgColor=" + 'Color' + "}", 'Additional notes', "{cell}") AS 'Additional notes',
FORMATWIKI("{cell:bgColor=" + 'Color' + "}", 'Source', "{cell}") AS 'Source'
FROM
(SELECT *,
CASE
WHEN 'Row No.'%2 = 0 THEN "#DEEBFF"
ELSE "white"
END AS 'Color'
FROM (SELECT *, ROWNUM(*) AS 'Row No.'
FROM T1))

Hope this helps.
