Why can't I see my stories due dates in the roadmap graphic?

Daniela Rodas

I have just created a new project, defined my epics and created stories.

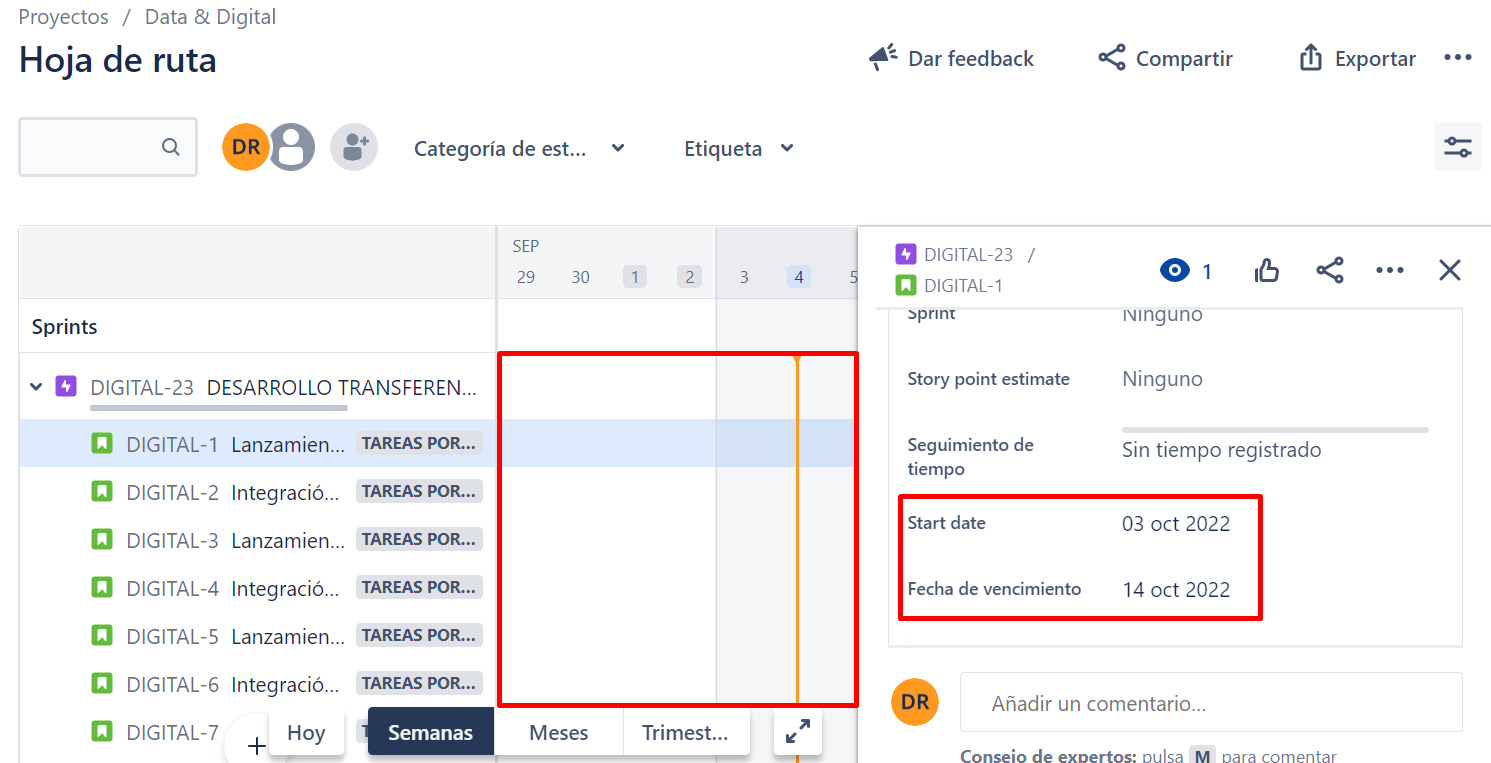

I detailed the stories start' and due dates, but when I go to roadmaps, that doesn't show in the graphic. (I'm trying this on a free plan, but I have other projects in here that shows the dates in the graphic).

I have checked on settings, and I don't find somewhere else where I could set something else.

Thank you so much for your help.

Accepted answers

All comments

Trudy P Claspill

Is this for a Team Managed project or a Company Managed project?

Is this a Software project?

Is it a Scrum board or a Kanban board?

For a Scrum board, per the documentation

https://support.atlassian.com/jira-software-cloud/docs/what-is-the-roadmap/

"Child issues in Scrum projects are scheduled using the dates of the sprints to which they’re assigned"

Daniela Rodas

Thank you for your answer and the documentation. I've checked it, added sprints, and still it doesn't show as it does in the epics.

It's a software project.

Scrum board.

Trudy P Claspill

Showing the time bars for child issues is a feature that needs to be turned on for the Roadmap for that board.

When viewing the board click the ... button in the upper right corner.

Select "Board Settings" if it is a board for a Company Managed project. If it is a board for a Team Managed project select Configure Board.

For a board for a Company Managed project the center pane will show a list of areas of the board you can configure. For a Team Managed project the information is displayed in the left side navigation pane.

Select Roadmap.

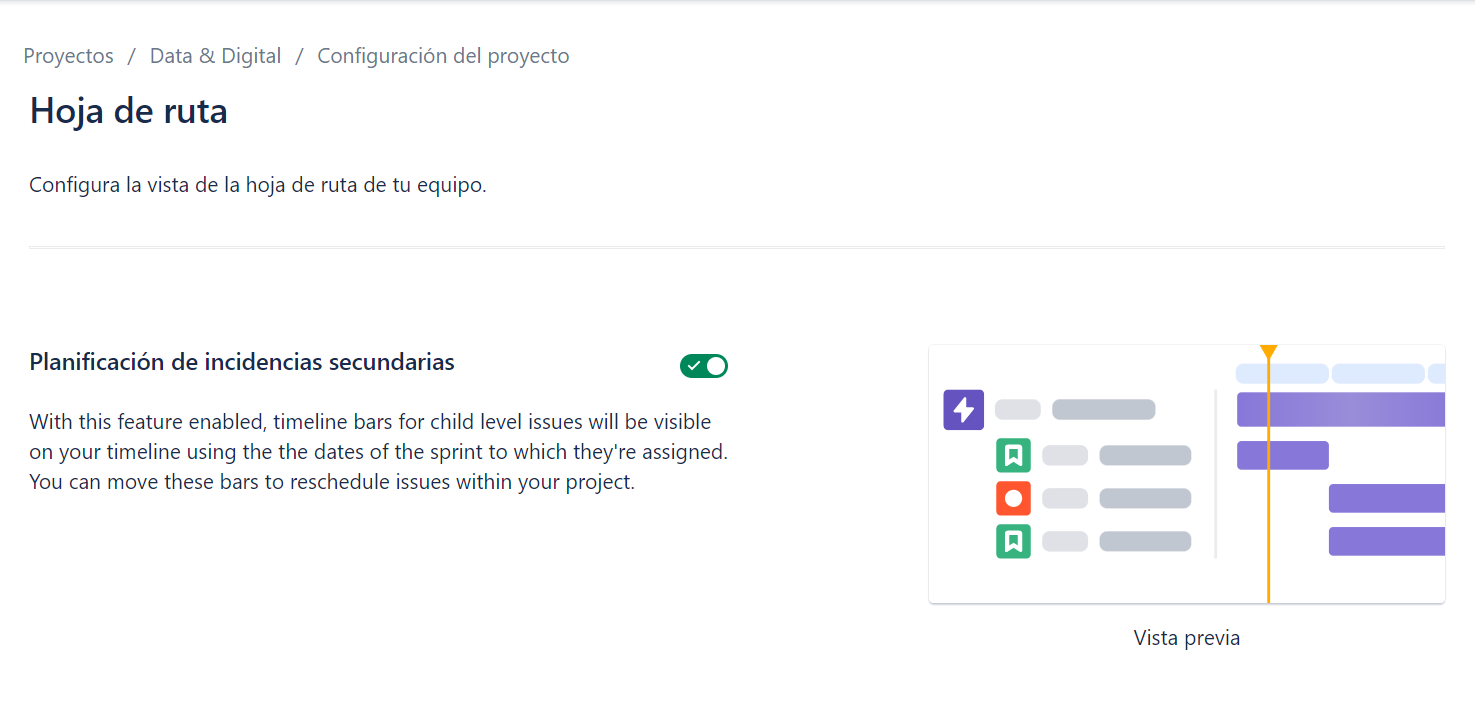

You should then get a screen that shows a toggle option labeled "Child level issue scheduling". Make sure that is on.

Screen Shot 2022-10-07 at 10.19.10 AM.png

Daniela Rodas

Thank you, Truddy.

I have checked it and it's already on.

I started a new sprint and I can see time bars for child issues only for the sprint that's on. I'll keep searching on what I can do with the next child issues.
