insight external import - how to patch import mapping with reference attributes ...

ian_saw77s

Hello. I'm struggling my way through trying to create an external import using the info here:

Insight external imports workflow (atlassian.com)

External Imports - Schema and mapping (atlassian.com)

Finally got the import working until I introduced reference attributes. I've updated the schema JSON but when I PATCH using the updated JSON schema I get this error:

{"jsonValidationErrors":[],"dataValidationErrors":[{"code":"REFERENCED_OBJECT_TYPE_CHANGED","location":"testEmployee.Office"},{"code":"REFERENCED_OBJECT_TYPE_CHANGED","location":"testEmployee.Manager"}],"status":"error"}

This is the JSON schema definition I'm using - if I remove the reference attributes then PATCH works:

{
"$schema": "https://api.stg.atlassian.com/jsm/insight/imports/external/schema/versions/2021_09_15",
"schema": {
"objectSchema": {
"name": "Testing",
"description": "Testing schema",
"objectTypes": [
{
"name": "testEmployee",
"description": "my test employee",
"attributes": [
{
"name": "Name",
"description": "DisplayName of the Employee",
"type": "text",
"label": true
}, {
"name": "FirstName",
"description": "First name of employee",
"type": "text"
}, {
"name": "LastName",
"description": "Last name / Surname of employee",
"type": "text"
}, {
"name": "Office",
"description": "Primary office of employee",
"type": "referenced_object",
"referenceObjectTypeName": "testOffice"
}, {
"name": "Manager",
"description": "Manager of the employee",
"type": "referenced_object",
"referenceObjectTypeName": "testEmployee"
}
]
},
{
"name": "testOffice",
"description": "my test office",
"attributes": [
{
"name": "Name",
"description": "Name of the office",
"type": "text",
"label": true
}
]
}
]
}
},
"mapping": {
"objectTypeMappings": [
{
"objectTypeName": "testEmployee",
"selector": "",
"description": "Import mapping for testEmployee",
"attributesMapping": [
{
"attributeName": "Name",
"attributeLocators": [
"DisplayName"
],
"externalIdPart": true
}, {
"attributeName": "FirstName",
"attributeLocators": [
"FirstName"
]
}, {
"attributeName": "LastName",
"attributeLocators": [
"LastName"
]
}, {
"attributeName": "Office",
"attributeLocators": [
"Office"
],
"objectMappingIQL": "Name = ${Office}"
}, {
"attributeName": "Manager",
"attributeLocators": [
"Manager_DisplayName"
],
"objectMappingIQL": "Name = ${Manager_DisplayName}"
}
]
}
]
}
}

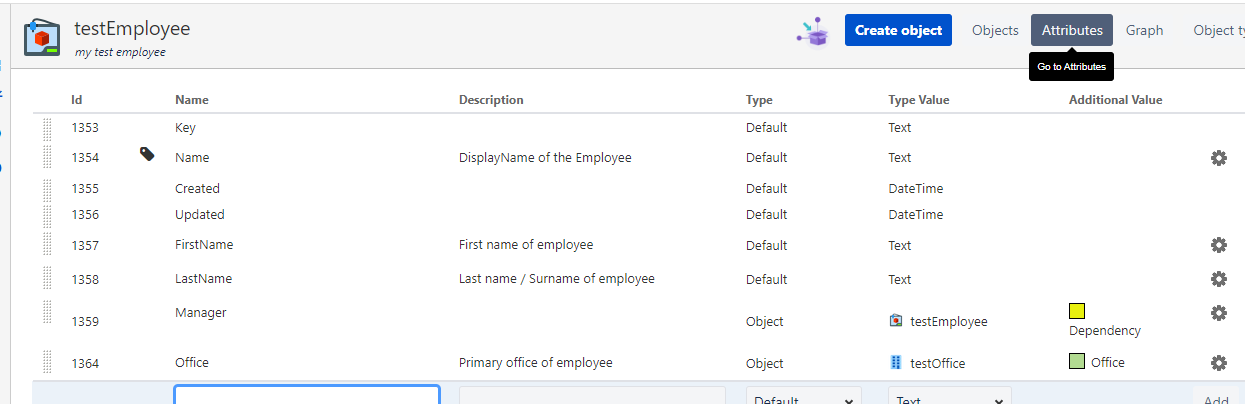

The attributes are defined like this:

I expect I'm not understanding something fundamental but cannot see it at present. Hoping someone else can point me in the right direction.

For reference, I'm using Microsoft Flow to update Insight with information from a SharePoint (Microsoft 365) list. This list consolidates information from various LOB apps. The plan is to schedule this Flow to update Insight regularly.

Thanks.

Ian.

ian_saw77s

Thanks to Support for figuring out that the JSON I was submitting to the mapping was wrong!

If the reference attributes already exist in the schema objectType, then DO NOT include them in the objectSchema section of the JSON but ONLY include them in the mapping section.

If the reference attributes do not yet exist in the schema objectType, then DO include them in the objectSchema section of the JSON.

Here is the JSON file that finally worked for me. Notice that the Office and Manager reference attributes are only referred to in the mapping section:

{
"$schema": "https://api.stg.atlassian.com/jsm/insight/imports/external/schema/versions/2021_09_15",
"schema": {
"objectSchema": {
"name": "Testing",
"description": "Testing schema",
"objectTypes": [
{
"name": "testEmployee",
"description": "my test employee",
"attributes": [
{
"name": "Name",
"description": "DisplayName of the Employee",
"type": "text",
"label": true
}, {
"name": "FirstName",
"description": "First name of employee",
"type": "text"
}, {
"name": "LastName",
"description": "Last name / Surname of employee",
"type": "text"
}
]
},
{
"name": "testOffice",
"description": "my test office",
"attributes": [
{
"name": "Name",
"description": "Name of the office",
"type": "text",
"label": true
}
]
}
]
}
},
"mapping": {
"objectTypeMappings": [
{
"objectTypeName": "testEmployee",
"selector": "",
"description": "Import mapping for testEmployee",
"attributesMapping": [
{
"attributeName": "Name",
"attributeLocators": [
"DisplayName"
],
"externalIdPart": true
}, {
"attributeName": "FirstName",
"attributeLocators": [
"FirstName"
]
}, {
"attributeName": "LastName",
"attributeLocators": [
"LastName"
]
}, {
"attributeName": "Office",
"attributeLocators": [
"myOffice"
],
"objectMappingIQL": "Name = ${myOffice}"
}, {
"attributeName": "Manager",
"attributeLocators": [
"myManager"
],
"objectMappingIQL": "Name = ${myManager}"
}
]
}
]
}
}

For reference:

This was my objectType before creating the import mapping:



And this was the import mapping created using the above JSON:
