Customise swimlanes to prioritize stories

connor_je1o2e

Hey there,

I've been trying to figure out a way to create a Kanban board that displays the tickets associated with a Story. With the Swimlane being the story itself. For example:

Epic: Cool Game (This doesn't necessarily have to be present on the Kanban board)

Story 1: Cool Game version 0.0 (Its own swimlane)

Story 2: Cool Game version 0.1 (Its own swimlane)

Using the board above, it's my goal to be able to assign Bug/Task tickets to the Story and have those tracked through our workflow within the Kanban board. Since the Epic is an evergreen product but continues to receive updates I want to use Stories as way to track the versioning between each update.

Hopefully allowing me to have 1 evergreen Epic, that has X number of versions (stories), and the tickets (tasks/bugs) associated with each version that are visible within the Kanban board when necessary.

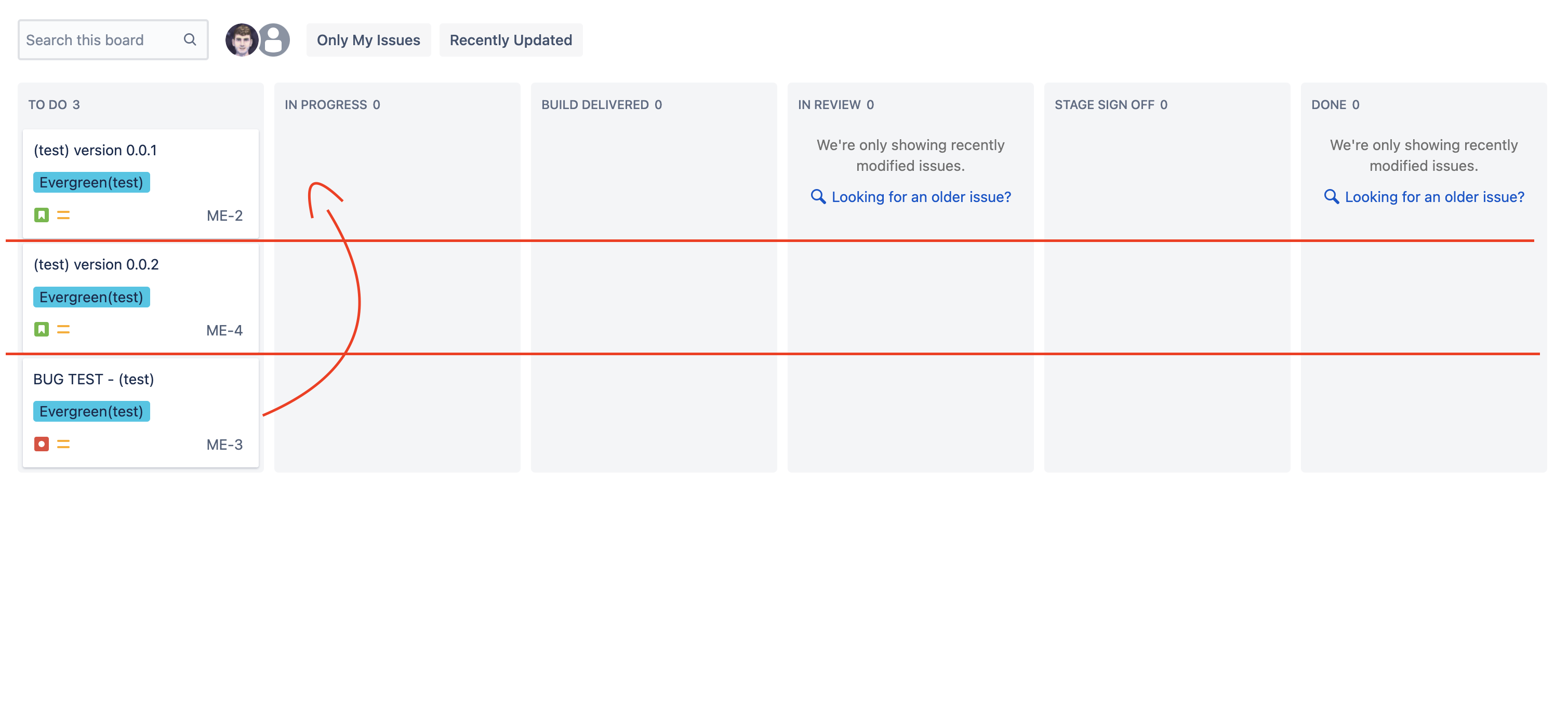

A quick example I threw together below. Where I'm hoping to have BUG TEST appear in the swimlane for Version 0.0.1:

I appreciate any help that can be provided, thanks!

Trudy P Claspill

Hello @connor

The native issue parent/child hierarchy in Jira is:

Epic > general issue types > Sub-tasks

In the "general issue types" level is Story, Bug, Task, etc.

Jira doesn't natively support/recognize a parent/child relationship between issues in the "general issue types" level.

Rather than make the Story represent your version, you could use the Release feature to create Release/Versions. Then in each Story/Task/Bug you could use a custom Version field for Targeted Version, and set that to the version in which you want those items addressed. You could then display your swimlanes based on Targeted Version.

Jira does not have a built in selection for Swimlanes by Version so you would have to construct a JQL query for each version and add them to create swimlanes.
