Hacking/Parsing Automation Rules with JSON for Fun and Profit

Darryl Lee

giphy

Automation Rules can be exported and imported as JSON files, which is useful if you wanted to copy/share rules across Jira instances. But this feature can be exploited for some other tasks probably not intended by the Code Barrel guys.

Some examples, which I've detailed below:

Finding all rules where a user is being set to Assignee or another user field. Very helpful when someone leaves the company. (Thankfully Atlassian saw fit to add a Transfer User option, which lets you replace all references to one user with another. If you need to perhaps do this selectively, then my tips on that might still be helpful.)
Validating repeated elements in rules, like link types.
Cataloging your rules in Confluence.

Some other ideas, not explored here:

Using tools like diff or even Bitbucket to track changes in rules.
Bulk-creating rules based on templates.

Note - this was primarily tested on Automation for Cloud, but Automation for Server/DC also allows export and import of rules.

Tools that you will need:

jq - an incredibly powerful command-line tool that can read JSON files. It can be tricky to learn and use, but is incredibly powerful.
- Installation
- Manual

Optional

JSON Viewer (Chrome extension for viewing JSON files)
- You'll need to enable it to "Allow access to file URLs" to view downloaded rules.
Firefox's built in JSON viewer

Export Automation rules from Jira

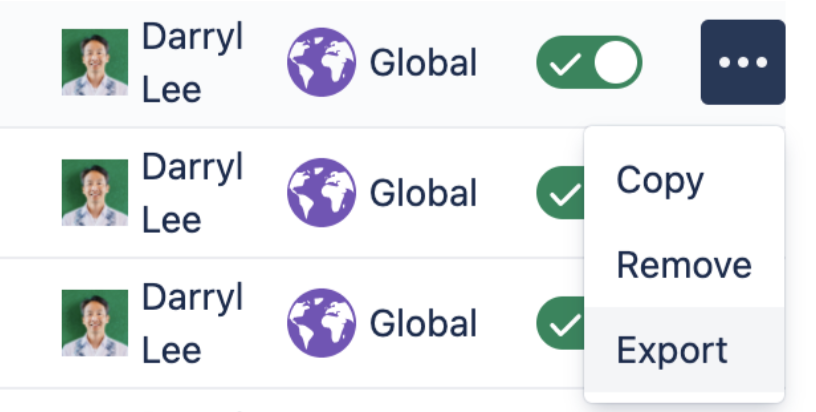

So you can export all of the rules from the global configuration page for Automation (great for backups), but you can also export an individual rule:

Screen Shot 2022-03-26 at 1.46.42 PM.png

Parse Automation Rules

Either way, when you download the exported rule(s) from Jira, they will not have any linebreaks, so it will be very hard to read or edit them. Firefox has a nice JSON parser/viewer built-in, so if you just wanted to read the rule, you could drag it there, or into Chrome if you have the JSON Viewer extension installed.

To parse the file into something editable, you can use a very basic jq filter to reformat the JSON and then write that into a file for editing:

jq . automation-rule-1128847-202009232238.json > nicelyformatted.json

So, within that JSON you can see things like:

"name": "CI -> IN PROGRESS - Create Request (SDES): SAP",
"state": "ENABLED",
"description": "Create SAP Task (ATLAS-1621, ATLAS-1481)",
"authorAccountId": "557058:5...",

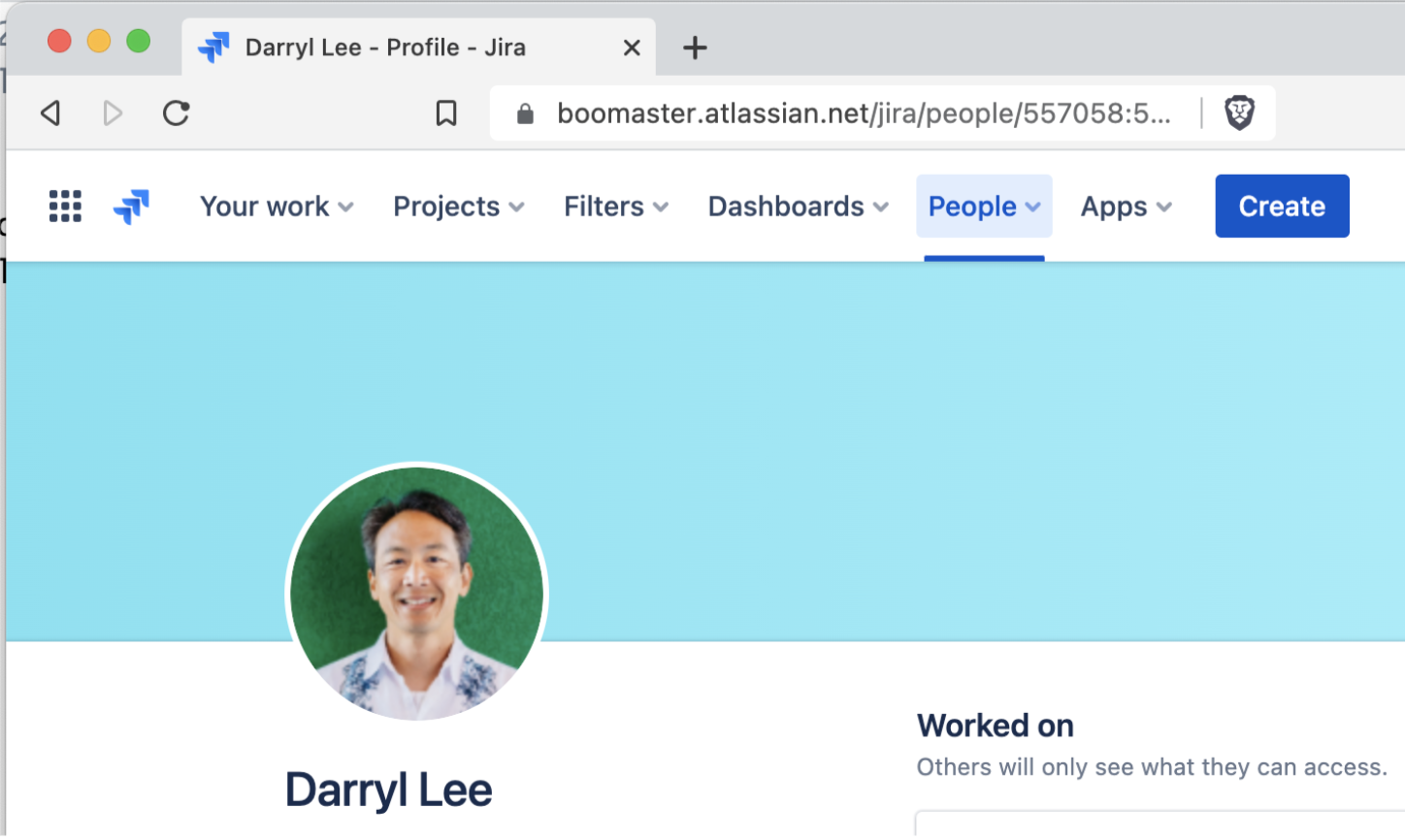

You can look up that AccountId by appending it to the end of your directory URL, like this https://MYSITE.atlassian.net/jira/people/557058:5..., you’ll see that’s me:

Screen Shot 2022-03-26 at 1.46.50 PM.png

You will also see Ids like this for assignee, which is useful below:

Look for an user in all rules

Instead of all the work below, it's probably better to look at the Transfer User feature that lets you do a global replace of a user who has left. It includes a Preview function that will let you see all the rules where a user is currently referenced, and even if you have to reassign rules/user fields to different people, if it's not too many rules, you could probably do it manually.

So, if you can export all the rules, and you can parse those rules, then you can find every rule where a user is set to Assignee. Handy when somebody leaves and you’re not sure what rules they are included in.

There is probably a very elegant way to use jq to walk through the JSON structure and search for assignees, but I’m not very elegant, so I did this:

jq . automation-rules-202008312215.json |egrep '^  "name":|ACCOUNTIDFORKELLY' |less

What that does is print the Name of every Rule, and if it finds the ACCOUNTIDFORKELLY, it prints that too. So you end up with output listing all the Rules, and some of them have that Kelly's account ID, meaning they are referenced somewhere in that rule.

Here’s an excerpt:

      "name": "Auto assign on transition",
      "name": "Balance support load for team",
                  "value": "ACCOUNTIDFORKELLY"
...
      "name": "Offboarding - Sub Tickets Creation",
                  "value": "ACCOUNTIDFORKELLY"
                  "value": "ACCOUNTIDFORKELLY"
                  "value": "ACCOUNTIDFORKELLY"
                  "value": "ACCOUNTIDFORKELLY"
                  "value": "ACCOUNTIDFORKELLY"

If you open those rules up, you’ll see that Kelly is somehow in those rules, as part of a User List for balancing assignments, or as the main assignee for sub-tickets.

Bulk replace an Assignee

Again, instead of all the work above/below, it's probably better to look at the Transfer User feature that lets you do a global replace of a user who has left. It includes a Preview function that will let you see all the rules where a user is currently referenced.

Now, if somebody’s replacement was going to take over all of their ticket assignments, it’s fairly easy to do a search and replace across all the rules in the JSON export with the text editor of your choice, and then import that back into Jira.

Validate Link Types

So maybe somebody has hand-crafted 88 rules(!) each of which can create 5-6 different subtasks. But halfway through creating them, they realized they incorrectly set the link type for each of those subtasks to "Blocked by" (inward link) instead of "Blocks" (outward), and they had to go through the previous 40-some odd rules (by hand) to change the link type (in 5-6 different subtask creation blocks).

And when they were done, they wanted to validate that all link types were properly set.

Well, it would be nice if all of the rules were in the same project, so you could select for just those, but no, these are all global rules. Luckily the creator used a standard naming convention for all the rules (# - SCRXXX ... ), so we can filter that way. Let's get to it:

Ok, let's make sure we're only getting rules that match the naming convention:

jq '.rules[] | select(.name | contains(" SCR")) |.name' automation-rules-202009302350.json

Returns names for 88 rules.

And if we remove the last .name part we will get all the rules. Let's pipe those through less:

jq '.rules[] | select(.name | contains(" SCR"))' automation-rules-202009302350.json |less

So looking inside one of those rules, we see this bit:

          "component": "ACTION",
          "parentId": "22954403",
          "conditionParentId": null,
          "schemaVersion": 9,
          "type": "jira.issue.create",
...
                "field": {
                  "type": "ID",
                  "value": "issuelinks"
                },
                "fieldType": "issuelinks",
                "type": "SET",
                "value": {
                  "issue": {
                    "type": "COPY",
                    "value": "trigger"
                  },
                  "linkType": "outward:10000"
                }

A quick check of the Issue linking confirms that "linkType": "outward:10000" is Blocks

Then it's just a bit of grep goodness:

jq '.rules[] | select(.name | contains(" SCR"))' automation-rules-202009302350.json |grep '"linkType"'|less

And there we have all the linkTypes for all of those rules, and can confirm that they are all "linkType": "outward:10000".

Importing JSON rules

The Import functionality in Automation Rules is pretty smart, in that if it detects a JSON of multiple rules, it will let you select which ones you want to import. Additionally, if there is already an existing rule by that name, it will rename the rule “Copy of…” (although in some recent testing this did not happen.)

Most importantly though, any imported rules are Disabled by default. So you should be able to review them to confirm the new assignee, etc. before enabling the new rule and disabling the one you’re replacing.

Cataloging Automation Rules

csvrules.pl

csvrules.pl takes a full export of Automation Rules and converts it to a CSV with Name, Link, Description, Enabled, Project Key, and Project Name that is suitable for parsing with the Confluence Advanced Tables add-on (hyperlinks Rule Name to the link for the rule.)

It references projects.csv to lookup Project Names by IDs.

I use Bob Swift's CLI to generate that list:

acli --action getProjectList --columns "id,key,name" > projects.csv

But you could also look them up via an API endpoint:

https://YOURSITE.atlassian.net/rest/api/3/project/search

Although if you have more than 50 projects you'll need to do the whole pagination thing. Once you get the JSON though, jq can output it as nice CSV:

jq -r '.values[] | [.id, .key, .name] | @csv' projects.json

Comments

Darryl Lee

I apologize for dumping a pretty dense and technical set of text up there, but this has been sitting around for a while, and I figured it'd be good to at least get the information published in case anybody ends up searching for things like this.

To be clear - learning jq and parsing JSON can be incredibly daunting, and I'm always having to go back to my previous work to figure out/remember exactly what the heck I did.

But if you end up writing complex Automation Rules, being able to have some way to look at them as "code" outside of the editor can be very useful, at least to avoid clicking a bunch of times to see if you set the right link type, or put the correct person as Assignee in every IF clause, etc.

Anyways though, if you have questions about how jq works, or wanted help with parsing your own rules or doing something interesting with them, I'm happy to discuss that in this thread, or you can always ask a question.

Bill Sheboy

Thanks and well done, @Darryl Lee

Still on my wish list: a refactoring IDE with version control native for automation rules edit...making such incremental changes easy and safer. Or a full REST API for rules and then someone can create an addon (such as for VS Code) to improve rule maintenance. One can hope...

Would you consider posting an image of how you catalog rules in Confluence? I went "brute force" to document any convoluted logic with text/images and included the latest JSON export...just in case. Thanks!

Kind regards,
Bill

Darryl Lee

Thanks @Bill Sheboy Yeah I don't know if we'll ever see a full IDE or even REST API for this, although we can dream, right?

ANYWAYS, regarding my rule's cataloging, my little Perl script outputs CSV that looks like this:

Name, Description, Enabled, Key, Project

"[Add lusers | https://YOURSITE.atlassian.net/plugins/servlet/ac/com.codebarrel.addons.automation/cb-automation-project-config?project.key=DELETED&project.id=#/rule/2681068]", "Add multiple users to a custom field, using JSON.", ENABLED, DELETED, ""

"[Add request participants | https://YOURSITE.atlassian.net/plugins/servlet/ac/com.codebarrel.addons.automation/cb-automation-project-config?project.key=HELP&project.id=10001#/rule/1819286]", "", ENABLED, HELP, "HELP"

"[Advanced comparison | https://YOURSITE.atlassian.net/plugins/servlet/ac/com.codebarrel.addons.automation/cb-automation-project-config?project.key=DELETED&project.id=#/rule/2598558]", "Send email if it estimate has exceeded 30 days.", ENABLED, DELETED, ""

Appfire's Advanced Tables for Confluence has a nifty CSV (Comma Separated Values) macro that will convert a CSV to a nicely formatted table. (I'm using wiki markup for the link, so you have to set the Output format to wiki.) and you end up with this:

Screen Shot 2022-03-28 at 1.15.53 PM.png

This is an admittedly a very high-level "catalog", and can only reflect what is in the export file. But once set up, if you add/remove any rules, you can just copy/paste the CSV output by my script and it'll be "updated".

(Yah yah Perl. Anyone out there is welcome to convert it to Python.)

If you need to add additional notes, images, etc., then it probably makes more sense to use this in conjunction with an Excel or Google Sheet which can have supplemental columns/fields for diagrams, and a link to the actual JSON (each rule split out and checked out into a source control system). :-}

Darryl Lee

And speaking of APIs, as previously mentioned, I couldn't even get this endpoint to work for exporting the darn rules:

https://MYSITE.atlassian.net/gateway/api/automation/internal-api/jira/<CLOUD-ID>/pro/rest/GLOBAL/rule/export

(Like, it works from the browser where I have an active session, but I cannot get it working with Bob Swift CLI's renderRequest, which normally lets you "scrape" other types of content.)

I found that endpoint when I select "Export rules" from the Global Automation Rule's UI:

https://MYSITE.atlassian.net/jira/settings/automation#/rule-list?systemLabelId=all&page=1&pageSize=20

When using renderRequest with both of those pages (using an API token, of course), I ended up with what looks like a bunch of SPA (Single-Page Application) code. Bleh.

If anybody else is better versed in scraping content, I'd be much obliged to find a way to automate exporting rules. Perhaps @Bob Swift {Appfire} might have some ideas?

Bill Sheboy

Hey, Darryl.

I would not recommend brute-force scraping this, as the rules UX appears to be evolving. (e.g. It appears an attempt is being made to solve the rules list performance issues with pagination. At least it doesn't hang any longer when I open my test project's rules :^)

Where did you find documentation on that REST API method to get the rules? Perhaps there is something described there to indicate the symptom you are observing.

Darryl Lee

@Bill Sheboy hehe. Documentation? For something in the path internal-api? Unlikely. :-}

But since it does have /gateway/api in the path, I was hoping there was a chance that it could be obtained programmatically.

As mentioned, the URL/method was found by watching the network requests in Chrome when I dropped down the menu and chose "Export rules".

I found mention of "/gateway/api" in documentation for Atlassian's GraphQL API:

https://jdog.atlassian.net/gateway/api/graphql

Somebody else poked around and found another /gateway/api call that allowed them to export users to programmatically export all users to CSV:

https://admin.atlassian.com/gateway/api/adminhub/um/site/<CLOUD-ID>/users/export

Oh, it is very cool that now I know that the KEY in my string is actually my CLOUD-ID, visible in places like the Manage Access screen for Products. I may try modifying the Python script from that page and seeing if it works. :-}

Darryl Lee

Hey hey, this post is nearly a YEAR OLD!

Well, as a pre-birthday present I took a closer look and realized (DOH) that you can programmatically export your rules. I'm just a dummy and was looking at file output instead of the response data.

So then what you want is:

acli --action renderRequest --requestType GET --url "https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURORGANIZATIONID/pro/rest/GLOBAL/rule/export" > automationrules-20230327.json

YOURORGANIZATIONID is what you see when you're inside your Org at https://admin.atlassian.com/

One caveat is that CLI will prepend this bit of text to the output:

Rendered data for https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURORGANIZATIONID/pro/rest/GLOBAL/rule/export

And JSON tools like jq are not really into that. If you're on a Mac or other machine that has standard Unix tools, you could pipe the output through the handy-dandy tail command which can give you all the lines starting with line two. Oh and let's also automatically add the date using the date command:

acli --action renderRequest --requestType GET --url "https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURORGANIZATIONID/pro/rest/GLOBAL/rule/export" | tail +2 > automationrules-`date '+%Y%m%d'.json

Run that on a schedule somewhere, and voilà, you've got automatic backup of your rules! Happy birthday!

Andras M_

Hey @Darryl Lee - I came across this article by chance but saw it had some good points to it. I saw your update from earlier this year. While I've not used Bob Swift's CLI tool, but the command line tool cURL should work to pull the JSON data down.

The rules themselves will be part of the rules array. The following should work and shouldn't write additional data to the JSON file:

curl --location 'https://your-site.atlassian.net/gateway/api/automation/internal-api/jira/{cloudId}/pro/rest/GLOBAL/rule/export' \
--header 'Content-Type: application/json' \
--header 'Cache-Control: no-cache' \
--header 'Authorization: Basic redacted' > automation-rules-$(date '+%Y%m%d').json

The same can be setup using a cross platform tool like Postman.

Additionally jq is a great tool especially when interacting with the Automation JSON export file. I'll share a few queries I've written up to help troubleshoot issues in the past.

Search for automation rules with a specific trigger:

jq '.rules[] | select(.trigger.type | startswith("jira.issue.field.changed")) | select(.trigger.value.actions[] != null)' file.json

In the above example, we're searching for automation rules triggered by Jira Issue Field changes, in this case for rules that have an issue operation (create, edit, assign, transition issues) configured. If the rule was set to listen for all changes to the field, the expectation would be the .trigger.value.actions[] array would be empty (null).

This next one breaks down the enabled rules based on trigger type:

jq '[.rules[] | select(.state == "ENABLED")] | group_by(.trigger.type)[] | {triggerType: .[0].trigger.type, count: length}' file.json
{
"triggerType": "cmdb.object.trigger",
"count": 2
}
{
"triggerType": "devops.deploy.event.trigger:statechange",
"count": 29
}
{
"triggerType": "jira.incoming.webhook",
"count": 3
}
{
"triggerType": "jira.issue.event.trigger:commented",
"count": 9
}
{
"triggerType": "jira.issue.event.trigger:created",
"count": 57
}
{
"triggerType": "jira.issue.event.trigger:transitioned",
"count": 36
}
{
"triggerType": "jira.issue.field.changed",
"count": 14
}
{
"triggerType": "jira.jql.scheduled",
"count": 11
}
{
"triggerType": "jira.manual.trigger.issue",
"count": 70
}

This can be helpful during automation rule audits when completing cleanups or when looking to optimize automation rules, aiming to get a holistic view of the various triggers in use and whether it could be contributing to issues with performance.

This one is fairly simple, it gives a total count of enabled rules based on the export file:

jq '[.rules[] | select(.state == "ENABLED")] |  length' file.json
231

Search for a specific rule actor using Atlassian Account ID:

jq .'rules[] | select(.actor.value == "6edd6ccaaade4a996b9422f2")' file.json

I hope these examples will be helpful, as well as provide some additional examples on how parsing the exported automation JSON file can be beneficial in not only troubleshooting issues but help manage and maintain rules.

Darryl Lee

@Andras M_ thanks for the curl command!

I get so used to using CLI for other things and not having to mess with authentication, I totally forget that for API calls, API Tokens work perfectly fine with basic auth. (I see you included a Authorization: Basic header, but not everybody knows how (or wants to) to base64 encode their userid:token :-).

SO THEN to make it easier, after obtaining an API Token folks could just run this command:

curl --location 'https://your-site.atlassian.net/gateway/api/automation/internal-api/jira/{cloudId}/pro/rest/GLOBAL/rule/export' \
--header 'Content-Type: application/json' \
--header 'Cache-Control: no-cache' \
--user me@example.com:my-api-token > automation-rules-$(date '+%Y%m%d').json

And ah, thank you for more examples of jq. Love that tool!

Steven Vits_rbe6i1

Thank You for this info!

Trying it out using postman but I do get an '403Forbidden' response.

I do Use a service account, a API token and a header Authorization: Basic 'base64encodedToken'

Service account is a org_admin

Not (yet) familiar with jq.

Any ideas what I do wrong?

Andras M_

Hey @Steven Vits

A HTTP 403 error generally indicates a permission issue meaning the authentication was successfuly but the user does not have sufficient permissions to complete the task.

If you are working with the Jira Cloud REST API or Jira Service Management Cloud REST API, make sure the service account has access to the project to carry out the action.

Darryl Lee

@Steven Vits if you're going to use curl, it's much easier to use this instead of dealing with base64 encoding, which can be tricky. So try using this:

--user me@example.com:my-api-token

Instead of this:

--header 'Authorization: Basic base64encodedToken'

If you still get a 403, then you can be assured that it's not an authentication issue, but as @Andras M_ points out, maybe a permissions thing.

Sidenote: I don't think you need to be an org admin to export rules. Maybe Jira site admin is sufficient? But org admin should include site admin perms.

Steven Vits_rbe6i1

@Andras M_ & @Darryl Lee

Thank you for the quick reply's.

I was indeed thinking it has something to do with permissions. Otherwise I would get an other reply than the 403 forbidden.

The suggested user authentication gives the same result.

Do you have any clue where I need to search for the permissions? is there a setup to be done to use the gateway in https://<MySite>/gateway/api/automation/internal-api/jira/<MyID>/pro/rest/GLOBAL/rule/export ?

Darryl Lee

Hi @Steven Vits and @Andras M_

Welp, I just actually tested (sorry for not doing that earlier) and was ALSO getting a weird 403 error. Something changed, and I figured it out.

tl;dr

Original endpoint now uses CLOUD SITE ID instead of ORGANIZATION ID as before:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export
Original endpoint now kicks off export and returns a DOWNLOAD ID:

{"id":"YOURDOWNLOADID","childId":null}
You can hit a "progress" endpoint to see when the export is done:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/task/YOURDOWNLOADID/progress
When the export is done (or if you just wait a minute or two), you use the DOWNLOAD ID in a new endpoint to get the rules in JSON format:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export/YOURDOWNLOADID/download

Details and Methodology

I get a 403 hitting the endpoint I originally posted uses the ORGANIZATION ID as described here.

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURORGANIZATIONID/pro/rest/GLOBAL/rule/export

To test further, I went to https://MYSITE.atlassian.net/plugins/servlet/ac/com.codebarrel.addons.automation/cb-jira-automation-rules

I then observed the Developer Console (specifically the Network tab) to see what happens when I select "Export rules".

AND NOW... it uses an ID different from my organization ID!!

Poking around, I believe the endpoint has changed to now use the Cloud Site ID (specific to the Jira instance).

This can be found by going to https://YOURSITE.atlassian.net/_edge/tenant_info, as described here.

SO THEN, the new endpoint appears to be:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export

Because I can curl that and get a 200 OK response.

BUT WAIT! Unfortunately I do not get a JSON file with my rules. Instead I get:

{"id":"SOMEID","childId":null}

So I think I know what's happening.

In the web UI, selecting "Export rules" triggers some process to actually request the export. There's a little progress bar thingy that moves back and forth, and you have to WAIT, and then the little button shows [Done] and it's clickable:

And when you click [Done], *that* is when the file gets downloaded.

SO... ugh. I guess now Rules are so popular now, it takes a while to export them. The old endpoint "kicks off" the export, but instead of returning all the rules, it returns an DOWNLOAD ID (that's the SOMEID up above) for your rules. Then you need to wait for a bit*, and then use THIS endpoint to actually download your rules:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export/YOURDOWNLOADID/download

I just tested this and got my rules.

So yeah, now you'll need make two curl requests, one to kickoff the export and get a DOWNLOAD ID, and then another one to actually download the rules when it's done.

* If you want to get fancy, you're welcome to write logic that hits this endpoint:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/task/YOURDOWNLOADID/progress

This will return whether the export is done. Here's what happened in my browser with that endpoint:

{taskState: "RUNNING", totalChildItems: 128, totalCompletedChildItems: 0, startTime: 1713573218}
{taskState: "RUNNING", totalChildItems: 128, totalCompletedChildItems: 124, startTime: 1713573218}
{taskState: "SUCCESS", totalChildItems: 128, totalCompletedChildItems: 128, startTime: 1713573218}

** Or... depending on the number of rules you hvae, you could just wait a minute or two and then hit the download endpoint.

Steven Vits_rbe6i1

Hello, @Darryl Lee ,

Thank you for the effort and reply.

I can see what you mentioned by using the developers tool, great hint!

unfortunately using the given endpoints:

I still get a 403 Forbidden.

I do use postman because I do not have the experience to use CURL, My plan is to implemant this in a Power automate flow and save the JSONS in a SP library.

In Postman I have tested with my own account (I do have rights to export global rules) and a service account. I used the 'User' Key and me@example.com:my-api-token value as well as the authorization and basic base64encodedAPIKey.

I hope you can help me out finding out what I am overseeing.

Steven

Darryl Lee

Hi, so I haven't played with Postman for a while, so I downloaded it. Neat!

Under Auth, I chose "Basic Auth" and entered my Username and Token, and this worked:

So with some quick testing I was able to get a 403 if I had the incorrect CLOUDSITEID in the URL. That is probably your issue.

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/CLOUDSITEID/pro/rest/GLOBAL/rule/export

You need to make sure that is right, by following these instructions from How to find Cloud Site Id:

Simply use this url in your browser to find the site id:

https://my-site-name.atlassian.net/_edge/tenant_info

Steven Vits_rbe6i1

@Darryl Lee

Thank you for everything.

I'm missing something here.

I did got the correct cloudsiteID.
I used to use the header itself in the header section, however using basic auth gives me the same response.
when I mess with the token and/or username I do get a 401 Unauthorized letting me assume that my previous values where correct.
is there any authorization I must provide for the service account or the API token?

Andras M_

@Steven Vits

From your screenshot the Body tab has data in it. Please set this to none and try your request again. The API is expecting an empty body and while this is a GET request, Postman will still send the data. This in turn is tripping up the API server that is rejecting the request.

Steven Vits_rbe6i1

You are a legendary heros @Darryl Lee and @Andras M_ !

Thank you!!

Jennifer Luo_t1ahte

Hi, I've also recently started experiencing the 403 error, but I have the correct cloudId. I've noticed that there is now a tenant session token that is added to the Cookie, but if I remove this cookie and try to make the API call again, it fails. Is there any way I can work around this to somehow generate the cookie, or am I doing something wrong here?

automation SS.png

Darryl Lee

Hi @Jennifer Luo - it looks like you're trying to make a call to get a specific Rule by rule ID:

{{url}}/gateway/api/automation/internal-api/jira/:cloudld/pro/rest/GLOBAL/rule/:ruleld

I don't think I've ever explored trying to do that programmatically.

Rather, the endpoints I've been exploring are to download ALL the rules.

This one creates a request to download all the rules:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export

Which returns:

{"id":"DOWNLOADID","childId":null}

And then after maybe a minute, you can use that DOWNLOADID to get the actual rules:

https://YOURSITE.atlassian.net/gateway/api/automation/internal-api/jira/YOURCLOUDSITEID/pro/rest/GLOBAL/rule/export/YOURDOWNLOADID/download

Because I was curious, I took a look at what calls are made when I try to export a SINGLE rule, and this appears to be the correct call (using GET):

{{url}}/gateway/api/automation/internal-api/jira/CLOUDID/pro/rest/GLOBAL/rule/RULEID/export

As always in these explorations, the Developer Panel is your friend. Clicking in the Network tab, I then used the 🚫 button to clear everything, and then I did an Export of a single rule, and you can see the request that is being made:

And that's the endpoint right there at the top.

Jennifer Luo_t1ahte

Hey @Darryl Lee ! Sorry, I had pasted the wrong API call - but the issue was still occurring at the global rule export level unfortunately.

In Postman, if I clear my cookies and try to run the call again, it fails, however it has no issues when the tenant.session.token is there.

It seems like the tenant.session.token still needs to be there in Postman for the call to work, but I don't know if there's a way to programmatically generate that. At the moment I've just manually generated it by grabbing it from the Networks response, but that looks like it will need to be done every month due to it's lifetime.

Darryl Lee

Hey @Jennifer Luo so I completely removed cookies from the situation by using curl, and once again, can confirm that I don't think cookies have anything to do with it.

curl --location 'https://MYSITE.atlassian.net/gateway/api/automation/internal-api/jira/MYCLOUDSITEID/pro/rest/GLOBAL/rule/export' --user MYEMAIL:MYTOKEN

This returned:

{"id":"MYDOWNLOADID","childId":null}

I waited probably about 30 seconds, then did:

curl --location 'https://boomaster.atlassian.net/gateway/api/automation/internal-api/jira/MYCLOUDSITEID/pro/rest/GLOBAL/rule/export/MYDOWNLOADID/download' --user MYEMAIL:MYTOKEN

And I got my rules.

Postman really wants to do a lot of extra "stuff". Like for @Steven Vits it wanted to post something in the Body. Maybe you're sending extra headers that are confusing Jira. You really don't need to send ANY headers, unless you're hand-crafting your Authorization header.

I highly recommend simplifying and removing as much as possible from Postman.

Ok, so I'm trying Postman again. I'm trying Path Variables. Neat!

This is my URL:

https://MYSITE.atlassian.net/gateway/api/automation/internal-api/jira/:cloudid/pro/rest/GLOBAL/rule/export

And I set the cloudid Path Variable to my Cloud ID (obtained from https://MYSITE.atlassian.net/_edge/tenant_info)

And as you can see, I get a successful response with the DOWNLOADID:

Clicking through my tabs...

Auth

I'm using Basic Auth with my Username and API TOKEN (not Password).

Headers

I am not manually creating ANY headers. 7 headers were auto-generated, including Authorization, Postman-Token, Host, User-Agent, Accept, Accept-Encoding, and Connection. But I did not touch any of these.

Body

none

Pre-req., Test, Settings

I didn't touch any of these.

Cookies

I'm not sending ANY. So I would make sure that you aren't sending any cookies, because they should NOT be required for this.

Additionally...as I look at your screenshot, I see you're using {{url}}, but I think because I have not signed up for a Postman account (or didn't bother to see if I already have one), I cannot use "collections, environment, or globals":

I'm reading about Variables and Environments here and hrm, I don't think it puts those anywhere unwanted, but again, my recommendation is to simplify as much as possible. If you're using a collection/environment/workspace whatever, perhaps create a new EMPTY one? Remove all your Cookies. Start as clean as possible and ONLY put in the URL above, your correct CLOUDID, and your Email and Token. That's all I did, and it seems to work.

Jennifer Luo_t1ahte

Thanks @Darryl Lee,

I cleared my cookies without changing anything and it's all working again... definitely a head scratcher. Thank you for all the help troubleshooting!

Welcome!

It looks like you're new here. Sign in or register to get started.

Quick Links

Find more posts tagged with

jira

cloud

jira-cloud

automation
