Marking tasks as done on different stages of the board

Question

Hi all, hope someone can help with this.

We have our board set up with 5 stages, to do / in process / ready to deploy (beta) / ready for review / done.

In order to properly measure our dev teams' burndown, we would need to have issues marked as done once they reach ready to deploy (beta). Issues usually have a waiting time on that stage, until a bunch of them are deployed together. Then our product manager reviews them, and they go back to to do if there are changes to be made or to done when they are good to deploy into production.

So if we use done to mark an issue as completed our teams burndown will be influenced by the task of the product manager, and by the time tasks are waiting just to be deployed.

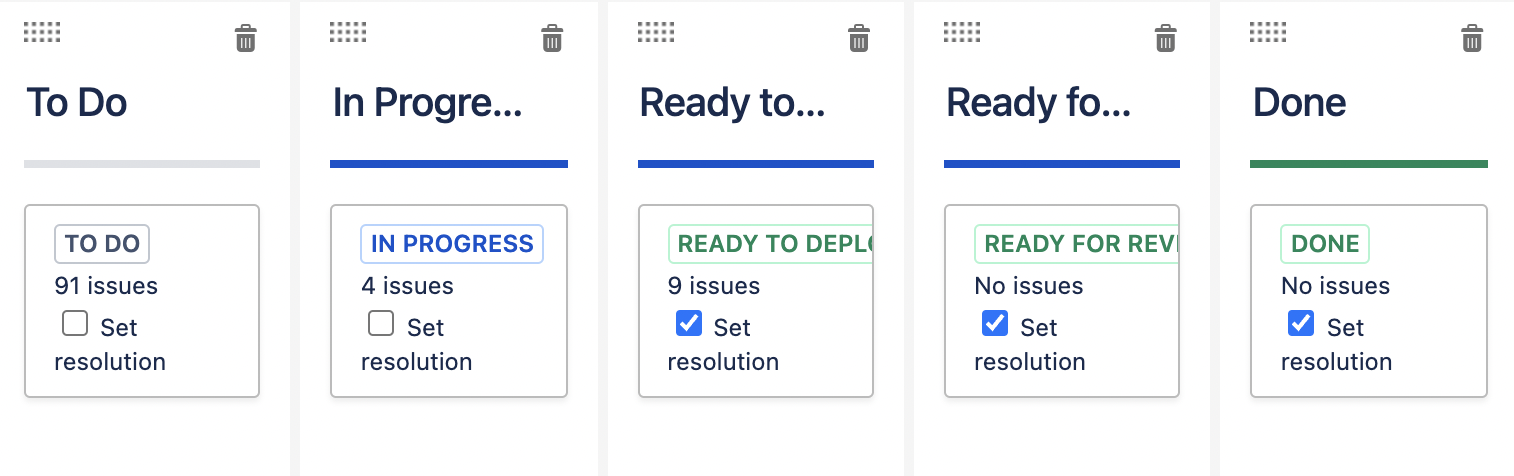

I've configured our board like this, but still can't get issues to be marked as done when they reach ready to deploy.

Although there are 9 tasks done in ready to deploy (we can see them crossed out and marked as done on the board) the burndown chart doesn't recognize them, we still have all the story points from the sprint as remaining.

Any help on how to get this properly configured would be amazing!

Thanks,

Martina Moring · Answer

@Fernando Eugênio da Silva Unfortunately, this doesn't seem to work. Here's our burndown chart

It doesn't register the resolutions, although items have been moved to the ready to deploy (beta) stage. And gone through the transition correctly (you can see the resolution change in history).

Here's our workflow just in case. As you recommended the only transition that affects the resolution is the one from 'in progress' to 'ready to deploy (beta)'. The resolution seems to be working fine as the history of the issue shows. However, this doesn't impact the burndown chart.

Is there any setting on the burndown we should change?

I tried moving the issue to 'done', and that does affect the burndown chart. It is the only stage that affects the burndown since issues are marked as completed. However, I couldn't find a specific function that does this. The 'done' stage doesn't have any specific properties, and the transition doesn't seem to affect that either.

Sorry for the long post, but I can't understand what is marking the task as completed. And how to move that into the 'ready to deploy (beta)' and I want to give you as much context as I can.

Thanks,

Martina Moring · Answer

Thank you! I've adjusted the post functions, and double-checked that only the transition from "in progress" to "ready to deploy (beta)" is the one that changes the resolution to done.

All other transitions won't affect the resolution, unless the issue goes back to "to do".

I created a mock sprint to see if this works. I'll update progress tomorrow, hopefully, it will update the burndown properly. I will let you know.

Thanks!

Fernando Eugênio da Silva · Answer

@Martina Moring

Burndown is affected when the issue meets the value "Resolution", this is the data factor for burndown.

We usually have more access with burndown and this data view when we've completed a sprint.

So I would recommend that if you can create a sprint ghost just to indicate some test issues and fill in the resolution to generate burndown.

About adjusting the post functions, review the following:

Open the flow and click on the transition that will take you to the desired status, then select the "Post functions" option.

A new screen will open and you will need to click "Add post function".

After clicking on "Add post function" search and select the option "Update issue field".

After that, select the field "Resolution" and mark a resolution, in this example it was "Done".

Click ADD and publish the workflow draft.

Check the other transitions to see if there are solving post functions filled in, and remove them.

I recommend creating a copy of this current stream, as you might need to make some other changes and you may be able to resume the previously used stream if you don't see any progress in the results ;)
