Connecting Subtasks to Ticket Status

Nynke Polet

Hi there,

We use Jira for program planning. We use Tickets that automatically have certain subtasks that need to be completed throughout the program planning.

The overall Ticket goes through 5 statuses. The subtasks go through a different flow.
Does anyone know if it is possible to connect subtasks to the overall ticket status?

Ideally we would like the setup to be the following:
- An overall ticket cannot move to a new status before a subtask is completed.
- Certain subtasks have to be completed in a specific ticket status

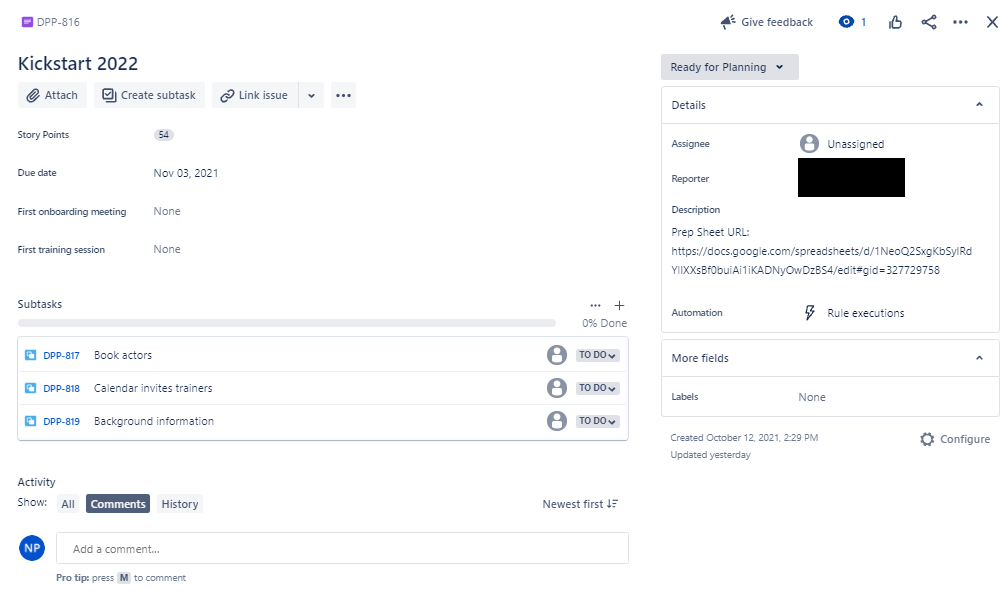

Attached an example of one of our tickets with subtasks.

Would love to know if this would be possible and if so, if you know how to set it up!

Best,
Nynke

Nic Brough -Adaptavist-

It's not "connecting" the status, more "stopping people getting it wrong", but you can achieve this.

You'll need to do a bit of mapping on exactly what you want to apply where, but it all gets done in the parent issue's workflow.

Imagine a very simple case, where the issue workflow is "to-do -> in progress -> done", and sub-tasks have a workflow of "red -> amber -> green"

Edit the workflow for the issue, and look at the transition that is "in progress -> done".  If you click on the transition, a box will pop up, with tabs for Conditions, Validators, Post-functions, Properties and Triggers.

Go to Conditions, and add a new one - look for "Sub-Task Blocking Condition" in the list of possible conditions.  This will give you a list of status, from which you can choose one or many.

In my example, I select just "green" in there, then I save the workflow.

Now, I can not move my issues from in progress to done unless all of their sub-tasks are in green.  (Note - it will allow you to use the transition if there are no sub-tasks as well - there's nothing to check on if you have no sub-tasks!)

You can use conditions like that in any issue transition, but you'll need several different ones to get your rules set up.
