Jira Workflow Errors Incorrect

Michael Berger_h4gy1r

I am editing the default Jira workflow and I added a new "On Hold" status, which at some point was assigned to the "default" status (when a ticket is created). I now would like to delete "On Hold" (changed the name to DELETE), or at least reconfigure the workflow so that tickets go to "To Do". However I get a number of errors, none of which are accurate, but nonetheless prevent me from changing anything.

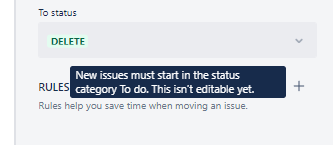

First, I cannot change the "Create" transition to set a new task to "To Do" I get the following error.

Second, I cannot change the name of the DELETE status to To Do, it says that already exists, even when I have removed the To Do status from the board.

I literally just want to return to the most simple workflow Jira offers, but their own error system appears to be preventing this, any tips?

Accepted answers

Angélica Luz

Hello @Michael Berger,

Thank you for reaching out to Atlassian Community!

Testing on my local site, I’m not able to replicate the same issue directly from the workflow. I created new status and also, even changing the category of the “To Do” status, I wasn’t able to change the status for the “Create” transition.

The workflows in next-gen are based on what is also created in the Board. If the columns are changed it will reflect on the workflow.

Can you please go to the board and drag and drop the “To Do” column and place it as the first one?

Also, drag and drop the “Delete” before the “Done” column.

You can also try to delete the “Delete” directly from the board instead of the workflow.

Screen Shot 2021-04-05 at 17.33.25.png

Please, give it a try and let us know how it goes.

Kind regards,
Angélica

All comments

John Funk

Hi Michael,

There are 3 status categories - To Do, In Progress, and Done. All issues created must be in one of those categories.

In your image, the Delete status is green which means it is in a Done type status category. So the message is correct, you cannot have a workflow with the first step being a Done status category type of status - it must be a To Do category.

That does not mean that you need to change the name of the status to To Do.

So create a new status or add the status of To Do to your work flow as the first column/status in your workflow.

I am assuming this is a Next-gen type project?

Michael Berger_h4gy1r

Hi John,

Thank you for your response! Yes, you are correct that this is a Next-Gen project.

The screenshot I shared is actually showing a hoverover error that is not allowing me to change the DELETE status as the end-state of the transition, despite the fact that it is (as you pointed out) a Done status.

This is my current workflow.

However I am unable to drag/change the Create transition to end on "To Do", it is stuck on DELETE. This means I cannot delete the DELETE status. When I try to edit the Create transition I see the following:

John Funk

Grrr - that stinks. Try to maybe delete the the DELETE status on your board. Then make the To Do status the first column on your board. Maybe you can back into that way.

Michael Berger_h4gy1r

That's what I was hoping as well, but I cannot delete the DELETE status (see greyed-out in bottom right of screenshot).

Angélica Luz

Hello @Michael Berger,

Thank you for reaching out to Atlassian Community!

The workflows in next-gen are based on what is also created in the Board. If the columns are changed it will reflect on the workflow.

Can you please go to the board and drag and drop the “To Do” column and place it as the first one?

Also, drag and drop the “Delete” before the “Done” column.

You can also try to delete the “Delete” directly from the board instead of the workflow.

Screen Shot 2021-04-05 at 17.33.25.png

Please, give it a try and let us know how it goes.

Kind regards,
Angélica

Michael Berger_h4gy1r

Wow, that worked!

"That" meaning:

I added a 4th column directly on the board in my sprint, titled "Delete".
I ordered my columns: "To Do", "In Progress", "Delete", "Done".
I then went to "Configure board" and moved the status I wanted to delete into the "Delete" column. Then saved my changes to the board.
I then opened my workflow (Project settings > Issue types > Edit Workflow) and the "Create" transition had changed (it now pointed at "To Do" and not at the status I wanted to delete").
Then I could selected the unwanted status and delete it.

Thank you @Angélica Luz !

That was not a particularly intuitive process, but hey, if it works it works!
