Automation - How to know which transition was used?

Francesc Juventeny

Hi!

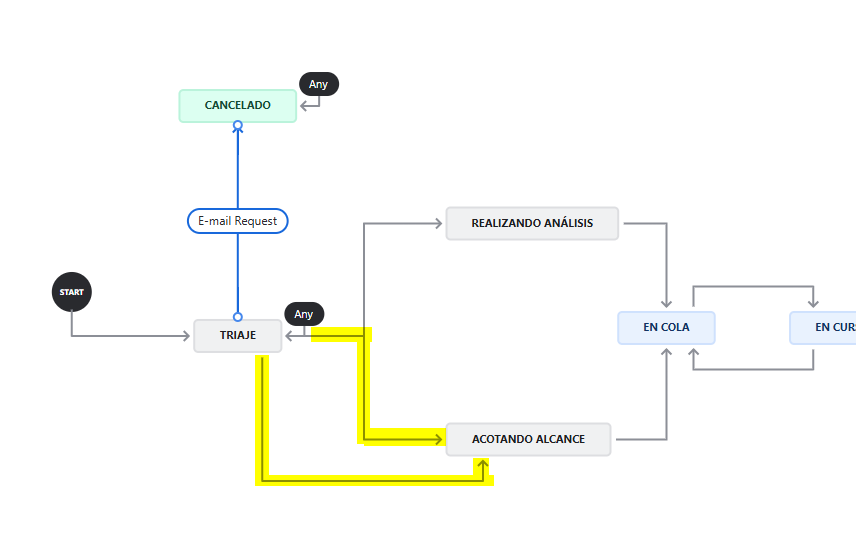

I have a workflow with two transition options between two status.

And an automation that should update a field based on which of the two transitions was used.

In the automation, how can I know which of the transitions reached the new status? There is no smart value for the transition.

Thank you.

Accepted answers

Walter Buggenhout

Hi @Francesc Juventeny,

You don't know. Automation allows you to change the status of your work item (and additionally update fields if necessary), but it does not use your workflow transitions to perform the update - although a transition must be available from one status to another in order to let your automation rule make the status update.

I am sure there is conditional logic inside your workflow transitions. So I would recommend to add the same logic to your automation rule as well, so you can perform the field update in the same way your transitions handle this.

Hope this helps!

Benjamin Črnjak_0e2nl2

Hi @Francesc Juventeny ,

Maybe you could add new hidden field (e.g. LastTransitionUsed) to your work items, and within workflow, for each transition add a post function that will add value (name of the transition) to the hidden field LastTransitionUsed.
Then you can use automation that will trigger on issue transition or field change and check for the value of the field - and use conditional logic.

Kind regards,

Benjamin

Marc Koppelaar

Hi @Francesc Juventeny

You could use transition id

The you could in the automation do a web request action (https://developer.atlassian.com/cloud/jira/platform/rest/v3/api-group-issues/#api-rest-api-3-issue-issueidorkey-transitions-get ) and based on the {{webResponse.body}} get the transition id

So trigger the rule on the transition from status A to B, do the web request and based on the response do an if/else is id = 1 then edit issue field Y, else if transition id = 2 then edit field Z
