JIRA datacenter clustering not sucess

Jennings Liu

HI ,

I installed jira datacenter following the official guide, after added second node, when I access the jira from URL, I can see the "system Info" shows that the clustering in off.

but I can see all the shared file path:

Location of Jira Local Home	/var/atlassian/application-data/jira
Location of Jira Shared Home	/data/jira/sharedhome
Location of entityengine.xml	file:/opt/atlassian/jira/atlassian-jira/WEB-INF/classes/entityengine.xml
Location of atlassian-jira.log	/var/atlassian/application-data/jira/log/atlassian-jira.log
Location of indexes	/var/atlassian/application-data/jira/caches/indexes
Location of attachments	/data/jira/sharedhome/data/attachments
Location of backups	/data/jira/sharedhome/export

Add each node have configure cluster.properties under /var/atlassian/application-data/jira/

on node1

jira.node.id = node1
jira.shared.home = /data/jira/sharedhome/

on node2

jira.node.id = node2
jira.shared.home = /data/jira/sharedhome/

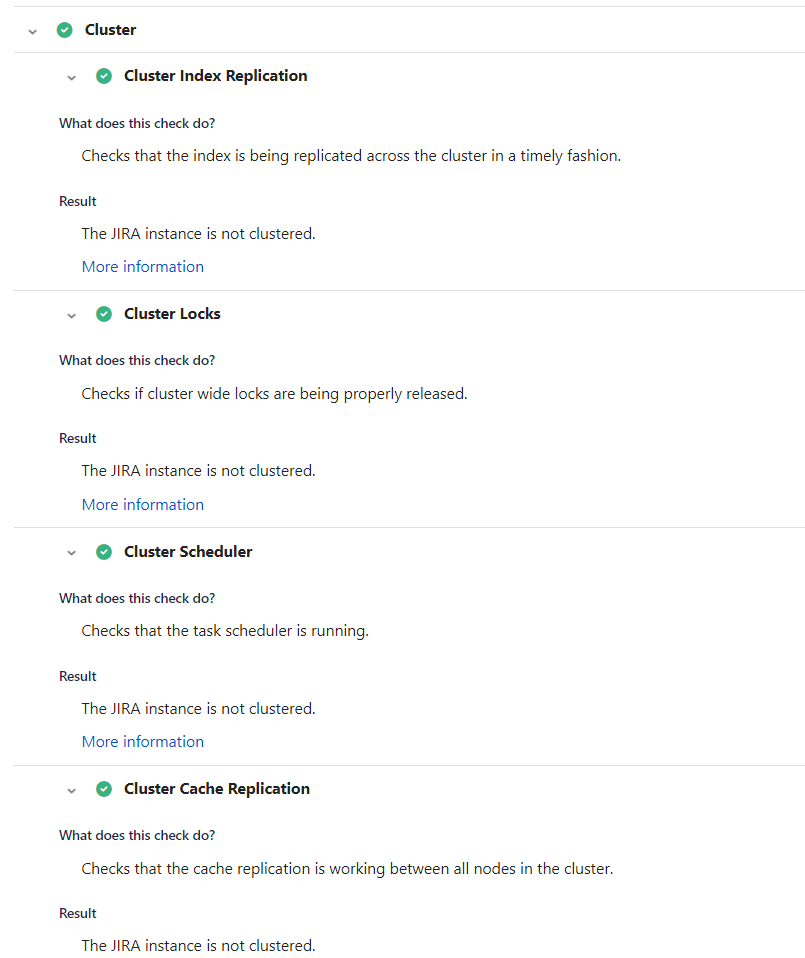

and the support page show node is not clustered

Can anyone help with this setting?

Accepted answers

All comments

Daniel Wong_zylx8x

Hi Jennings,

After applying the cluster.properties file on the first node, were you prompted to install a Jira Data Centre license?

Jennings Liu

Hi Daniel,

Yes, you can see the license details. and I had restarted jira service several times.

Daniel Wong_zylx8x

Is your 2nd node reachable? Have you setup your load balancer to push traffic to your 2nd node? A way to test this is to shut the first node down and bring up the 2nd node to see if you can access it.

Jennings Liu

Yes, all these tests are successfull
