jira health check of gadget problem

James Jung

Dear who may concern,

I tried to access my team's JIRA using HTTPS,

After following every steps described in atlassian official documents,

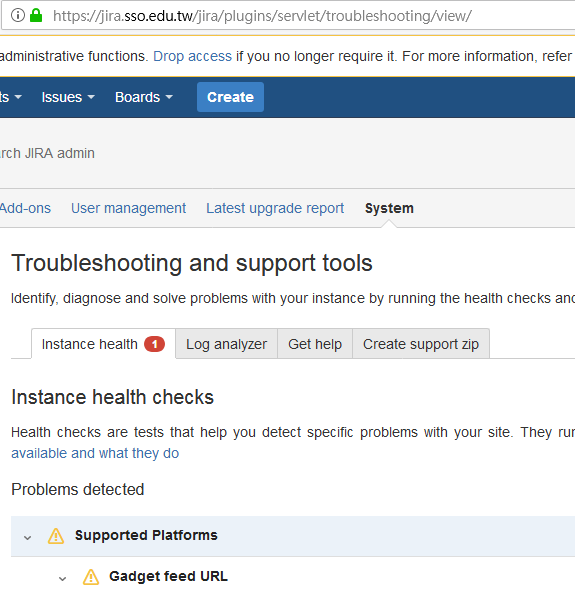

I failed on gadget health check

I used apache2.2 as my reverse proxy to jira at localhost:8080

and rewrite module to force http redirect to https,

we used paid SSL certificates for sure,

also I definitely followed the passage of "How can I resolve this?"

and adjusted settings.

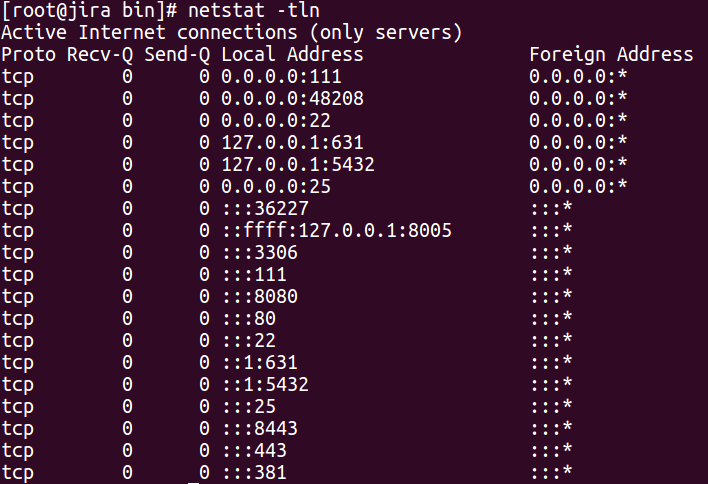

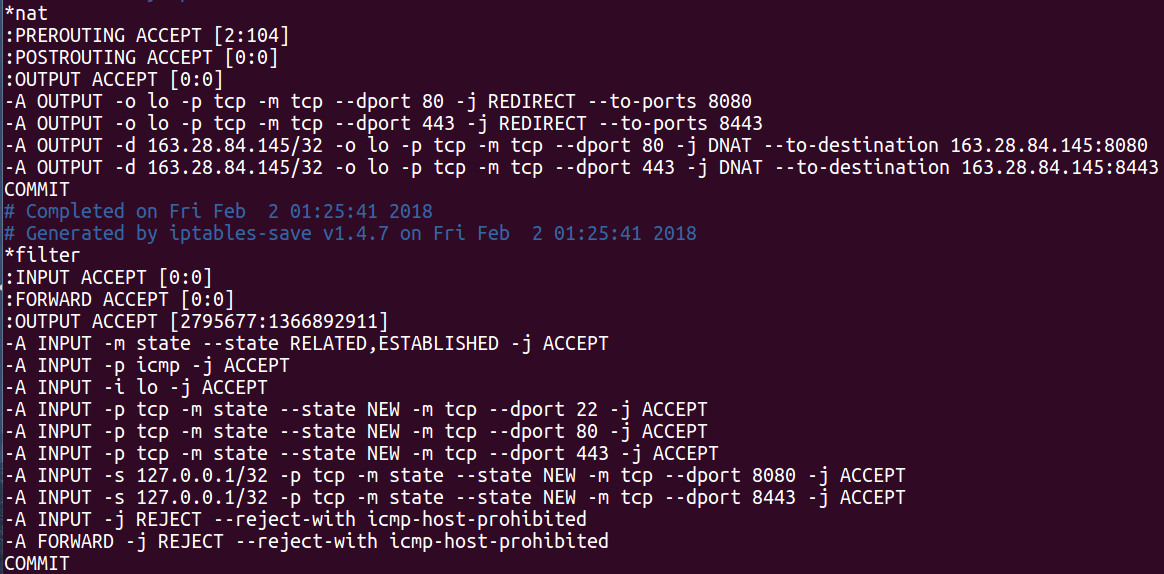

Here is the support zip file and some settings' snapshots.

Hoping to get some solutions from your support.

Thank you!

support.zip

Accepted answers

All comments

Andy Heinzer

Hi James,

Thanks for posting the support zip. I took a look at this configuration and I think I see a possible problem that might be causing this health check to throw a warning.

In your $JIRAINSTALL/conf/server.xml file you have defined two connectors for Jira's Tomcat server to host the site from:

One which uses port 8080 and
The other that uses 8443 along with the SSL settings defined.

The problem here is that since you appear to doing port forwarding and accessing the site on that https://yourdomain this means that your end users are connecting on port 443. But Jira isn't technically hosting it's site on that port. Because there exists this redirection, we need to let Tomcat know about this redirection.

What I would recommend would be to add the following to your connector running on port 8443:

        proxyName="jira.sso.edu.tw"
       proxyPort="443"
       scheme="https"

I see you already have that for the 8080 connector, but since the traffic to Jira ultimately has to go through the 8443 connector, you will need those parameters there as well. Otherwise Jira will not really understand where this traffic is coming from and in turn can cause this error and have other problems with rendering content.

Then save that file and restart JIra once more. Try that and see if you still get this health check warning when you next start up Jira.

James Jung

Dear Andrew,

Thanks for your efforts,

however, I got no luck on that,

I added your suggestion into my 8443 connector as following:

and rebuild the jks as well, then restart jira, still got same health check warning,

I went to view the catalina.out log,

it shown the warning as below:

WARNING [http-nio-8080-exec-19] com.sun.jersey.spi.container.servlet.WebComponent.filterFormParameters A servlet request, to the URI https://jira.sso.edu.tw/jira/rest/gadget/1.0/login, contains form parameters in the request body but the request body has been consumed by the servlet or a servlet filter accessing the request parameters. Only resource methods using @FormParam will work as expected. Resource methods consuming the request body by other means will not work as expected.

Is there any suggestions to solve this issue?

Please advise me.

Andy Heinzer

Hi James,

In your first post you cited a link to this KB: Health Check: JIRA Base URL via the "How can I resolve this?" link.

While I think this is related to your problem, I just wanted to understand more about what specific behaviors your Jira instance is exhibiting. For example, when you look at the dashboard of Jira that contains gadgets, are you seeing the titles for those gadgets? Or are you seeing a title like '__MSG_gadget.activity'

This will tell us more about the problem at hand.

I have seen instances that can sometimes throw this health check error incorrectly, in those cases the gadgets all display their titles correctly. However if the gadgets are also showing this incorrect title, then it seems likely there is still a problem there that could be resolved by that KB. This KB explains that these problems happen when the Jira application is not able to reach the base URL address set for the Jira instance. That can happen for a number of different reasons explained in that KB.

James Jung

Gratefully thank you again, Andrew,

I've been working on this situation for more than few days,

and yes, you're right about the gadget title,

it does shows '__MSG_gadget.activity'

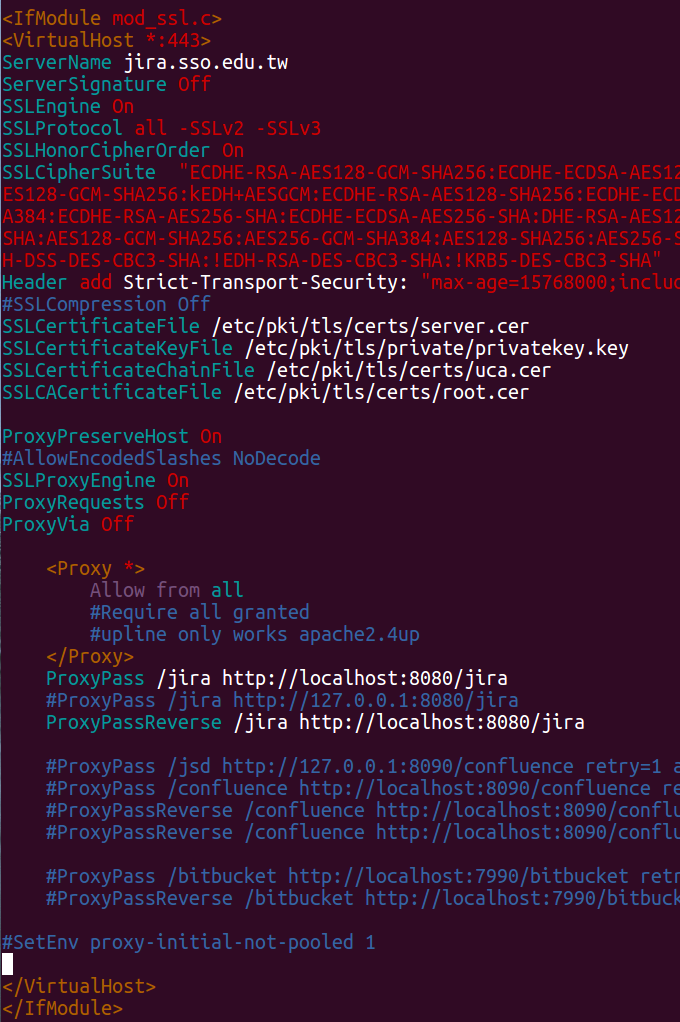

and my situation is behind an Apache2.2 reverse proxy,

I tried every job described in this article:

https://confluence.atlassian.com/jirakb/how-to-fix-gadget-titles-showing-as-__msg_gadget-813697086.html

except with this one:

I can't add this to my white lists through my web UI,

is there any connection with my problem?

Really need some supports,

Sincerely,

James Jung

Dear Andrew,

Thanks again for your warm replies,

I did the SSLPoke and the result looked ok:

however, I found my problem and resolved by removed the arguments listed in this article:

https://confluence.atlassian.com/jirakb/how-to-configure-an-outbound-http-and-https-proxy-for-jira-applications-247857187.html

it told readers to add :

-Dhttp.proxyHost=proxy.example.org -Dhttp.proxyPort=8080 -Dhttps.proxyHost=proxy.example.org -Dhttps.proxyPort=8080 -Dhttp.nonProxyHosts=localhost

in setenv.sh's "JVM_SUPPORT_RECOMMENDED_ARGS"

but the arguments are conflicted to each other,

then I accidentally removed the "http.proxyHost=","http.proxyPort=" and the "https" ARGS as well, only left the "http.nonProxyHosts=localhost" and "https.nonProxyHosts=localhost" ARGS,

the gadget problems amazingly solved,

no more "_MSG_gadget" titles!

Unfortunately, my application link still unreachable,

somehow, the jira cannot connect outbound to another applications anymore,

every time I tried to establishing application link, it shows the error messages as below,

my confluence uses the same way to redirect to https through SSL,

and it works fine on https://confluence.sso.edu.tw

still need supports,

Sincerely,

Andy Heinzer

Hi James,

Glad to hear that the first part of the problem seems resolved. But I understand that the application links are still not working as expected.

Is 'con1' a context path that confluence is running? If so, then the question is how is the proxy for Confluence setup? Many times when Jira or Confluence is setup to use a context path and a reverse proxy, the proxy can rewrite the requests so that the end users are unaware of this. It can help to make the URL shorter and more concise.

Another way to try to troubleshoot this is to try to bypass both the proxy and the use of SSL by Creating an unproxied application link per that guide. Try this and let me know the results.

Andy

James Jung

Thank you, Andy,

After few days digging, I found that our higher level network management authority set the policies which only allow port80 & 443 traffics to passing through main firewall and load balance mechanism, so I cannot directly bypass to connect my jira instance at port8080 and I don't have the vpn permission either, sadly to say,

Is there any other way to test application link?

Or is it related with apache rewirte module? I do use rewrite rule and redirect in apache.

Sincerely in-need of supports,

Andy Heinzer

Creating an unproxied application link is a good way to bypass these things like load balancers and proxies in order to be able to still connect these applications with each other. Even if you do not want to use this method in the long term, it can still be helpful as a troubleshooting measure, just to better understand where the problem exists in creating application links between these two programs.

Are Jira and Confluence both behind this same firewall? If so, then you don't actually have to create new rules on the firewall to make this work. The configuration of both Jira and Confluence control their respective tomcat web servers via their $installdir/conf/server.xml files. It is possible that both Jira and confluence could be accessed on more than one port at a time. The guide I recommended explains this and provides instructions to follow to make this work.

So while the public could reach your jira site on the full public URL on port 80 or 443, you could still create a new port number as mentioned in that guide. Then you could use an internal address for creating this application link. This would be something more closely to the private IP address and port number. This method can be used when both Jira and Confluence sit behind the same firewall AND are able to communicate with each other. If Jira and confluence are on the same address, you can likely just use the localhost address in regards to creating this unproxied application link. But even if they are on separate hosts, having them on the same private network can help here. This way the applications could still communicate with each other without having to use the public address or navigate the possible configuration changes to your load balancer/firewall.

If your Jira and confluence are not on the same private network, then I think it would be beneficial to either relocate the application so they are on the same network.
