Original Epic fields are not displaying from the left hand navigation on Agile board

Sara_e9b0f3

Hello Team,

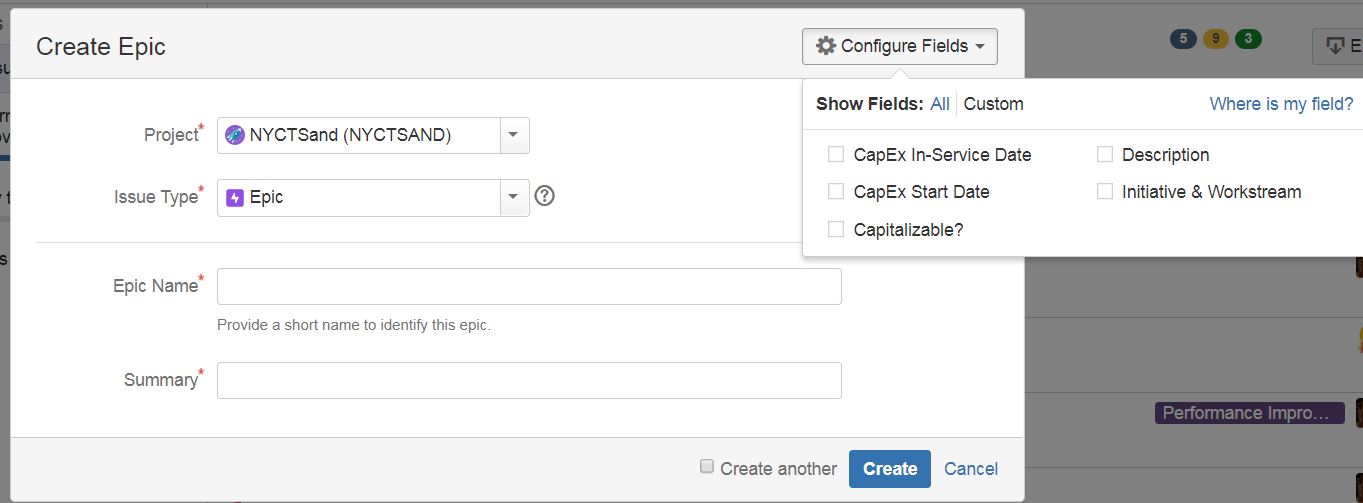

 In the Agile Board when I create an Epic from the left hand navigation when I have the Epics section open, it is not using the Epic Screen I created - it uses the one below so you don't see all the mandatory fields I've added. If I go into Configure Fields I can make them show up. Could anyone please suggest ?







somethingblue

Hi Laxmi,

I would start by making sure the screen is associated with your workflow properly.  Next, I would use the "Where's my Field?" option and search for the missing field.  This will provide more information as to why the field is not showing up.  Take a look at the knowledge base article Custom Fields or System Fields are Not Appearing on the Screen:

1. The custom field's context is not configured for the specific issue type or project you're testing on. Please verify your context settings under JIRA Administration > Issues > Custom Fields > Configure (for the problematic custom field).

2. A field is not appearing is due to its Field Configuration settings. A field can be set to Hidden or Visible. Ensure it's not set to hidden.

3. Check that the field is properly configured to the issue type screen scheme. Here's how to do that:

   1. Note which issue operation, issue type, and project is in use. For example, you are creating (issue operation) a bug (issue type) in JIRA Service Desk (your project).
   2. Begin by looking at your Project Administration. Find the issue type screen scheme.
   3. In the Issue Type Screen Scheme, check which issue type (e.g. Bug) is associated to which screen scheme. Find the issue type in question, and the associated screen scheme.
   4. For the Screen Scheme, check which issue operation (e.g. Create Issue) is associated to which screen.
   5. Finally, check to make sure your field is on this screen.

4. If using a transition screen in a workflow transition, make sure you're using the correct screen.

5. If the field requires a permission (such as Due Date or Attachment), check that the user has the correct permissions. See Managing Project Permissions.

Note that fields are not oriented towards permissions; there is no permissions configuration to show some fields to some users. See JRA-1330 for a discussion. There are a few exceptions to this rule, such as Due Date Field is Missing.

Try the above steps and let us know the results.

Cheers,

Branden
