System Dashboard empty after Upgrade Jira 7.1.2 > 7.5.3

Jens Kisters __SeibertSolutions

Hey there,

i just upgraded Jira and the system dashboard is now empty:

I see neither failed HTTP Requests during load nor Exceptions in the Jira log.
Only the JS error is suspicious.

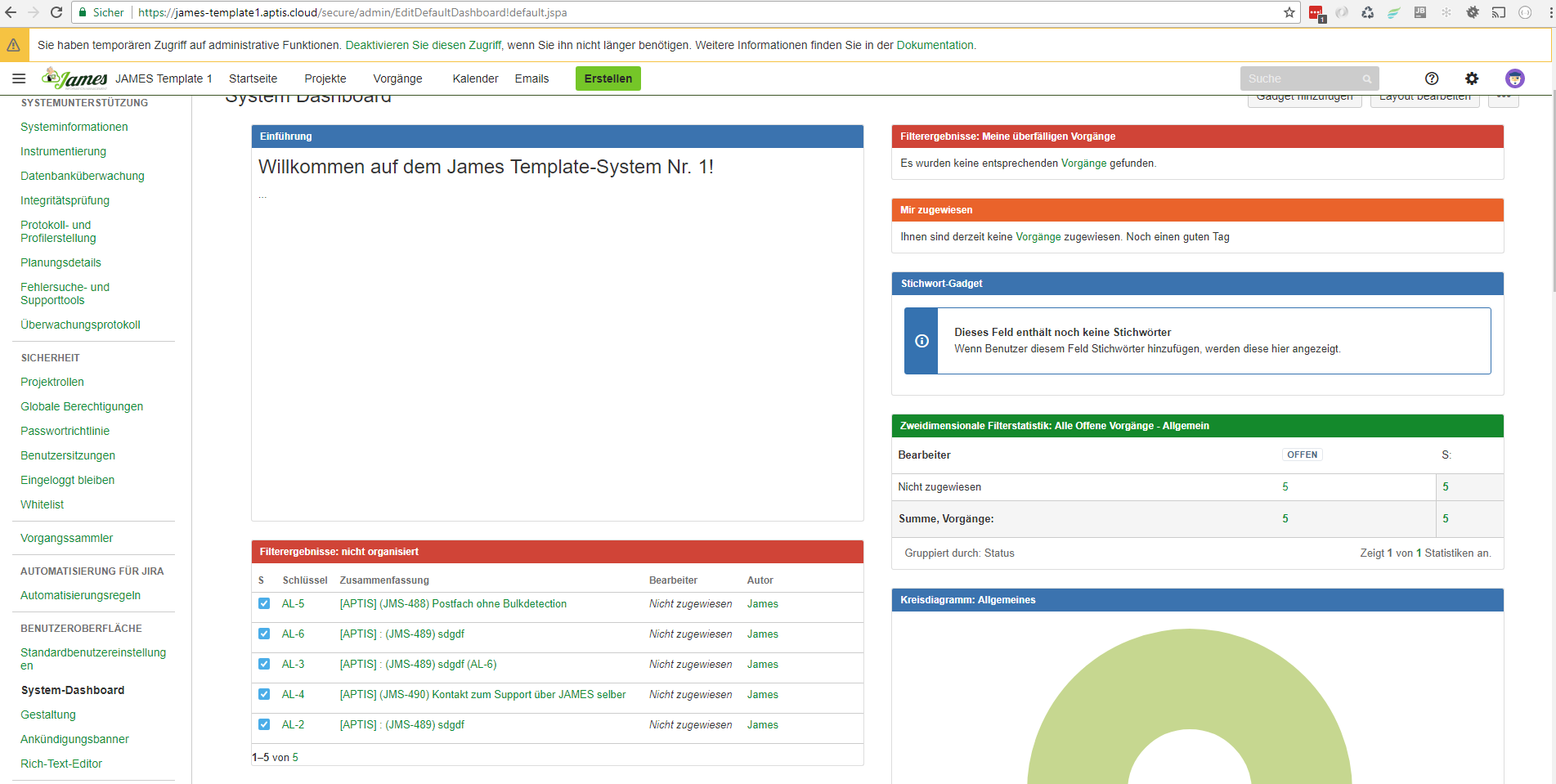

When i go to system > system dashboard with the same user and browser the dashboard display fine there.

Shuffeling around some things on the board does not fix it either.

What can i do?

Thanks in Advance!

Jens

Accepted answers

Shannon S

Hi Jens,

Can you try the steps mentioned on here: Jira Dashboard is not visible after upgraded to 6.4.X

I know the version there is different but the steps listed can still help us resolve the issue:

Problem

JIRA Dashboard page (http://<base-url>/secure/Dashboard.jspa) is not showing any gadgets after upgraded JIRA to 6.4 or 6.4.3 version. Moreover, default system dashboard page (http://<base-url>/secure/admin/EditDefaultDashboard!) is not viewable.

Diagnosis

Diagnostic Steps
Check if any Javascript errors happens in the web browsers console such as Chrome, Firefox or IE (supported version).

Enable safe mode.

Bypassing the proxy.

Check if any Firewall installed on the server.
Check JIRA dashboard data by running the sql query below:
select * from portalpage where USERNAME is null;
Cause

The problem happens when user had performed an upgrading process to JIRA 6.4 and configuring a checkpoint firewall with IPS module enabled. After successfully upgraded JIRA, it seems the IPS module was blocking the Dashboard page by showing this "JavaScript Unescape Synonym Obfuscation" rule.

Workaround

Add an exception to IPS and the page will be return back to normal.

Regards,

Shannon

Jens Kisters __SeibertSolutions

There was a Javascript embedded in an HTML element on the dashboard that expected "$" to be a reference to Jquery.

In Jira 7.5.3 that does not be the case any more,

it could be fixed by replacing $ with AJS.$ in the JS code
