JQL to join multiple projects

Dan Spearing_30hyf8

Greetings!

I'm using Jira Data Center 10.x. I have 3 projects as shown in the image below. I have access to some functions like parentsOf, portfolioChildrenOf, parentIssuesOf, etc., but IT has control over any Script Runner functions.

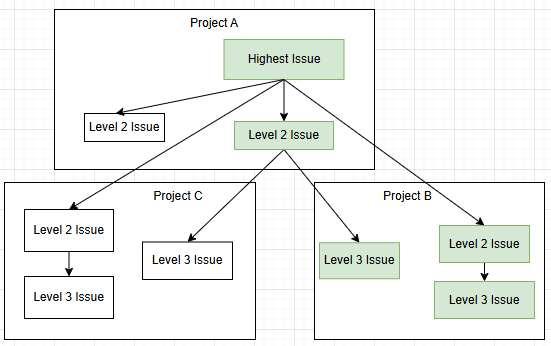

I'm trying to create a filter for a Jira Plan (Advanced Roadmaps) for "Project B" that includes all of the issues in "Project B" and ONLY the issues in "Project A" that are parents of issues in "Project B" (See the green boxes in the image).

I'm going to include "Project B" as a source in my plan. I just need a filter to include just the issues from "Project A" that are parents, or grandparents as shown in the image.

Thanks in advance!

Trudy P Claspill

Hello @Dan Spearing

Let us first agree on the level numbering.

Natively in Jira the base hierarchy levels are:

Level 1: Epics
|-- Level 0: Standard issue types (i.e. Story, Task, Bug)
    |-- Level -1: subtasks

When the hierarchy is customized the levels are number upwards above Epic starting with Level 2; i.e.

Level 3: Theme
|-- Level 2: Initiative
    |-- Level 1: Epic

In the hierarchy diagram you provided, how do your levels corresponds to the levels as Jira numbers them?

The native Jira JQL functions cannot get you what you want. You will need to use the Scriptrunner JQL functions.

issuefunction in portfolioParentsOf("project=B") and project=A

That will get you everything in project A at (Jira level numbering) Level 2 and above that is a parent of an Epic in Project B.

That Scriptrunner function does not cross the Story/Epic boundary. If you have Level 0 issues in Project B that are children of Epics in Project A you would need to use this:

issuefunction in epicsOf("project=A") and project=B

Combine those two with an OR.

(issuefunction in portfolioParentsOf("project=B") and project=A) OR (issuefunction in epicsOf("project=A") and project=B)

I don't have a DC environment where I can fully test that out, but based on the documentation it should work.
