Cascade in JPD by using a helper value field & child parent link automation

Yannic Wolf

Hi There,

We are using JPD in our department

I am aware that as of now there is no easy way of cascading ideas under each other within a view. However, I am exploring a way that by using a custom helper value field to possibly achieve this.

I have 2 fields:

Custom select field: Top level Idea, Child level idea

Custom number field 'Helper value':

The automation that I am trying to make is I think relatively simple but I am failing for the automation to do something and that could just be due to my limited programming knowledge.

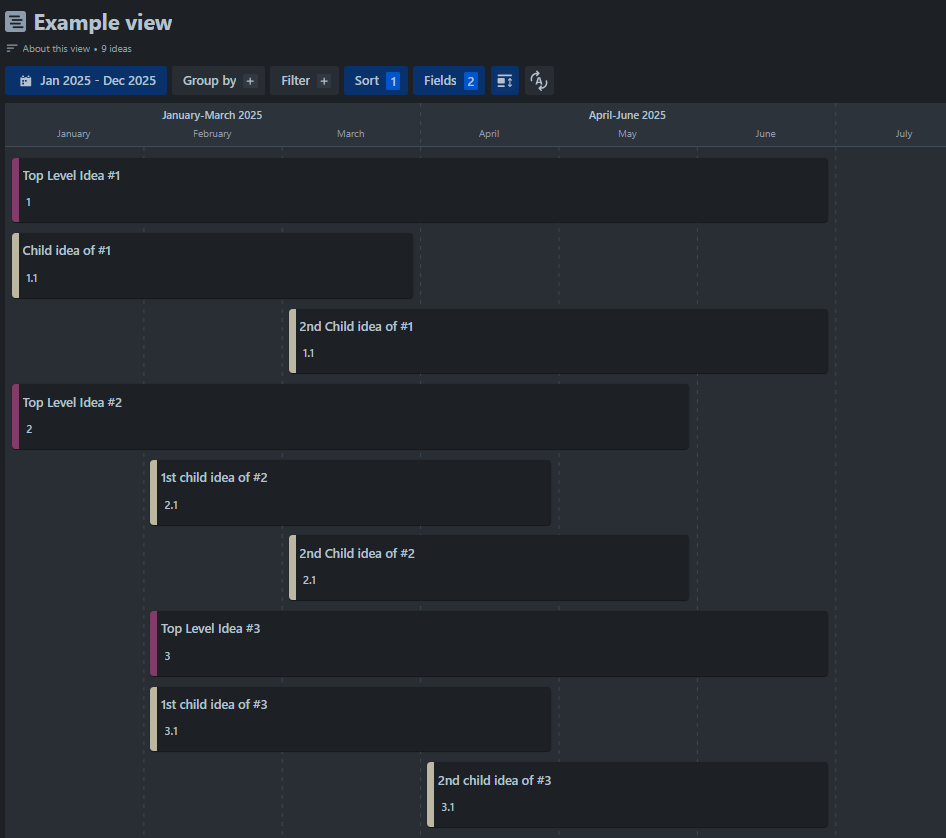

In my mind, a solution could be looking somewhere like this. The number you see is the helper value. So by sorting low to high on helper value you can make them be below their parent.

Screenshot 2025-02-12 114154.png

In our business Top level ideas are only committed each quarter whereas child ideas are more frequently committed to. Even though this solution requires us to ensure that the parents helper value are in iterative order. We only commit to a few (10-15 ideas each quarter) so manually ensuring there is only one full number for each parent idea isn't much of a lift.

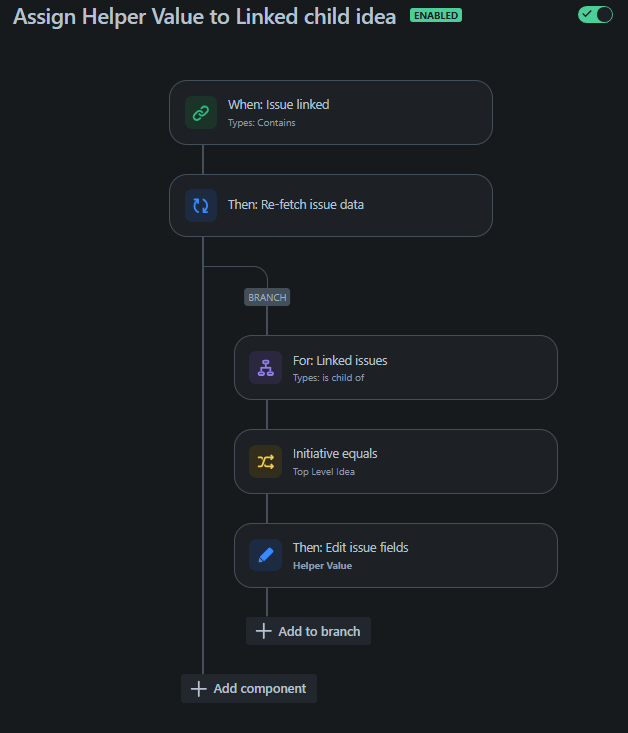

The automation that I am attempting to do is basically:

Whenever an idea is linked to a parent then copy the helper value of the parent and fill in the child helper value with parent helper value + 0.1

Screenshot 2025-02-12 120801.png

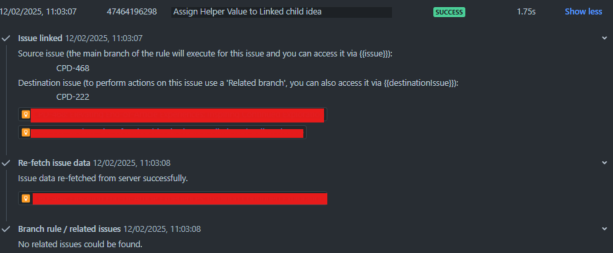

here the audit log:

Screenshot 2025-02-12 122525.png

I am always getting the 'no related issues be found' and therefore the edit is not happening and I don't fully understand why.

I am sure that it's just something missing

Accepted answers

Yannic Wolf

Thanks @Bill Sheboy

I did what you suggested and doing a step by step and that helped thank you!

Now I am running into a problem that the helper value field is not taking the parent helper value field and adds 0.1 to it. It only adds the 0.1

I've tried several variations of the edit issue:

{{issue.parent.customfield_15767}}+ 0.1

{{issue.child.customfield_15767}}+ 0.1

{{issueLink.fields["Helper Value"]}} + 0.1

One example that only changes the value to 0.1:

I've also attempted the copy issue splitting it into two edit issues.

1. to copy from the parent helper value field

2. add 0.1 to the custom field Helper value.

All no dice. It does add the 0.1 to the child issue but does not get the 1 from the parent Child level idea.png

Top level idea.png

For Clarification, the direction I am testing is from the child issue adding 'is child to'

All comments

Bill Sheboy

Hi @Yannic Wolf

Based on the rule and audit log images you show, the link types do not match. Links have "direction" and so there can be different link names for the different directions. For example, "blocks" and "is blocked by". Have you checked the link types are correct for both the trigger and the branch?

Kind regards,
Bill

Yannic Wolf

Hi @Bill Sheboy

I see. So from what perspective am I looking at this

The automation that I tested was from Child idea linking to parent 'is child of'.

Let's say I go into the child idea and link the child as 'is child of' what your are saying the branch Linked issues should be 'is parent of' ?

Also, that does sounds like I need two branches?

One if the link is generated from the parents idea to the child and one if he link is from the child to the parent?

Bill Sheboy

Short answer: maybe.

For some scenarios, rules using the Issue Linked trigger with no link-types selected will use conditions and branching to handle different link directions. It always depends on the scenario steps done by the person doing the linking.

If your rule is triggering as expected with the "Contains" link-type in the trigger, next confirm what link-type should be checked for the branch, as those will be relative to the trigger issue.
If you rule does not always trigger when expected, I recommend pausing to map out the link-types / directions, and when you expect the rule to run. That will guide what is needed.

Yannic Wolf

Thanks @Bill Sheboy

I did what you suggested and doing a step by step and that helped thank you!

Now I am running into a problem that the helper value field is not taking the parent helper value field and adds 0.1 to it. It only adds the 0.1

I've tried several variations of the edit issue:

{{issue.parent.customfield_15767}}+ 0.1

{{issue.child.customfield_15767}}+ 0.1

{{issueLink.fields["Helper Value"]}} + 0.1

One example that only changes the value to 0.1:

I've also attempted the copy issue splitting it into two edit issues.

1. to copy from the parent helper value field

2. add 0.1 to the custom field Helper value.

All no dice. It does add the 0.1 to the child issue but does not get the 1 from the parent Child level idea.png

Top level idea.png

For Clarification, the direction I am testing is from the child issue adding 'is child to'

Bill Sheboy

When trying to use the "parent" data to update the trigger issue, the branch cannot be used as you show. Instead, use the Lookup Issues action with JQL to get the parent issue, and then use that to update the trigger issue.

Next, your math expression is not using a correct format: https://support.atlassian.com/cloud-automation/docs/jira-smart-values-math-expressions/

For example...assuming the parent is stored in the lookup results with only one issue, to add the 0.1 value to the field please use this expression:

{{#=}} {{lookupIssues.first.yourField}} + 0.1 {{/}}

If you are trying to sum to a different issue, please let me know.

Yannic Wolf

I am so sorry @Bill Sheboy you are already helping me so much, and I still run into problems.

So I've attempted a look up issue like you suggested

What I am now finding is that, whatever direction I trigger the automation.

The trigger issue doesn't change.

I used the log action to help debug.

So let me explain:

If I am within the child idea linking towards the parent idea the log using {{triggerIssue.key}} tells me the trigger issue is the key of the parent.

The same happens when I am in the parent idea and link it. For both I get the key of the parent.

Initially my lookup action was. This gave me an error and after some testing using this with the log it didn't find a parent.

key = {{triggerIssue.parent.key}}

After I found out that the trigger issue seems to be always the parent, I changed it to

key = {{triggerIssue.key}}

Which then consequently gives me the right key of the parent

But then using your custom formula

{{#=}} {{lookupIssues.first.customfield_XXXXX}} + 0.1 {{/}}

Edits the trigger issue, which is the parent and not the child. And for this to work I need to the child to be edited.

And correct me if I am wrong, this would only work if the child idea is seen as the trigger issue?

Bill Sheboy

Hi @Yannic Wolf

Sorry for the delay in responding as I did not get a notification of your post.

Please post an image of your current complete rule and the audit log details. I suspect either the edit is in the wrong location in the rule steps or adjustment to the approach is needed.
