Using Step or Anchor with After-Script

Question

Is it possible to call a step from an anchor with after-script? I cannot see any related article that is doing it as of the moment.

What we are trying to accomplish is to create an anchor that also calls another anchor whenever that build fails. Another challenge is when the step that we are trying to assess uses different image from what the after-script is trying to do.

Thanks

Theodora Boudale · Answer

Hi @Bitwise DEVS,

The pipe is used in the after-script the same way it is used in the script.

Please ensure that

* variables: has 2 spaces indentation from the previous level, - pipe: ...
* BITBUCKET_USERNAME, BITBUCKET_APP_PASSWORD, and FILENAME have 2 spaces indentation from the previous level, variables:

Your IDE may still show an error, but the yml should work with this indentation.

Kind regards,
Theodora

Bitwise DEVS · Answer

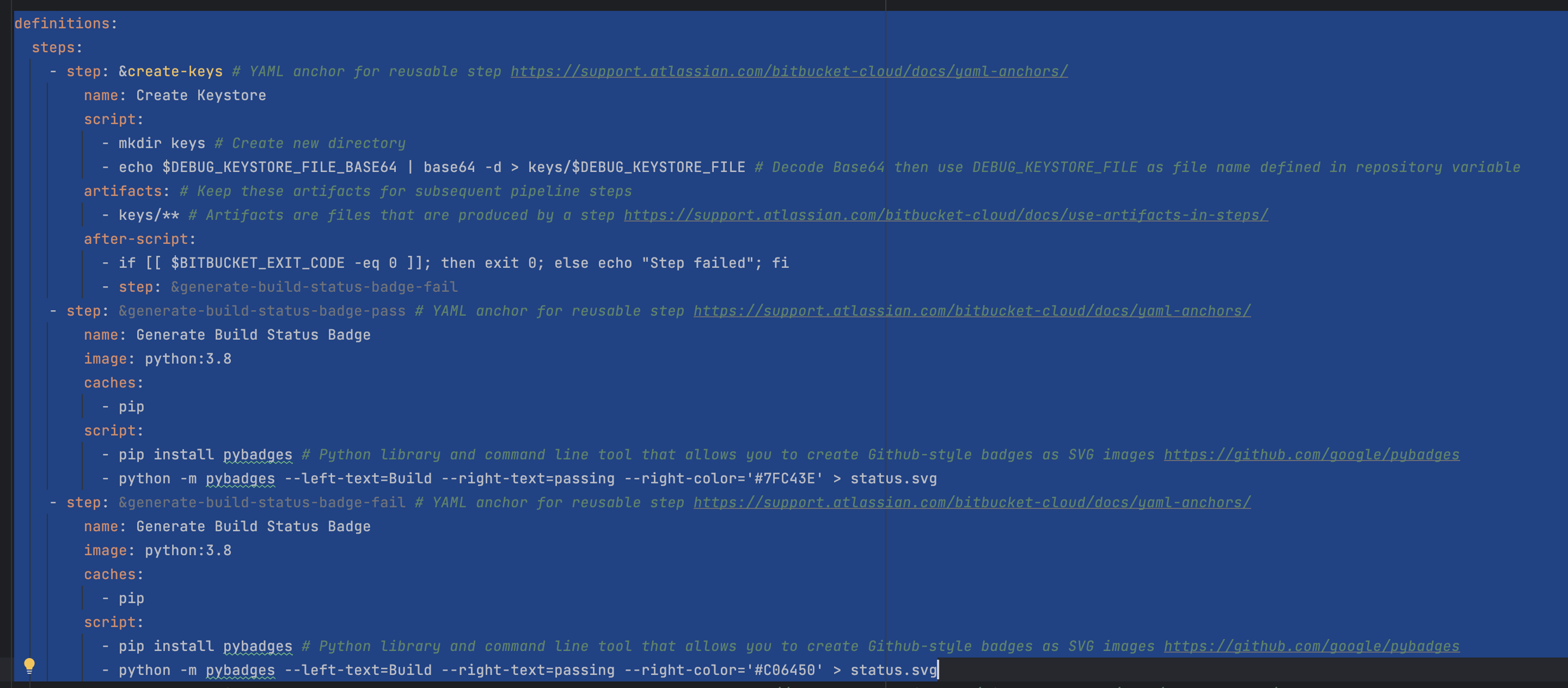

Is there a sample how to use pipe in after-script? Trying to write it this way but haven't actually run it.

- step: &create-keys # YAML anchor for reusable step https://support.atlassian.com/bitbucket-cloud/docs/yaml-anchors/
    name: Create Keystore file
script:
      - mkdir keys # Create new directory
      - echo $DEBUG_KEYSTORE_FILE_BASE64 | base64 -d > keys/$DEBUG_KEYSTORE_FILE # Decode Base64 then use DEBUG_KEYSTORE_FILE as file name defined in repository variable
    artifacts: # Keep these artifacts for subsequent pipeline steps
      - keys/** # Artifacts are files that are produced by a step https://support.atlassian.com/bitbucket-cloud/docs/use-artifacts-in-steps/
    after-script:
      - if [[ $BITBUCKET_EXIT_CODE -eq 0 ]]; then exit 0; else echo "Step failed, generating build status badge"; fi
      - pipe: atlassian/bitbucket-upload-file:0.1.2 # Deploy your artifacts using the bitbucket-upload-file pipe approach https://support.atlassian.com/bitbucket-cloud/docs/deploy-build-artifacts-to-bitbucket-downloads/ or https://bitbucket.org/atlassian/bitbucket-upload-file/src/master/
          variables: # Bitbucket app passwords allow you to deploy an artifact that has been produced by your pipeline to Bitbucket Downloads
            BITBUCKET_USERNAME: $BITBUCKET_USERNAME
BITBUCKET_APP_PASSWORD: $BUILD_STATUS_BADGE_PASSWORD
FILENAME: 'status.svg' # The file to be uploaded on Bitbucket Downloads

Currently the JetBrain's IDE is marking it error Invalid child element in a block mapping not sure if it is false positive.

Theodora Boudale · Answer

Hi @Bitwise DEVS,

If we have `image` in step level and top level which one is being used?

The image on the step level is going to be used. The top one will be used for steps that don't have an image on the step level (if any).

Can we use `pipe` and `image` at the same time? Specifically use `pipe` in `after-script`?

Yes, the two options are not related to each other.

The image specifies which Docker image is going to be used for the build container where the step runs.

A pipe can be used either in the script or in the after-script of a step. The pipe will start a separate Docker container based on the pipe's Docker image.

Please feel free to let me know if you have any other questions.

Kind regards,
Theodora
