Jira Automation - Branch rule for trigger issue

Laura Hanna_6a7fbs

I hope i explain this right...

I have automation that on MAIN story if due date changes it updates the child with due date.

Then creates another story.

I need THAT story to update the trigger story (add comment) So, far I can only get up to Parent of.

Automation rule 1: Story A auto creates story B, based on component.

Automation 2: Trigger: If due date is added to Story A. Update Story B (with due date) - working

Then create Story C. - working

Then update Story B (comment) - working

Then update Story A (comment) - cant get working

I was hoping to insert a branch Rule for trigger issue. All there is is parent. Which basically goes up to Story B.

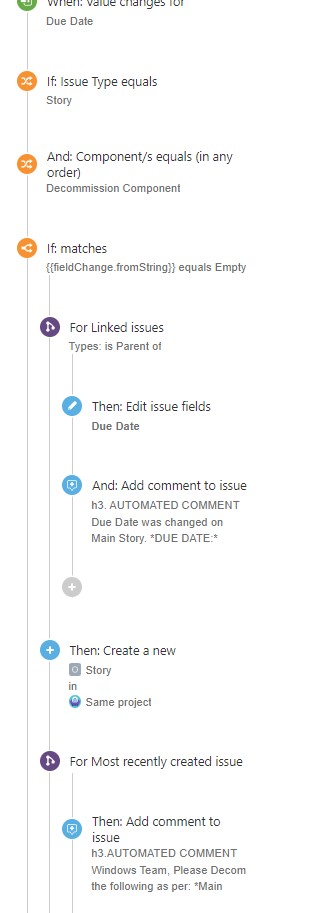

update trigger.jpg

Accepted answers

All comments

Bill Sheboy

Hi @Laura Hanna

You want to update the trigger issue with some information from the most-recently created issue, correct?

If that is the case, you may remove the branch to the most recently created issue. That will change the scope for what is the "current issue" back to the trigger for your Add Comment action.

If you need to reference data from that most-recently created issue in the comment, please use the {{createdIssue}} smart value: https://support.atlassian.com/cloud-automation/docs/jira-smart-values-issues/#--createdIssue--

Kind regards,
Bill

Laura Hanna_6a7fbs

No... I dont want to update trigger with some information from the most-recently created issue. Well hmmm.

I just want to put a comment on the trigger issue that Story C was created...

If I move it back then it will break the other create issue, and comments.

Laura Hanna_6a7fbs

Because after Story C is created, And I get that working like I want, I will then be creating Story D. Then update with comment in Story A.

Then Story E with 4 child Stories after that... If that makes sense...

Bill Sheboy

Nope, that is still unclear to me.

One key thing: if you want to add the comment to the trigger issue that action cannot be inside one of the branches on other issues.

What is the purpose of the comment added to the trigger issue (i.e., Story-A)? Is it an indicator that "everything is done for this rule" or something else?

Laura Hanna_6a7fbs

I tried moving it out. Still does not update the trigger.

I have to be missing something...

Lets try this again...

Story A is created, it auto creates story B.

Story A gets a due date, which updates Story B's due date.

(Would like a comment on Story A - that due date was update on Story

THEN it creates Story C.

(Would like a comment on Story A, that Story C was created.)

Then create Story D

(Would like a comment on Story A, that Story D was created.)

Then Create Story E as child of Story D

(Would like a comment on Story A, that Story E was created.)

I think i am over complicating things...

Bill Sheboy

How are Story A and Story B related? Are they connected with issue links, or something else?

Laura Hanna_6a7fbs

When I create Story A, it creates Story B. with...

Choose fields to set...

I choose "Linked Issues" Is Child of... Trigger Issue.

linked issue.jpg

Bill Sheboy

Great; that helps! And so I would expect your two rules to look like this:

Rule 1

trigger: issue created
action: re-fetch issue (This helps prevent timing problems when using the Issue Created trigger.)
action: create issue, linking it to the trigger issue as you show

Rule 2

trigger: field value changes for Due Date (this is Story A)
condition: issue type is Story
condition: any other conditions you needed...
branch: to linked issue of link type is Child of (this is Story
- action: edit issue, copying the Due Date from the trigger issue
action: comment on trigger issue, referencing that linked issue, Story B:
- {{#issue.issueLinks}}{{#if(equals(type.name.toLowerCase(),"is parent of"))}}{{inwardIssue.key}}, {{/}}{{/}}
action: create Story C
action: comment on trigger issue, referencing {{createdIssue.key}} for the most recently created one

action: create Story D
action: comment on trigger issue, referencing {{createdIssue.key}} for the most recently created one

action: create Story E
action: comment on trigger issue, referencing {{createdIssue.key}} for the most recently created one

Please check all of the link types as I may have them incorrect for your situation.
