How to add more context to KanBan swimlanes

jasper.hoevenaars

Hello!

I'm configuring a KanBan board for the team I'm in. We've defined all phases on the board and the swim lanes are configured per feature. However our over arching structure is:

- Capability

- Feature

- Story

Since the feature field is by default on the card, we would like to make the swim lanes the capability that the story falls under, but we didn't find a straight forward way to do that yet. What would be a way to do this, or otherwise implement the Capability context in our KanBan board?

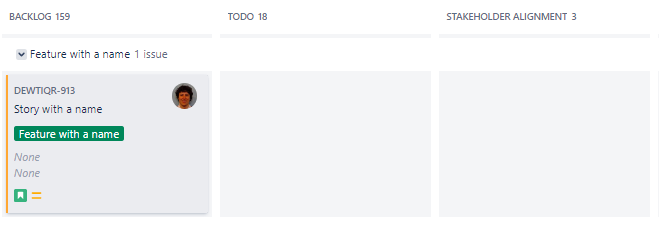

In this case, I would like this row/swimlane to show the capability this feature is attached to for example. Or otherwise configure one of the fields on the card to show the capability.

Accepted answers

Karim ABO HASHISH

hi @jasper.hoevenaars

One way for mapping your structure could be

Capabilities --> Components
Features --> issue type Epic
Story --> issue type Story

For configuring the Kanban board, you can choose one of the below setups

Setup 1

Configre Swimlanes for epics
Add components field to card
configure Quick Filter for each component

Setup 2

configure swimlane for each component using JQL
Add Epic field on the card

in both setups you need to make sure that components are configured and we'll populated accross Epics/stories.

This model can be easy to implement if you don't have to many capabilities.

Good Luck and let me know if further elaboration is needed.

Cheers,

Karim

All comments

Karim ABO HASHISH

hi @jasper.hoevenaars

One way for mapping your structure could be

Capabilities --> Components
Features --> issue type Epic
Story --> issue type Story

For configuring the Kanban board, you can choose one of the below setups

Setup 1

Configre Swimlanes for epics
Add components field to card
configure Quick Filter for each component

Setup 2

configure swimlane for each component using JQL
Add Epic field on the card

in both setups you need to make sure that components are configured and we'll populated accross Epics/stories.

This model can be easy to implement if you don't have to many capabilities.

Good Luck and let me know if further elaboration is needed.

Cheers,

Karim

jasper.hoevenaars

Hey Karim,

Both set ups are worth a try for us! However we have difficulty with the following steps

for Setup 1 step 2: what option should we set as a card component? This is the link to the featurename:

card property.PNG

However, we want the capability and that is not one of the options.

for putting JQL swimlanes, Do we need to set all capabilities separate? Or is there an option to put one query for all lanes?

thanks for helping!

Jasper

Karim ABO HASHISH

@jasper.hoevenaars

Yes, you have to configure a swimlane for each capability. as i explained, it will be easy if you don't have too many capabilities which i believe it is the case. Also it won't need much maintenance if new capabilities are not frequently added.

If you find the proposed model helpful, please mark the answer as accepted so it would help other community members looking for similar approaches.

Cheers,

Karim

jasper.hoevenaars

@Karim ABO HASHISH , great I'll give that a try. Do you also know if it is possible to add the capability on the card?
