bitbucket-pipeline checkstyle-report fails to parse ScalaStyle xml report

Question

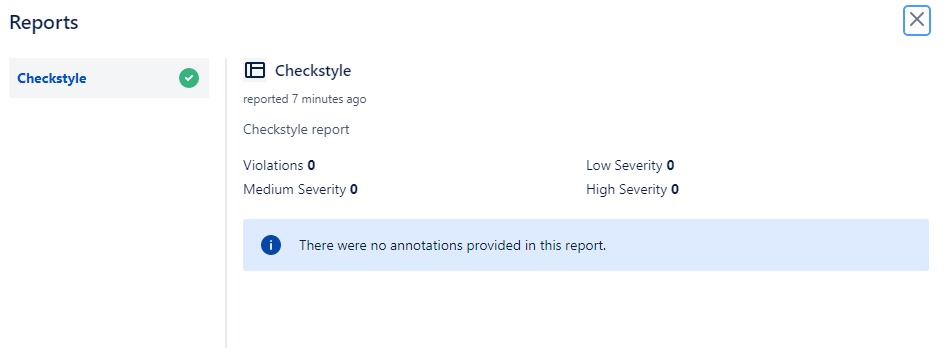

Hi Guys, I am using scalaStyle maven plugin for my scala project. And I am using checkstyle-report for my bitbucket pipeline. The problem is, pipeline is not able to parse the scalaStyle xml. And I see no result in report. pom.xml org.scalastyle scalastyle-maven-plugin 1.0.0 false false true false ${project.basedir}/src/main/scala ${project.basedir}/src/test/scala ${project.basedir}/scalastyle_config.xml ${project.basedir}/checkstyle-result.xml UTF-8 check bitbucket-pipelines.yml I tried both 0.2.0 and 0.3.0 version and same error. pipelines: default: - parallel: - step: name: CheckStyle script: - mvn scalastyle:check after-script: # Collect checkstyle results, if any, and convert to Bitbucket Code Insights. - pipe: atlassian/checkstyle-report:0.3.0 variables: DEBUG: 'true' # please document this flag - step: name: Build and Test script: - mvn clean compile test Error java.lang.RuntimeException: "line" not found in "" at se.bjurr.violations.lib.util.ViolationParserUtils.getAttribute(ViolationParserUtils.java:81) at se.bjurr.violations.lib.util.ViolationParserUtils.getIntegerAttribute(ViolationParserUtils.java:128) at se.bjurr.violations.lib.parsers.CheckStyleParser.parseReportOutput(CheckStyleParser.java:32) at se.bjurr.violations.lib.reports.Parser.findViolations(Parser.java:117) at se.bjurr.violations.lib.ViolationsApi.violations(ViolationsApi.java:58) at com.atlassian.bitbucket.pipelines.checkstyle.report.Main.main(Main.java:89) Submitted report. Response:200 OK Request URI:http://api.bitbucket.org/2.0/repositories/economical/batch-file-ingestion-framework/commit/95f439405b1d4a9b5ade704b11fce8c953cab725/reports/checkstyle-1 Request Body ------- {"title":"Checkstyle","details":"Checkstyle report","external_id":"checkstyle-1","report_type":"BUG","result":"PASSED","data":[{"title":"Violations","type":"NUMBER","value":0},{"title":"Low Severity","type":"NUMBER","value":0},{"title":"Medium Severity","type":"NUMBER","value":0},{"title":"High Severity","type":"NUMBER","value":0}]} -------------------- Response Body ------ {"result": "PASSED", "uuid": "{63fd9f91-08fd-5562-b3ee-97a0aca2b598}", "title": "Checkstyle", "remote_link_enabled": false, "type": "report", "created_by": {"type": "user", "uuid": "{415499a5-0b72-4b70-a07b-4e2a63577cee}"}, "created_on": "2021-12-02T18:43:41.591297Z", "details": "Checkstyle report", "report_type": "BUG", "updated_on": "2021-12-02T18:43:41.591297Z", "data": [{"title": "Violations", "type": "NUMBER", "value": 0}, {"title": "Low Severity", "type": "NUMBER", "value": 0}, {"title": "Medium Severity", "type": "NUMBER", "value": 0}, {"title": "High Severity", "type": "NUMBER", "value": 0}], "external_id": "checkstyle-1"} --------------------SEVERE: Error when parsing /opt/atlassian/pipelines/agent/build/checkstyle-result.xml as CHECKSTYLE checkstyle-report.xml warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/AbstractSchemaGenerator.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/SchemaBuilder.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/SchemaBuilder.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/DelimitedSchemaGenerator.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/DelimitedSchemaGenerator.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/JsonSchemaGenerator.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/JsonSchemaGenerator.scala message=Avoid using null line=9 column=4 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/schema/JsonSchemaGenerator.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/BigQueryIngestion.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/BigQueryIngestion.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/HiveIngestion.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/HiveIngestion.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/RedshiftIngestion.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/RedshiftIngestion.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/AbstractIngestion.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/ingestionprocess/AbstractIngestion.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/SparkSessionTrait.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/SparkSessionTrait.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/CloudStorageService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/CloudStorageService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/HdfsService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/HdfsService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/S3Service.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/S3Service.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/FileOperationService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/FileOperationService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/LocalFileService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/file/LocalFileService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/NotificationService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/NotificationService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/AlertNotificationService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/AlertNotificationService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/NotificationServiceTrait.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/NotificationServiceTrait.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/WarningNotificationService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/WarningNotificationService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/OkNotificationService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/notification/OkNotificationService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/rdbms/RdsService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/rdbms/RdsService.scala message=Public method must have explicit type line=4 column=6 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/rdbms/RdsService.scala message=Public method must have explicit type line=6 column=6 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/rdbms/RdsService.scala message=Public method must have explicit type line=8 column=6 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/rdbms/RdsService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/VaultService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/VaultService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/KeyValueReaderTrait.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/KeyValueReaderTrait.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/SsmService.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/keyvalue/SsmService.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/configparser/YamlParser.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/configparser/YamlParser.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/services/configparser/YamlParser.scala message=Avoid wildcard imports line=3 column=0 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/audit/Audit.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/audit/Audit.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/XMLParser.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/XMLParser.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/AbstractParser.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/AbstractParser.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/JSONParser.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/JSONParser.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/DelimitedParser.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/parser/DelimitedParser.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/package.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/package.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/IngestionConfig.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/IngestionConfig.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/DatabaseConfig.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/DatabaseConfig.scala message=File must end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/NotificationConfig.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/config/NotificationConfig.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/IntakeTable.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/IntakeTable.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/Table.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/Table.scala message=Public method must have explicit type line=5 column=6 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/Table.scala message=Public method must have explicit type line=7 column=6 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/db/Table.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/IngestionContext.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/IngestionContext.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/Schema.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/Schema.scala message=Magic Number line=42 column=78 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/Schema.scala message=File must end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/Schema.scala message=Avoid wildcard imports line=3 column=0 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/Schema.scala message=Avoid wildcard imports line=6 column=0 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/package.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/package.scala message=File must end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/domain/metadata/package.scala message=Avoid wildcard imports line=4 column=0 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/Main.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/Main.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/NotNullValidation.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/NotNullValidation.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/PrimaryUniqueKeyValidation.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/PrimaryUniqueKeyValidation.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/Validation.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/Validation.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/ThresholdValidation.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/ThresholdValidation.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/TraitValidation.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/main/scala/com/batchingestion/validation/TraitValidation.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/TestingSparkSessionTrait.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/TestingSparkSessionTrait.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/SampleTest.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/SampleTest.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/services/configparser/YamlParserTest.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/services/configparser/YamlParserTest.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/parser/DelimitedParserTest.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/parser/DelimitedParserTest.scala message=File must not end with newline character warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/domain/metadata/SchemaTest.scala message=Header does not match expected text line=1 warning file=/opt/atlassian/pipelines/agent/build/src/test/scala/com/batchingestion/domain/metadata/SchemaTest.scala message=File must not end with newline character Saving to outputFile=/opt/atlassian/pipelines/agent/build/checkstyle-result.xml Processed 50 file(s) Found 0 errors Found 112 warnings Found 0 infos Finished in 1036 ms [INFO] ------------------------------------------------------------------------ [INFO] BUILD SUCCESS [INFO] ------------------------------------------------------------------------ [INFO] Total time: 12.101 s [INFO] Finished at: 2021-12-16T16:12:10Z [INFO] ------------------------------------------------------------------------

Igor Stoyanov · Answer

@Gaurang Shah hi. I can't reproduce your issue. I created repo from maven tutorial. i added this plugin to pom.xml org.scalastyle scalastyle-maven-plugin 1.0.0 false false true false ${project.basedir}/src/main/scala ${project.basedir}/src/test/scala ${project.basedir}/scalastyle_config.xml ${project.basedir}/checkstyle-result.xml UTF-8 check I used this scalasyle config file for my project. Here is my bitbucket-pipelines.yml: image: name: maven:3.6.3 test: &test step: name: CheckStyle script: - mvn scalastyle:check after-script: # Collect checkstyle results, if any, and convert to Bitbucket Code Insights. - pipe: atlassian/checkstyle-report:0.3.0 variables: DEBUG: 'true' Result of pipeline execution: mvn scalastyle:check Found 0 errors Found 26 warnings Found 0 infosProcessed 4 file(s) - pipe: atlassian/checkstyle-report:0.3.0 ... Submitted 26 annotations. Response:200 OK ... And report generated: Additionally here is my checkstyle-result.xml that i generated with `mvn scalastyle:check` : My suggestion to you is to try generate report before using pipe to see if all going well on this step. Next, please provide us the result of execution in pipeline: mvn scalastyle:check Also provide us your generated checkstyle-result.xml Regards, Igor.

Lakshmi · Answer

@Igor Stoyanov  any update or workaround for this issue ?

Igor Stoyanov · Answer

@Gaurang Shah  hi. I didn't correctly provide you feedback. I thought that the pipe does not support this feature, but seems like it does. We will investigate this feature and provide the feedback later.

Regards, Igor.
