Graphic to understand Access, Permissions and Roles in company- and team-managed projects

Svenja Lorenzen

Hello everyone!

I'm currently learning for the ACP-620 but I'm having a hard time understanding the interaction from Access, Permissions and Roles in company-managed vs. team-managed projects.

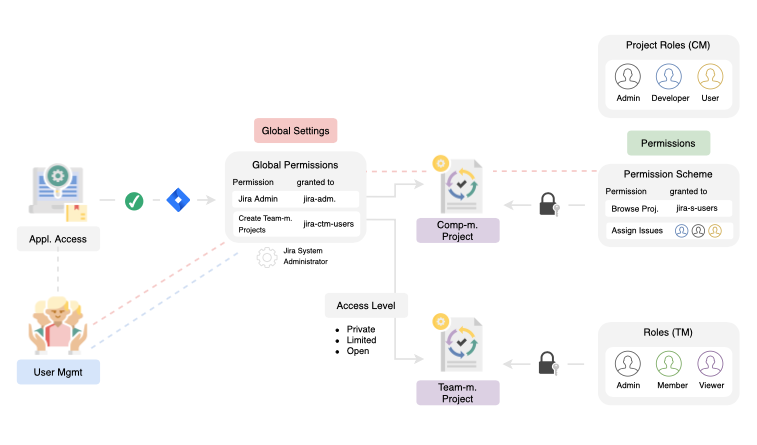

I came up with the following graphic but I'm still not sure if I have thought about everything.

My question to all certified administrators out there:
Is this graphic kind of completed or am I still missing something? Are there any interactions that you would add? Or do you maybe have a complete graphic that you would be so kind to share?

Bildschirmfoto 2021-09-12 um 12.40.58.png

Any help on this is very much appreciated!

Thanks,
Svenja

Comments

Curt Holley

Hi @Svenja Lorenzen

Nice graphic! and I think that about covers it for Team managed projects, but you could go deeper for Company managed.

For example, You mention Project roles and a permission scheme as concepts, but your graphic doesn't show how those roles represent different levels of access within the same permission scheme.

By doing this you would be able to define the permission scheme to a much deeper level as well as define the roles to a much deeper level.

Make sense?

Regards

Curt

Mykenna Cepek

Not sure if this graphic helps, but I've referenced it to help clarify Company-Managed Project permissions. Might be too details for what you want? But I think it does cover "everything".

https://support.atlassian.com/jira-work-management/docs/how-do-jira-permissions-work/

Julia_k9zvoc

Hi @Svenja Lorenzen ,

We'll have an Atlassian University Live webinar on 21st September on the topic of Managing Permissions in Jira for Cloud, to help with exam preparation for ACP-620 and ACP-120.

Take a look here: https://community.atlassian.com/t5/Training-Certification/Managing-Permissions-in-Jira-for-Cloud-Atlassian-University-Live/m-p/1795964#M672.

The webinar is based on a new free Skillbuilder course called Managing Permissions in Jira Cloud from Atlassian University that will be released on 21st September.

Regards,

Atlassian University Team

John Funk

Looks good to me.

Karri Adkins_ma1xcf

Does your company apply any SSO rules when a new employee is onboarded that would proceed any of these? Just a thought to include that. I have found, in my case, this addition has severely made our permissions more complicated than it needs to be, when it was supposed to help.....I need to make a map like this.....to explain to our folks......

Svenja Lorenzen

Hi @Curt Holley,

Thank you so much for your answer.

Since roles can be highly customizable I don't think it would work out in this graphic. The graphic shall give a general overview. I wanted to make sure that my general understanding is covered. However I made a list of all permissions in another chapter to really deep dive.

This graphic is from my Confluence instance. When you click on 'Permissions' you will be directed to a page where I listed all permissions and their definition.

Svenja Lorenzen

Hi @Karri Adkins,

No we're not using any SSO rules but this is a great input! I should dive into this topic as well!

Thanks for the great addition!

Svenja Lorenzen

Thank you very much @John Funk!

Hearing this from a certified Jira Cloud Administrator is great. 💡

Now I know that I did not make a major mistake, and this really helps me to understand.

Thank you!

Svenja Lorenzen

Hi @Julia,

Thank you so much for pointing out the webinar. I'll definitley attend.

I signed up and can't wait to dive futher into the topic!

Svenja Lorenzen

Hi @Mykenna Cepek,

Thank you for the link! No, no it's not to detailed! I think this is another really good addition. I'll add this graphic to my documentation of the company-managed projects.

Joanna Thurmann

Hi @Svenja Lorenzen , thanks for joining the webinar. The graphic looks very good.
For completeness, you may wish to add information about issue-level security:

Configure issue security schemes (company-managed)
Restrict access to an issue type in your team-managed software project (team-managed).

Emma Wolstencroft

I love this graphic! I've actually recently been working on one similar to this when looking at user management, but I will update it to bring in elements from yours.

As Joanna points out above, the missing piece is the issue-level permission section.
