Automate Request Type change upon Issue Type change

Derrick_Robinson

Hi,

I've just rolled out Jira Service Desk within our organisation and have found another problem that I can't work out how to resolve.

Specifically, I want to automatically change the Request Type when an Issue Type is changed.

I'm using:

'Jira Misc Workflow Extensions' (JMWE) to automatically create a linked issue for when we need to send a Jira Service Desk ticket to our Development team.
'Extension for Jira Service Desk Cloud' to allow the Linked Issue (link) to be seen in the Jira Service Desk customer Portal, so our colleagues can see when their issue has been sent to another department, and hence have visibility of the linked issue.

However, although I can change to the correct linked Issue Type using JMWE, in doing so it clears the Request Type, which then doesn't allow the Linked Issue (link) to be seen in the customer portal.

At the moment I'm having to ask our support guys to manually update the Request Type as a workaround.

I've looked into using JMWE and 'Automation for Jira', but neither seem to be able to do what I need:

JMWE - doesn't allow the Request Type to be set (in a post function automation) - it just isn't available in the dropdown.
'Automation for Jira' - feeds back a warning:

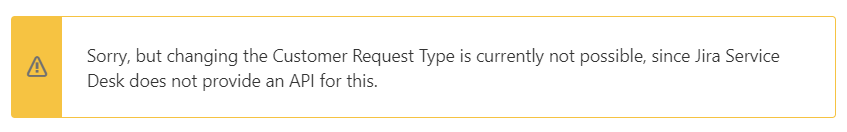

"Sorry, but changing the Customer Request Type is currently not possible, since Jira Service Desk does not provide an API for this":

Annotation 2020-01-15 143213.png

I'd really appreciate any help to automate changing the Request Type.

Thanks.

Accepted answers

Derrick_Robinson

I've had some Very helpful feedback from Simon Dleist Atlassian who's informed me that:

I've been testing changing the request type using a post function, and as you say, it doesn't work when given either the name or the ID of the request type.
I found out that you have to enter the request type exactly as it is saved in the Jira database, which, for my service desk project with the key CSD is a string like "csd/technicalsupport" for the "Technical Support" request type.
Since you are on a cloud instance, you don't have direct access to the database, so you can't look up the request types in there.
I can extract a list of all the request types from your site's database and send it to you.
In order for me to access your site's database, I need your consent through the ticket.
If you consent, please open the ticket using the link below and click the "Approve data access" button.
I'm following up internally to find a way to improve this, as I can see that it's not very intuitive or clear at the moment.

In a nutshell, the problem is due to setting the Request Type exactly as it’s stored in the database (and not the ‘label’ cloud users see).

For my Request Type of 'Development' that equates to:

isd/57127acb-fdb1-7084-b422-6c2f43051524

Since Cloud users are unable to access the database to get at these values, I had to authorise Simon to hop on to our instance so that he could extract my Request Types.

Simon then sent me an extract from the database of my various request types as stored in the cloud database and... success!

Simon’s also raised this issue and has a meeting scheduled today to follow up on this internally!

Having now received these, I’ve added them to my workflows and initial tests have been successful. However, since the system is now live I can’t do further testing until this evening. But it’s looking promising!

Thought you’d like to know, as I think it’ll help quite a few people out.

Cheers,

Derrick

All comments

Petter Gonçalves

Hello Derrick,

Thank you for reaching out.

Indeed, the ability to automatically update the request type when changing the issue type of a ticket is still missing in Jira Service Desk.

We completely understand how impactful this lack is for some customers, and that's why we created the following feature request to implement this functionality:

- Update request type upon issue type change

Feel free to vote and watch the suggestion to increase its priority and also receive notifications about any updates.

For now, I believe the apps you are using cannot provide a viable workaround since JIRA Service Desk does not provide the API to change Request types, however, I was able to find an achievable workaround using Jira Service desk default automation.

The only limitation on that workaround is that you will need to restrict your issue type to only be changed upon a status change. You can achieve this by using a separate workflow for each issue type in your site, forcing the users to click on "Move" to change the issue type of the issues. Once you do it, these would the steps to configure the automation:

Go to project settings > Automations
Click Add Rule > Create a Custom Rule
Set as below:
1. Trigger: Status Changed
2. Conditions: Create a single condition to set the request type for each issue type value:
  Issue Matches > issuetype="1" and "Customer Request Type" is EMPTY
3. Actions: Edit Request Type > Select the request type you would like to set when issue type is set to the issue
Then, Save it.

Let us know if you have any questions.

Derrick_Robinson

Thanks Petter,

Unfortunately, part of the problem has been in my understanding, but thankfully I had a eureka moment yesterday evening when I realised where I was going wrong: basically, I was trying to set the Request Type when I was creating the linked issue and didn't appreciate that the fields I was setting are actually applicable to the new linked issue being created and not the original issue. Now I've got over that hurdle I can focus on the more specific issue of automatically setting the request type of the original issue, after I've changed its Issue type.

I've therefore just implemented your solution and will see how that goes.

Really appreciate your help.

All the best,

Derrick

Petter Gonçalves

Thank you for sharing this information, Derrick.

Please, let us know in case you face any questions while performing the suggested steps.

Derrick_Robinson

I've had some Very helpful feedback from Simon Dleist Atlassian who's informed me that:

I've been testing changing the request type using a post function, and as you say, it doesn't work when given either the name or the ID of the request type.
I found out that you have to enter the request type exactly as it is saved in the Jira database, which, for my service desk project with the key CSD is a string like "csd/technicalsupport" for the "Technical Support" request type.
Since you are on a cloud instance, you don't have direct access to the database, so you can't look up the request types in there.
I can extract a list of all the request types from your site's database and send it to you.
In order for me to access your site's database, I need your consent through the ticket.
If you consent, please open the ticket using the link below and click the "Approve data access" button.
I'm following up internally to find a way to improve this, as I can see that it's not very intuitive or clear at the moment.

In a nutshell, the problem is due to setting the Request Type exactly as it’s stored in the database (and not the ‘label’ cloud users see).

For my Request Type of 'Development' that equates to:

isd/57127acb-fdb1-7084-b422-6c2f43051524

Since Cloud users are unable to access the database to get at these values, I had to authorise Simon to hop on to our instance so that he could extract my Request Types.

Simon then sent me an extract from the database of my various request types as stored in the cloud database and... success!

Simon’s also raised this issue and has a meeting scheduled today to follow up on this internally!

Thought you’d like to know, as I think it’ll help quite a few people out.

Cheers,

Derrick

Andrey Kolesnikov_swlhyq

@Petter Gonçalves that doesnt work, because when i try to add action "Edit request type" it says me "Automation will only change the request type if the issue type won't be changed"

Daniel Triftshaeuser

Hello Derrick,

there is an option for you to acquire this value yourself.

We did this by including the "Copy value from other Field" post-function and copied request type to description.

This way the value is easily extractable, even for cloud users.

Best Regards

Dan

Alex Steinlauf_ohdjya

@Daniel Triftshaeuser you are a legend.

Tiele Declercq

This is not working for me.

I cannot select Request Type as a field to copy from.

So I tried advanced setting using json and tried:

0:{{issue.Request Type}}
1:{{issue.Request Type.requestType.name}}
2:{{issue.Request Type.requestType.id}}
3:{{issue.customfield_10042}}

Which results in:

0:Request service
1:Request service
2:21
3:Request service

So not the same format as @Daniel Triftshaeuser but I did manage to get an 'ID' here.

But when trying to 'set' my fields.. Tried:

"Request Type": 21
"Request Type": "Request service"
"customfield_10042": 21
"customfield_10042": "Request service"

But in every event, the Request Type turned empty.

Anything else I can try?

Philipp Schenke

Hi everyone.

Don´t know if anyone is struggling about this problem anymore. I had also weird automation errors when I wanted to change the Request Type upon issue type change.

After searching a little bit I found this feature request from Atlassian. This is a solution for the cloud versions. 2 days ago they have launched a new feature in the "Feature Labs" section of the project.

I tested this an it works good for us. You can find more information on how to use this in the feature request.

Maybe someone else of you are happy to have this feature.

Cheers

Philipp

Davis Truong_lobltb

I just found an easier way to do this without having to open a ticket to get DB information. Steps are below.

1. Find out what is your custom filed ID for "Request Type"

Go to Custom Fields, and locate "Request Type" field.

Click on the ... at the right hand side and chose "View Field Information"
At the top of your address bar Look for "customFieldID=#####" the # is the number of your custom field. in my case my "Request Type" Custom field is 10010

2. You will now need to know the ID number of your "Request Type". To do that, do the following.

Go to your JSM project's "Request Types".
Locate the Request Type you want. In my case I created one called "BeyondTrust"
Click on your request type. In my case, just click on "BeyondTrust"
A new page will load, this is where you get to modify the form of your request type.
At the top of your address bar, look for request-type/###/request-form. The ### is the number for your "Request Type". You will need this for a custom action.
In my case, my "Request Type" number is 268. You will need this number for later.

3. Go back to your automation. For my case, I wanted to update the "Request Type" based on an issue type that was created. My requirement is that, if an issue type is "BeyondTrust", update the "Request Type" filed to "BeyondTrust".

In my case since i am modifying an existing automation rule. I created an If: all match match.
You will want to creat an action to Edit the filed: Instead of picking any field, click on "More Options" and add the following string.
Replace the customfield_### , and Requst Type ### with your own number.

{
"fields": {
"customfield_10010": "268"
}
}

This was a quick edit and worked well for me.

Muhammad Akram Sharifi_y6l7bk

Thank you this worked for me.
