Bitbucket shows unexpected diff

Jens Müller_nvd36t

I created a feature brunch from a tag of the master branch I made changes in one file which are also changed in the master branch. If i create a pullrequest i expect that both files (on actual master branch and the feature branch) are the same, but i get a diff wich looks like bitbucket diffs against the tag on the master branch and not the actual version. Can anybody tell me why it shows the diff?

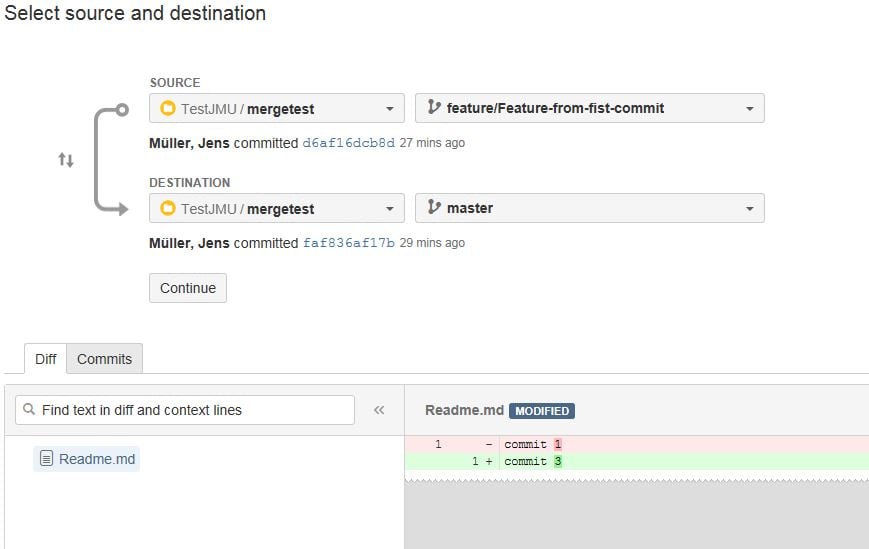

PullRequest

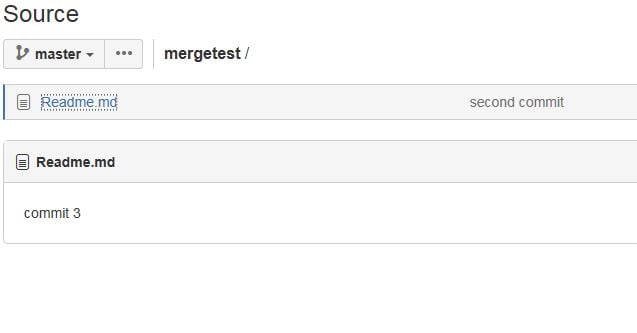

File on master

File on feature branch

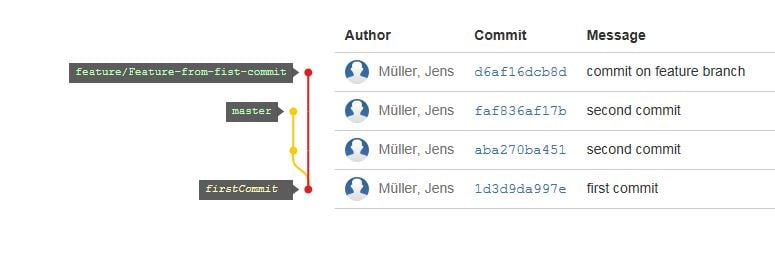

Network view





Kristy

Hi @Jens Müller,



On the 'Create Pull Request' page and the 'Compare Branch' page Bitbucket Server shows a 'common ancestor' diff (also known as a 2-way diff). This diff finds the commit that is common to both the source and target branches (known as the common ancestor commit) and compares the latest commit on the source branch with the common ancestor commit. This means that the diff you see does not contain any of the changes from the target branch that happened after you branched.



However, if in the diff view of a created pull request Bitbucket shows the effective diff (also known as a 3-way diff). To show this diff, Bitbucket creates a temporary merge between the source and target branch, and then shows you the diff between that merge commit and the tip of the target branch. This means that the changes you are seeing in a pull request contain the changes from the target branch and represent what the target branch will look like after you perform the merge.



The article 'A better pull request' explains this concept really well.



Hope that helps!

Kristy
