[SOLVED] Standard emoticons not rendered

StefanN

I have a fresh Confluence 6.3 install (official Docker image) and when I edit a page and want to insert new emoticons, I can't see any pictograms/images. Tried it with three browsers - the images are always missing.

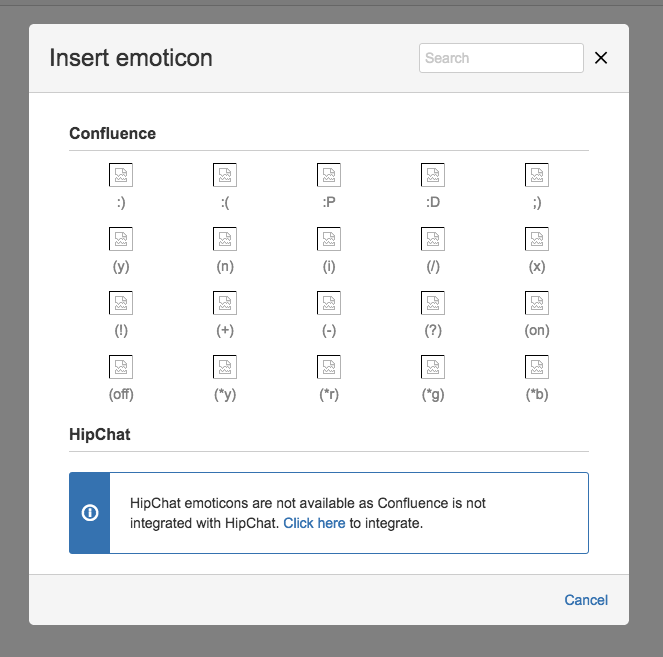

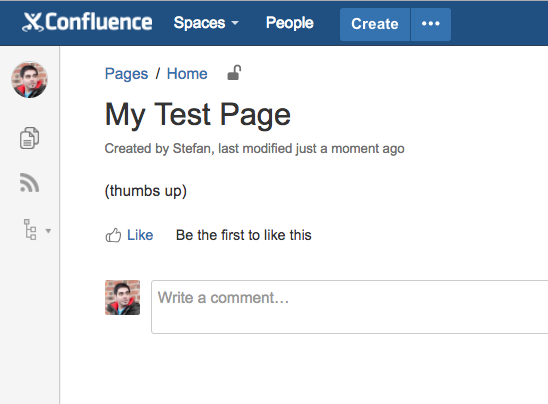

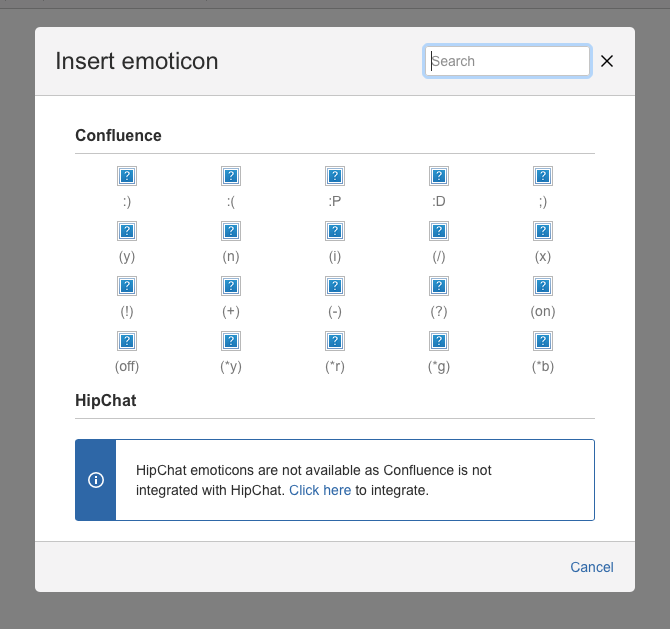

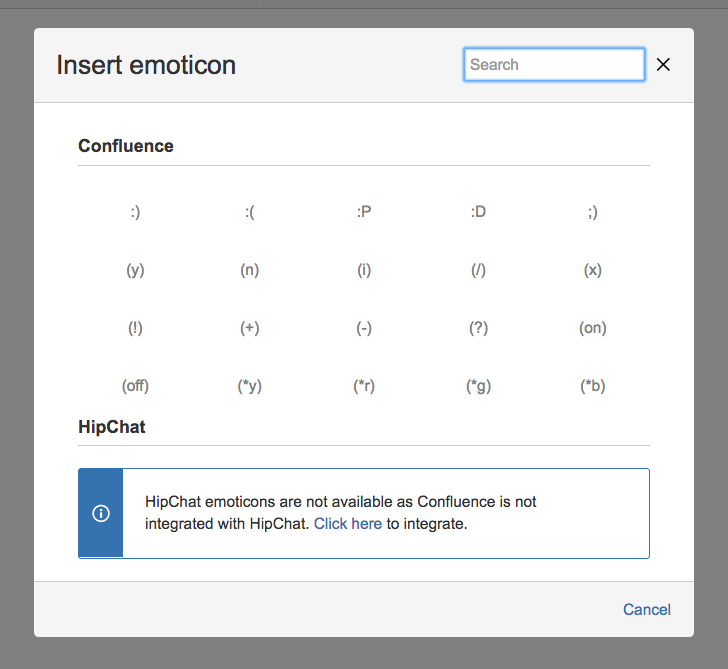

Screenshots:







Thanks!



UPDATE:

The isssue is solved now. User error

Since I am using Docker, I have created a docker-compose.yaml file. The relevant part looks like this:

version: '2'
services:
  confluence:
    image: atlassian/confluence-server:6.3
    restart: always
    ports:
      - "127.0.0.1:8090:8090"
    depends_on:
      - postgres
    volumes:
      - confluence-data:/var/atlassian/application-data/confluence
      - /opt/docker/mount/confluence-cfg-mount/server.xml:/opt/atlassian/confluence/conf/server.xml
      - /opt/docker/mount/confluence-cfg-mount/server.xml:/opt/atlassian/confluence/conf/web.xml



As you can see the last line mounts the *contents* of server.xml into the web.xml file. Confluence rightly complains about a directive missing - well the entire web.xml was missing but ok:



23-Aug-2017 16:14:52.643 SEVERE [localhost-startStop-1]org.springframework.web.servlet.DispatcherServlet.initServletBean Context initialization failed
confluence_1 | org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'defaultServletHandlerMapping' defined in class org.springframework.web.servlet.config.annotation.DelegatingWebMvcConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.web.servlet.HandlerMapping]: Factory method 'defaultServletHandlerMapping' threw exception; nested exception is java.lang.IllegalStateException: Unable to locate the default servlet for serving static content. Please set the 'defaultServletName' property explicitly.





The weird thing though is that I did edit the web.xml file before because I changed the session timeout. I don't understand how Confluence was able to change my session timeout even though the web.xml file had the wrong contents...

However, if anybody else stumbles over this - you're welcome. Thank you all for your help. Special thanks to Ann for her dedication and perseverence

AnnWorley

The screenshots you linked indicate that your Confluence instance must be integrated with HipChat to make the emoticons available. Here is the guide for linking the two applications: Use HipChat and Confluence together
