Dependency Management Use Cases in Jira Align

Karan Madaan

Dependency management in Jira Align handles a couple of scenarios which are listed below.

Dependency between

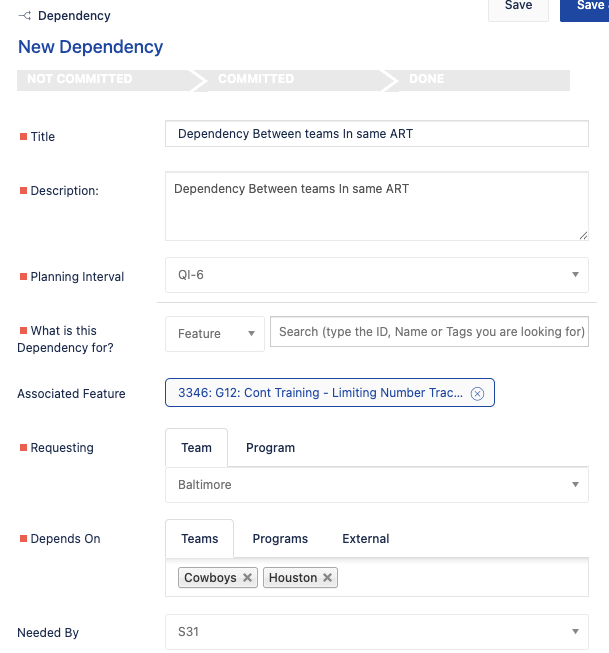

• Teams within an ART(Agile Release Train)/Program

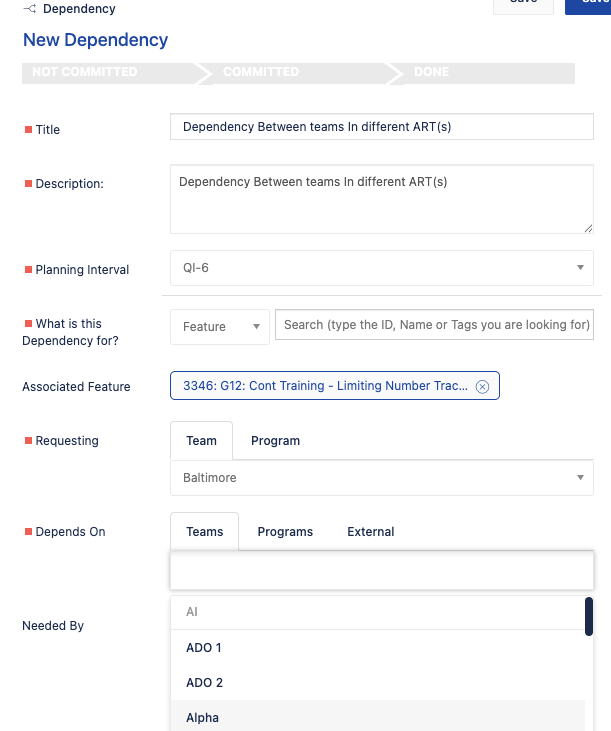

• Teams from different ART(Agile Release Train)/Program

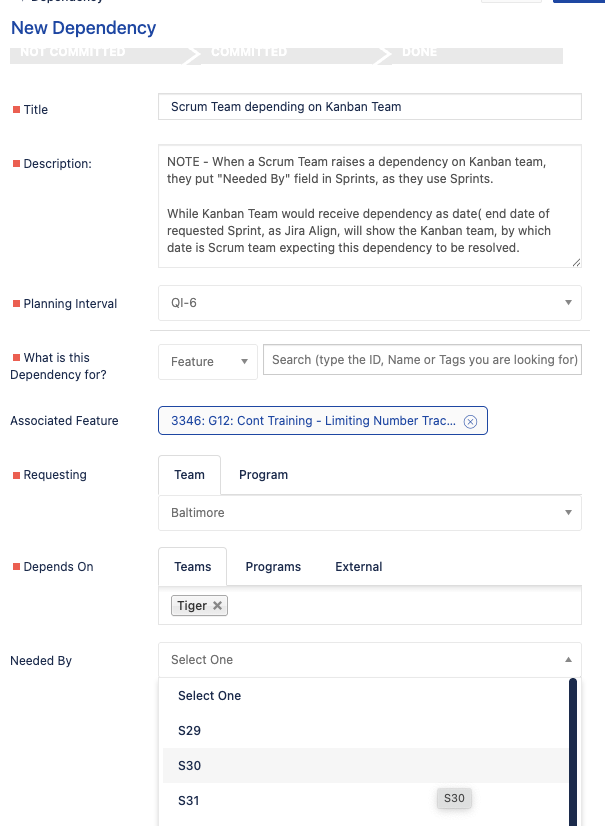

• Scrum Team depending on Kanban Team within/different ARTs

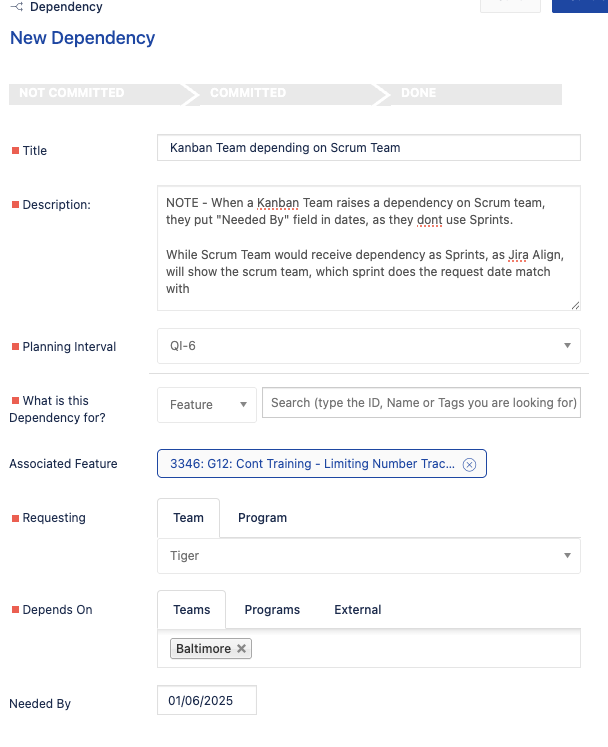

• Kanban Team depending on Scrum Team within/different ARTs

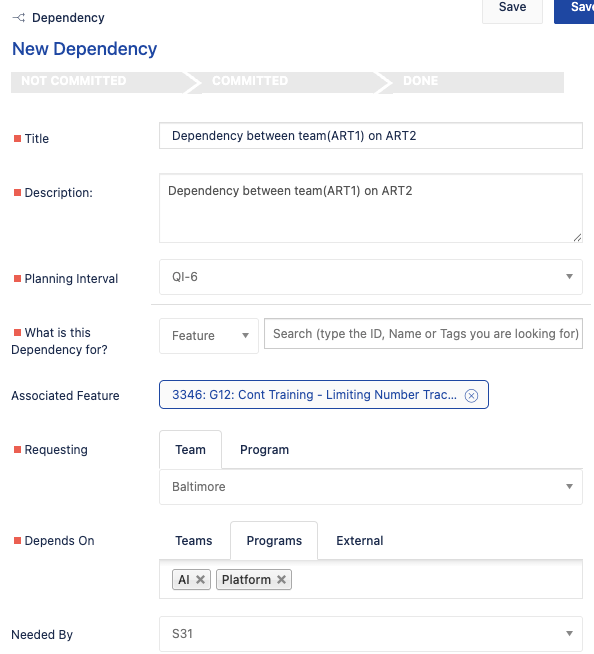

• Team(ART1) and ART2

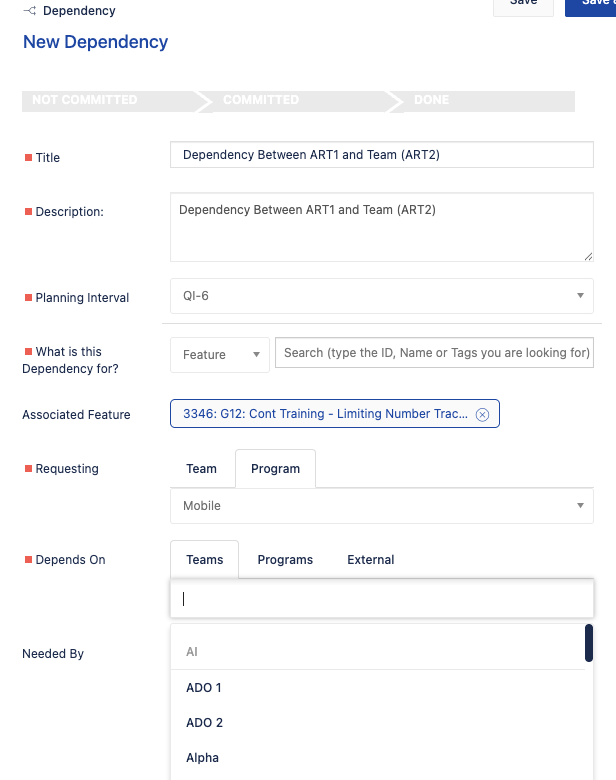

• ART and Team(ART2)

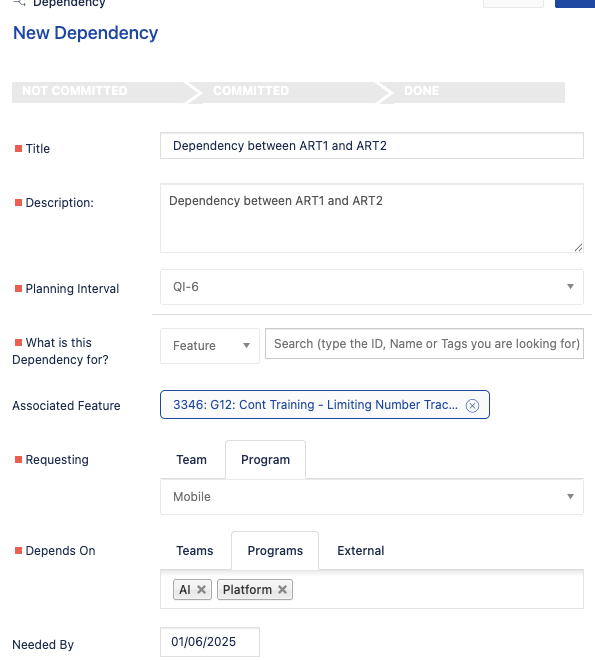

• 2 ARTs

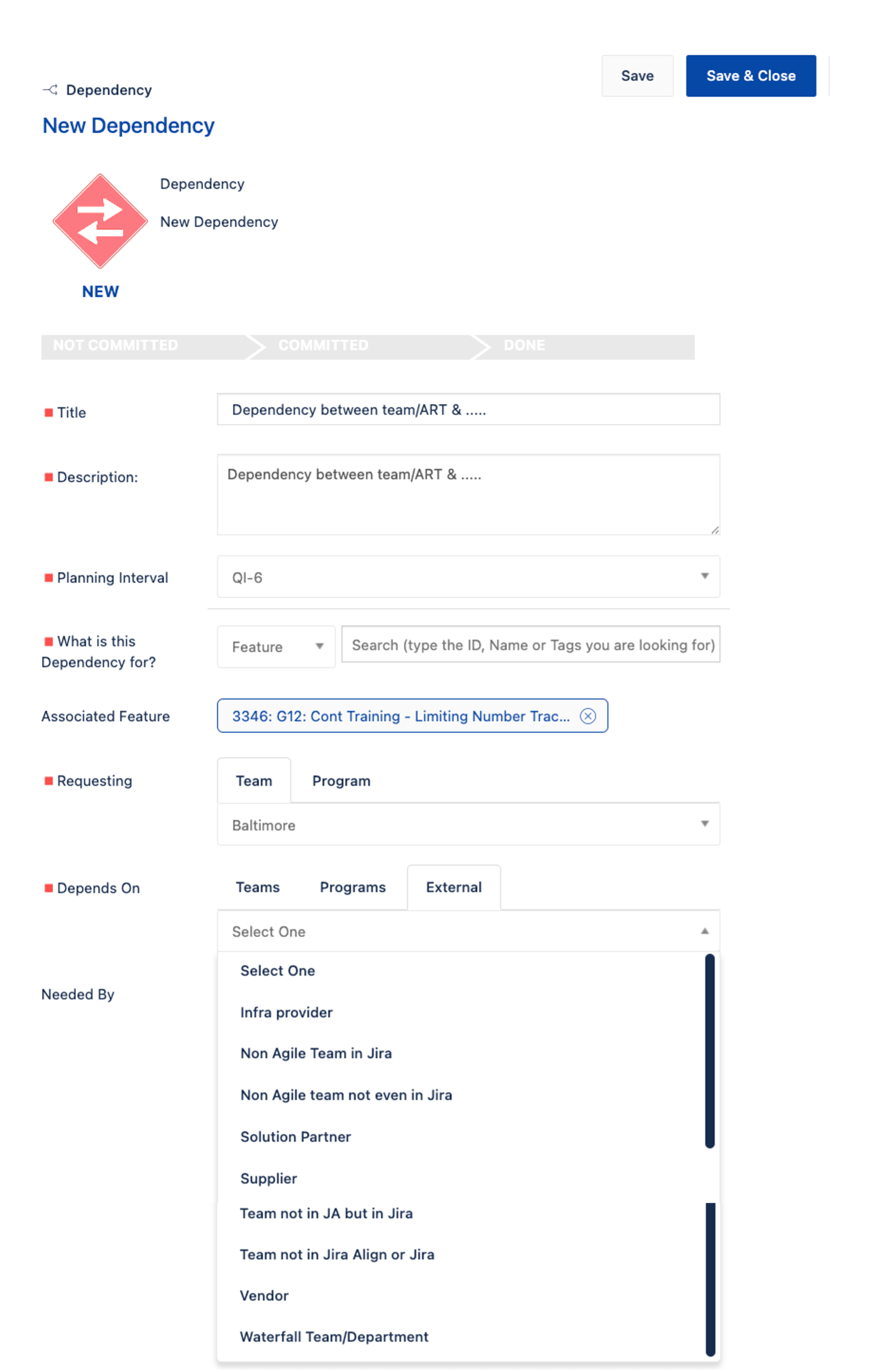

• Team/ART on External Entities like

  • Team not in JA

  • Team/Department not in Jira ( say Finance, HR..)

  • Team working in Scrum

  • Team working in Kanban

  • Team not working in Agile

  • Team not part of an organisation ( say a vendor/supplier)

All this can be visualized in Jira Align in one place.

Dependency Lifecycle(Happy Flow)

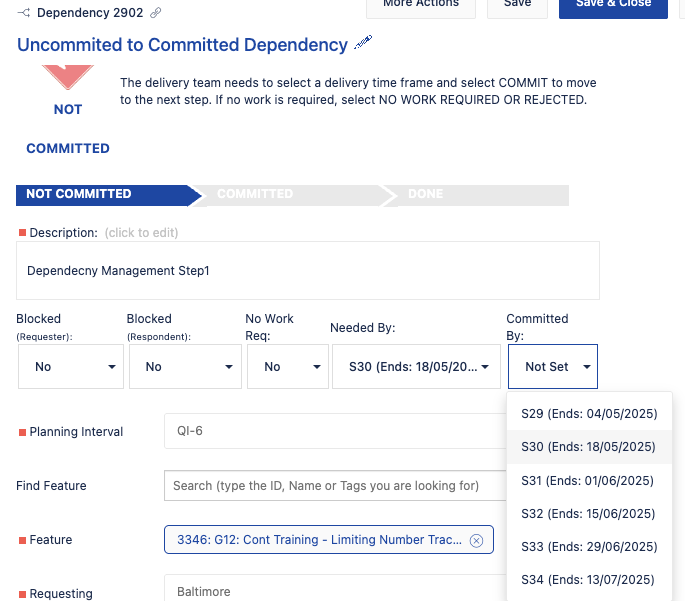

Step1 - Dependency is raised between 2 parties(requestor and respondent).

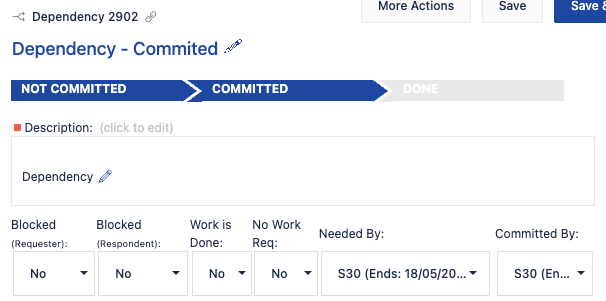

Step2 - Respondent confirms back to requestor on time proposition.

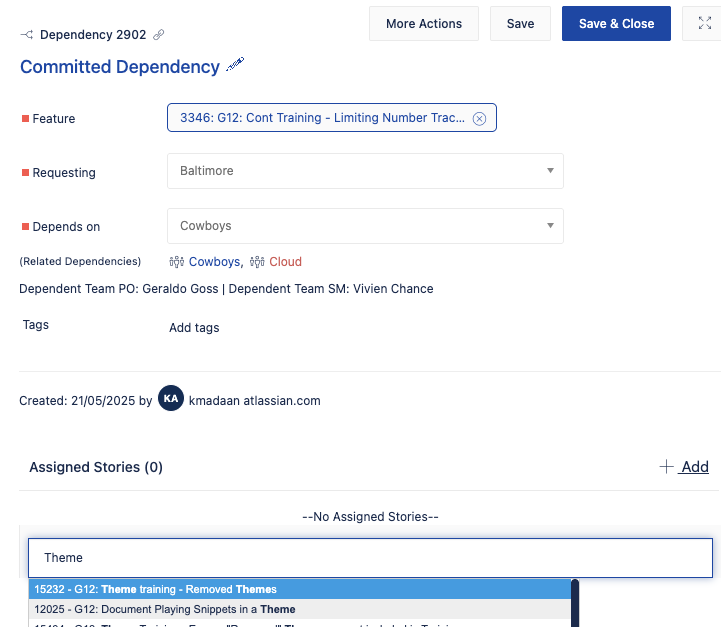

Step3 - Respondent can add work items via which the respondent team is going to resolve the dependency.

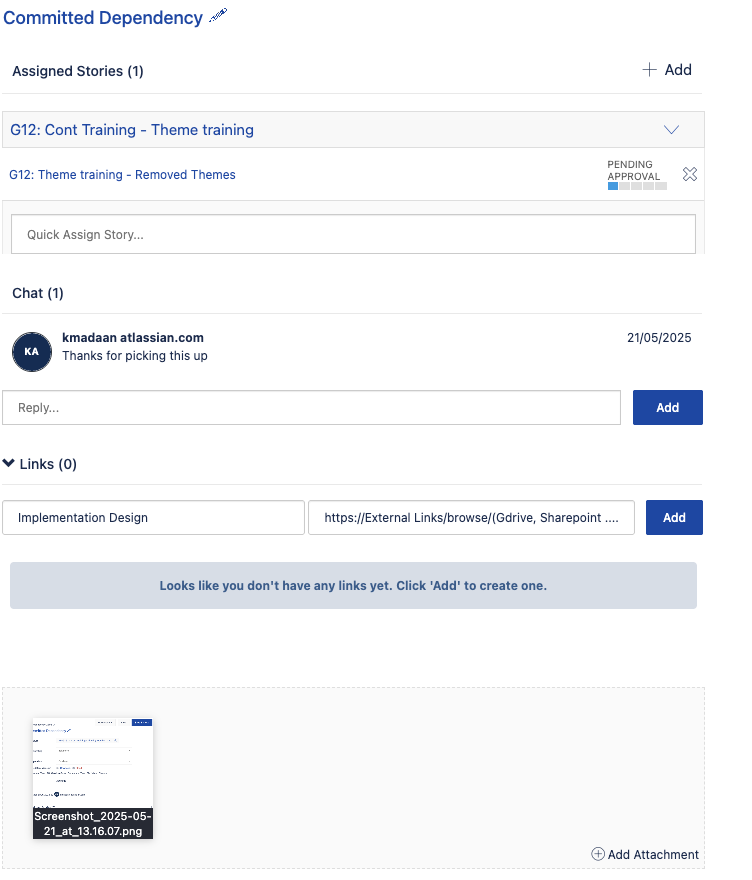

Step4 - Requestor and respondent can chat with each other regarding the dependency, add additional information links, also attachements

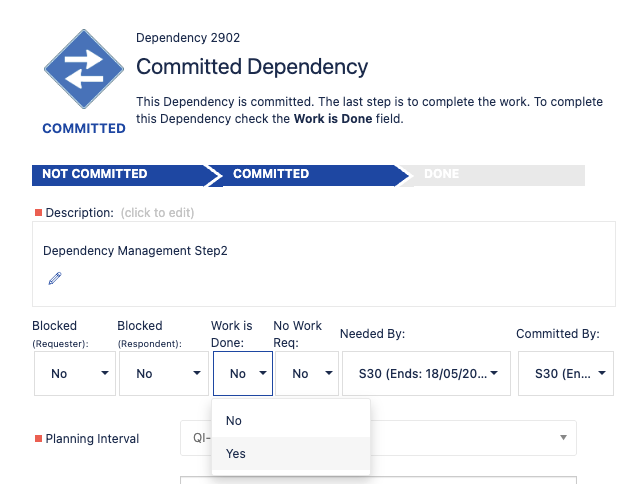

Step5 - Respondent confirms dependency has been sorted.

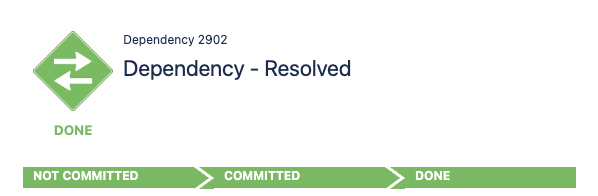

Step6-  Dependency appears as resolved.
