Team capacity is empty on timeline

Valerie Wilson

Hi,

I'm using advanced roadmap with a kanban board. When I go to the "sprint capacity management" view. The iteration estimation is empty.

Issues are estimated and estimation configuration is set to days.

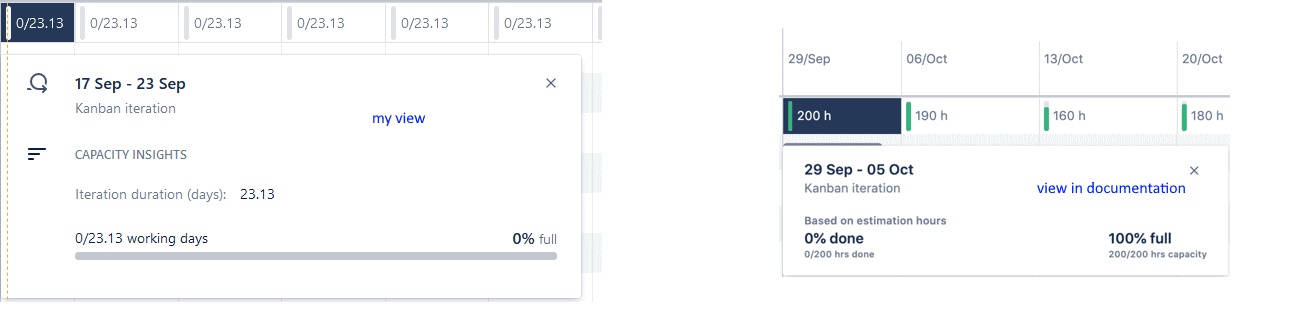

What can I do to switch from my view to the one provided in the documentation ( see screenshot)

Thank you for your help

capacity view.png

Comments

Marc -Devoteam-

Hi @Valerie Wilson

You would need to set a team on your plan, by default there is one (empty).

This team requires members (members in you project), of the project(s) that are in the plan. You need to configure the capacity of the team, this based on the estimation metric used in the plan and the project

The source of the plan needs to include the relevant kanban board, as this needs to be set as the board in the team above as well.

If my explanation is not that clear, you can find all the relevant steps and documentation here

Valerie Wilson

Hi Marc,

Thank you for your answer.

I should have mentioned it at the start, sorry for that but all the configuration you mentioned is already done.

Team is set, members added, team capacity as well and the source of the plan is my kanban board.

Can it be related to the version either of JIRA or Advanced roadmap ?

Thanks

Joni Johnson

Hello @Valerie Wilson ,

I ran into this recently. I forgot to assign the team and add story points (how I was tracking) to the Jira Issues. When I did that I expected the capacity to show and it didn't. I found a post that shared you need to assign the issue source to the team. I clicked on the Teams item on the left navigation. I edited the Team and set the Issue Source . Once I complete those steps, I was able to see the capacity bar.

Hope this helps.

Joni

Joni Johnson

Here's the link I am referencing above @Valerie Wilson

https://community.atlassian.com/t5/Jira-questions/Sprint-Capacity-not-showing-up-in-Advanced-Roadmaps/qaq-p/1962929
