Imported attachments can not be opened after import

Hackbarth_ Tim

Hello community,

we are importing issues via CSV export from an older Jira (version 7.7) to a newer instance (version 8.20).
The old Jira is running on a Windows system while the new Jira is running on an Ubuntu 20.04 server.

The attachments are correctly linked in the issues and also have the correct filesize, yet when we download the attachments and try to open it we get an error.

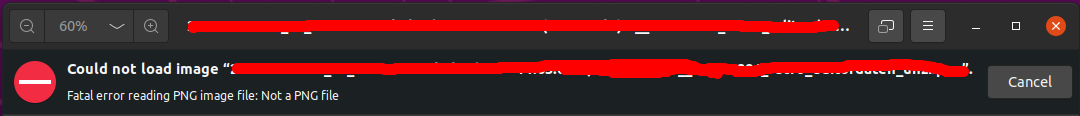

Screenshot from 2023-01-09 08-33-30.png

The links for the attachments are the same as other files.

Broken attachment: https://jira.company.de/secure/attachment/227874/2019-08-07%2010_56_53-DIZ%20PDB.png

Working attachment: https://jira.company.de/secure/attachment/229180/test.txt

I have already checked the file permissions and have reindexed Jira but the problem persisted.

I would be thankful for some input to solve this issue.

Thanks

Accepted answers

All comments

Ismael Jimoh

Good day @Hackbarth_ Tim

To migrate attachments via a CSV import, you either:

Store the attachment files on the new server in a directory the user running Jira can reach and read from or
You host it on an accessible URL link where the files can be read from and correctly mapped to the issue.

Could you confirm which of these methods was used in your case?

Also, we’re there any error or warnings during the import?

I will start my investigation from here.

To fix this you could import the attachments again using issue key and the expected attachment link.

This should update the issue creating a new attachment.

Rgds

Hackbarth_ Tim

Hello @Ismael Jimoh

thanks for the quick response.

We are storing the attachment files on the same server that Jira is running on.
The directory is owned by the jira user, so it can access the attachments.

The problem only occured with one project.
The attachments in other projects are working fine and they are stored in other directories at the same location.

During the import I only received some warnings regarding the date format.
But this was for the comments and no the attachments.

Ismael Jimoh

Thanks for the update and clarification.

Could it be the files got corrupted? If you remove and then upload the files to the server again and then perform the CSV import.

Does the issue occur for all issues in the affected project or does it happen only for some issues?

What is thrown in Jira log when you open the file.

Hackbarth_ Tim

Hello @Ismael Jimoh

I have tried your suggestion but to no avail.

I have downloaded the attachement directory for the specific project and imported this manually into the attachement directory on the target system.
After this I performed the csv import, yet i have the same errors.

I double checked all file permissions and owners, which all matched the other working attachments.

I have also checked the log during the import and i only get an warning regarding a parsing error for the date.

Cannot parse '23/Mar/18 7:15 AM;max.mustermann@sz.de;Ressorts.PNG;http:/jira.company.de/secure/attachment/34697/Ressorts.PNG' as attachment info: Unparseable date: "23/Mar/18 7:15 AM"
Cannot parse '23/Mar/18 7:14 AM;max.mustermann@sz.de;Ressorts.PNG;http://jira.company.de/secure/attachment/34696/Ressorts.PNG' as attachment info: Unparseable date: "23/Mar/18 7:14 AM"

If I open the broken attachements I can not see any logs being created.
So it is hard to provide some additional informations here.

The problem is affecting all attachements in all tickets.
