Correct JQL query for the chart that shows last 7 days issues resolved vs unresolved

Abdul Kader Broachwala

Hello,

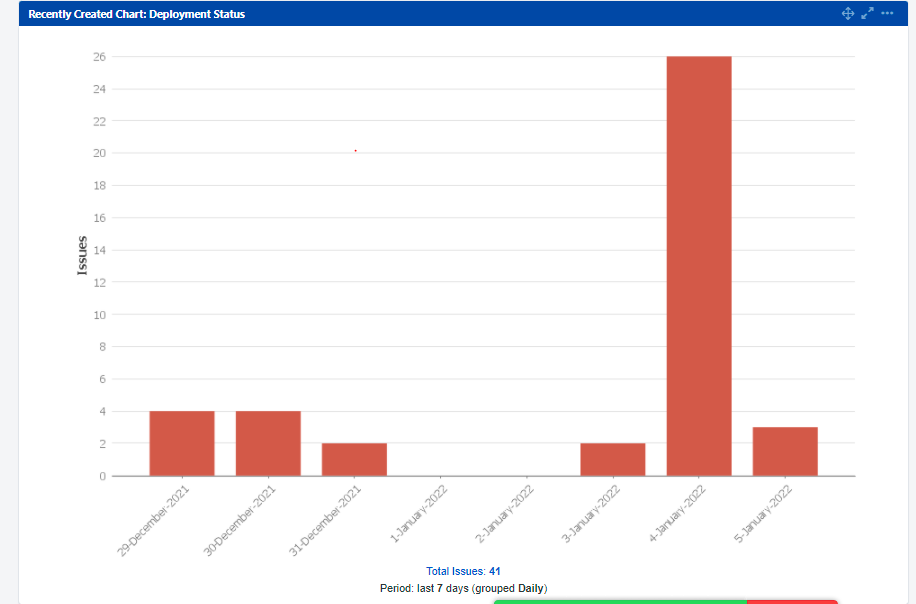

I have created a report that shows issues resolved versus unresolved for the last 7 days. However, I see the report isn't working correctly. At the moment, all the issues are showing as unresolved on the graph even if the issue status is "Done". Please find the attached screenshot. The JQL query I am using is - project = "Deployment Board" AND status = "To Do" AND status = Backlog OR status = "In Progress" OR status = Done OR updated >= -7d ORDER BY created DESC

I am not sure if I need to tweak my JQL query to populate the desired results. I would highly appreciate it if anyone could please help with my issue. Thank you in advance for your help.

Accepted answers

Vishwas

Hey @Abdul Kader Broachwala

The JQL query looks fine. Problem might be with Resolution not being set on the issues. Please check that if the issues returned in the query have Resolution set or they are showing as "Unresolved" for "Done" status issues. In case they are shown as unresolved you may have to set the resolution then only it will appear as Resolved issues.

Regards,

Vishwas

All comments

Vishwas

Hey @Abdul Kader Broachwala

Regards,

Vishwas

Nic Brough -Adaptavist-

There are three things I'd like to look at in this question.

1. You do not mention the resolution field at all. Do you know that the right issues in here have their resolutions set at the right time in their workflow cycle? To test this, try running your search in the standard search and check what the resolution field is across the results.

2. The screenshot is not of a "created vs resolved" gadget. I wouldn't expect this gadget to be showing you created vs resolved, it actually looks right to me.

3. The complex one - when you mix "and" and "or" in a query, most humans get it wrong at first, and don't really get the logic. It's not even well documented what the logic is in cases where you give Jira a potentially ambiguous query.

If you write out your query as a list of issues it is going to report on in English (I don't usefully speak any other languages apart from "gibberish" according to my family and friends, so I work in English, but the same idea can be done in most - translate your query into a list of separate groups of issues) - are you sure this is the right list?

project = "Deployment Board" AND status = "To Do" AND status = Backlog OR status = "In Progress" OR status = Done OR updated >= -7d ORDER BY created DESC

This will include issues that are:

In the project "deployment board" and in the status of "to do" and in the status of "Backlog". (Note - this means no issues will be found - issues cannot be in two status at the same time)
In the status of "in progress" across all visible projects
In the status of "done" across all visible projects
Have been updated in the last week across all visible projects

I don't think that is right (it might be, but I doubt it). I'd like to suggest you try:

Project = "deployment board" and (status in ("to do", "backlog", "in progress", "done") or updated >= -7d)

This will get you a list of issues from that one project, in any of the four status you mention, plus issues in the project that have been updated in the last week, irrespective of status.

Abdul Kader Broachwala

Hello Vishwas,

Thank you for your prompt response.

Yes, you are correct. I noticed that the resolution is not set as I see issues that are marked as in "Done" are still sitting under "Unresolved". Please see the screenshot below.

Could you please help me with how to set the resolution as "Resolved" for all "Done" issues, so on the graph, it will show Issues in "Red" that are unresolved versus in "Green" that are resolved? Thank you in advance for your help!

Abdul Kader Broachwala

Hello Nic,

Thank you for your response.

Thank you for the updated JQL query. After using the updated query the issue is still persistent. I believe this is something on my side that requires to be corrected. I think I need to set the resolution for all the issues that are marked as "Done" for the graph to work properly. I have shared the details below when I responded to Vishwas. I would appreciate it if you could please guide/help me with the same. Thank you in advance for your help!

Vishwas

Hey @Abdul Kader Broachwala

We need to set the Resolution for Done Issues. There are ways to do this one. Let me list out for you. But before that you may have to fix your workflow so that future issues don't end up like this. To fix workflow Navigate to that particular workflow --> In Edit Mode --> Add a Post function for transition that is going to Done for Set Resolution as Done(or an equivalent value in your instance). Please check out this thread where previously I had suggested a solution for similar type of issue https://community.atlassian.com/t5/Jira-Software-questions/Couldn-t-make-resolution-as-Done-for-completed-User-Stories/qaq-p/1897440

Now to set Resolution for existing Unresolved issues that are in Done Status.

1. Try a "bulk edit", but you'll need to be very careful while doing this, as you have to put the resolution field on the edit screen to enable it, and if someone edits an issue while it is there, they may resolve issues which wouldn't have been the case for them.

2. If you have scriptrunner plugin you can bulk set resolution for the affected issues. You just have to save the filter(only for done which are marked as unresolved issues). Check out this post here which guides you how to do https://docs.adaptavist.com/sr4js/latest/features/built-in-scripts/bulk-fix-resolutions

3. In case you have automation for jira plugin write an automation to set the resolution. You may have to use "Scheduled" Event to this. The same which already I have mentioned in the above link https://community.atlassian.com/t5/Jira-Software-questions/Couldn-t-make-resolution-as-Done-for-completed-User-Stories/qaq-p/1897440

Hope this helps to fix your issue !

Regards,

Vishwas

Abdul Kader Broachwala

****Please Ignore the below message****

Hi Vishwas,

Thank you for the explanation. Unfortunately, I do not see the post-function option when I edit my workflow and click on "Done". Please see the screenshot below. Any idea, if there is an alternative way to add post-function? Please advise
