Table Transformer - Merge Cells with Duplicate Rows

Emily Berg_alwhtk

Hello Community!

I would like to take the following information:

Header 1	Header 2	Header 3
Fruit	Letter A	Apple
Fruit	Letter A	Apricot
Fruit	Letter B	Banana
Fruit	Letter B	Blueberry
Fruit	Letter C	Cherry

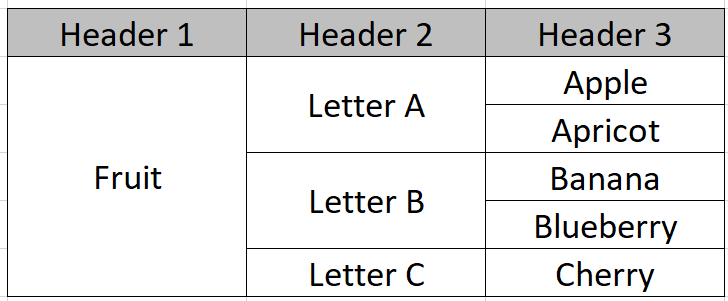

And transform it into the following:

*Updated 6-May-2021 - Original post unable to process merged cells. Removed original content and replaced with image of desired output.

Thank you for your insight!
Emily

Accepted answers

All comments

Andrey Khaneev _StiltSoft_

Hello Emily,

Here is the SQL:

SELECT T1.'Header 1', T1.'Header 2',
FORMATWIKI(SUM(T1.'Header 3' + "\n")) AS 'Header 3'
FROM T1
GROUP BY T1.'Header 1', T1.'Header 2'

And the result:

Or you can use the Pivot Table macro (it is also shipped with the Table Filter and Charts app):

Don't forget to hide totals:

Madison Small

Is there a way to use SQL but have each item after the merged column appear in it's own row with a border still around it? I know the "\n" creates a line break, but it is still making my table very messy. I would prefer them to have their own row.

Katerina Kovriga {Stiltsoft}

Hi @Madison Small ,

The Table Transformer macro sees the source table as a mini SQL database, so it can merge cells into one big cell by joining their contents. If we leave a border, then they will be counted as two separate cells and you won't get an aggregated table at all.

Maybe it will be easier to read your table when using ", " instead of the "\n": you'll get "Apple, Apricot" as a result.

matthew.hester94

@Katerina Kovriga _Stiltsoft_ How would you do something like this with labels? When I try to merge cells that container labels, then labels are turned into plain strings and lose their formatting.
