How do I disable TLS 1.0 and 1.1 for port 8443?

Question

Hello and thank you for taking my question!

I'm a junior infrastructure specialist and I am trying to disable TLS 1.0 and 1.1.

We put in the slProtocol="TLSv1.2" in the $Catalina Home server.xml file but both tls 1.0 and tls 1.2 are showing up on port 8443.

I've tried to edit the xml file but if I change the connector, the server won't start.

I see there are 2 connector ports - that could be the issue?

I saved this on my desktop and edited the format so i could fit it all in the screenshot.

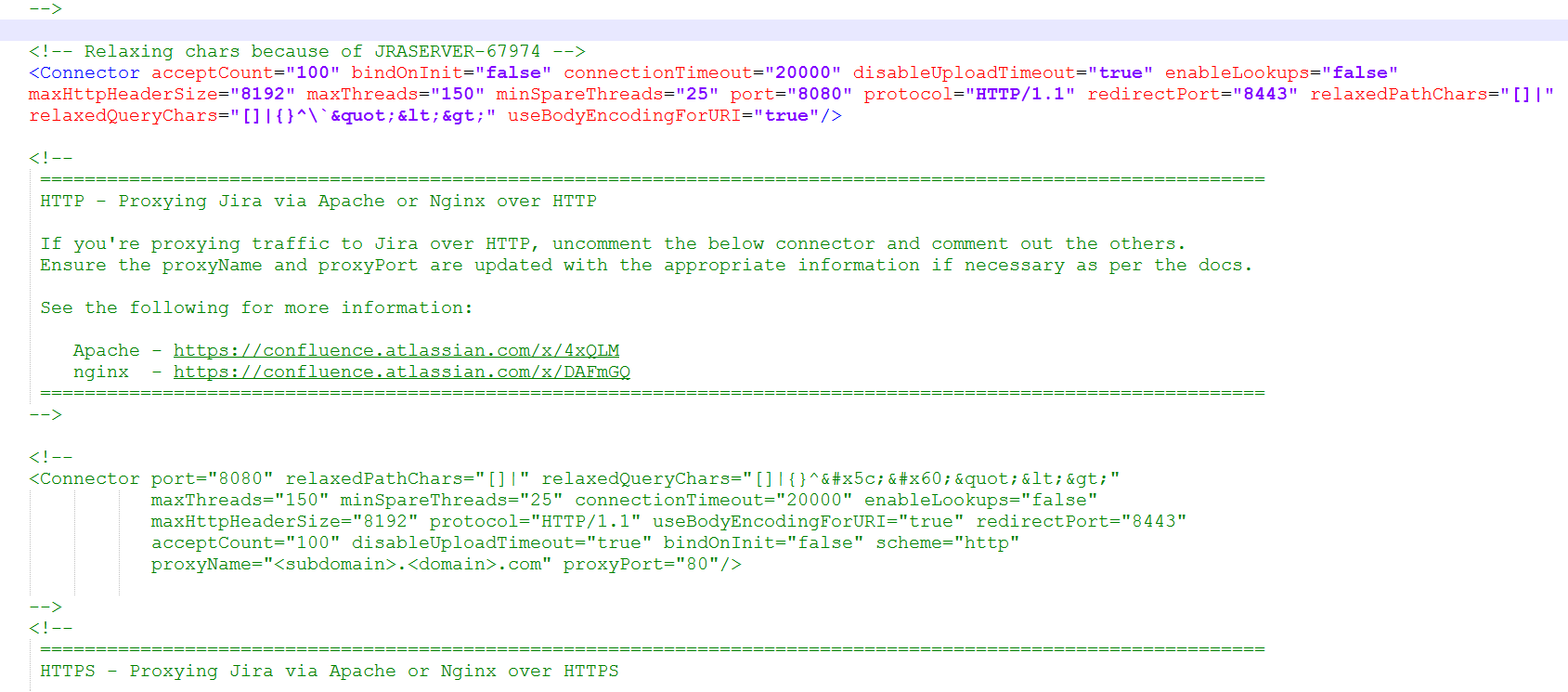

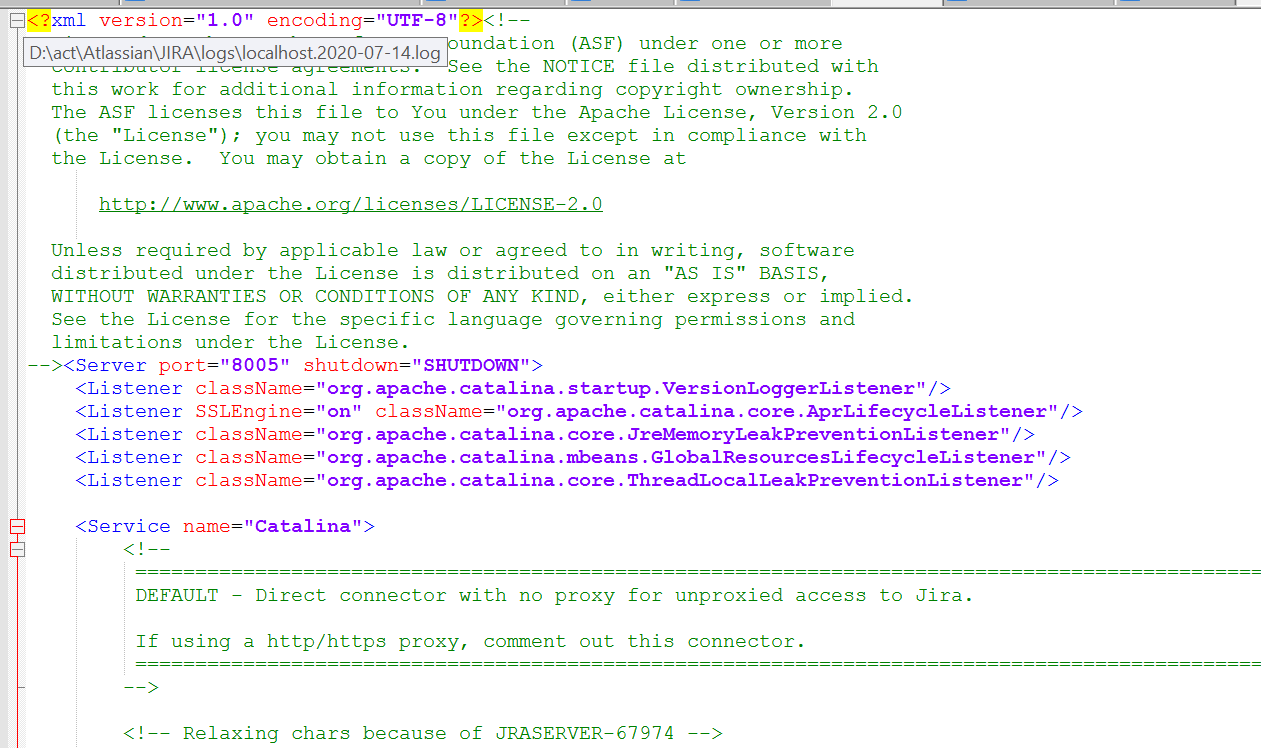

I am new to server.xml and I believe I'm almost there just need some guidance. I will attach screenshots with my server.xml file.

Thank you

Patrick S · Answer

Hello Megan, I ran into and had to fix the same problem myself. The issue is that the TLS connection header that gets pushed out in the JIRA server.xml uses the old Tomcat 5&6 format, and newer versions of JIRA use Tomcat 8.

When I first tried simply setting the sslProtocol to v1.2, our security scans (using Tenable) still showed the JIRA instance offering 1.0 and 1.1.

sslProtocl="TLSv1.2"

To fix it, I replaced sslProtocol with the supported Tomcat tag sslEnabledProtocols and then cycled the website.

sslEnabledProtocols="TLSv1.2"

NOTE: This is all without a proxy.

Daniel Ebers · Answer

Hi @Megan Larson

welcome to the Atlassian Community!

I believe the most important question is if there is a reverse proxy (IIS, Apache or nginx) running in front of Jira - in that case the configuration would have been to adjusted there.

In all other cases (especially if there is no reverse-proxy) the following guide should sort out things:
https://confluence.atlassian.com/jirakb/how-to-disable-sslv3-to-mitigate-against-poodle-exploit-for-jira-680395044.html

If it is then still offering TLS 1.0/1.1 please let us know - perhaps any further debug can then happen from the remote (although tricky).

Cheers,
Daniel
