Problem with iframe in DIV macro

jonb_6h2c67

I am creating a DIV macro that will allow users to place custom <div> tags and place content within the div.

I tested with an iframe and i noticed that there are extraneous tags being displayed as plain text after the iframe.

I'm just basing this test on the "collapse" macro from this page: https://confluence.atlassian.com/conf73/writing-user-macros-991928530.html

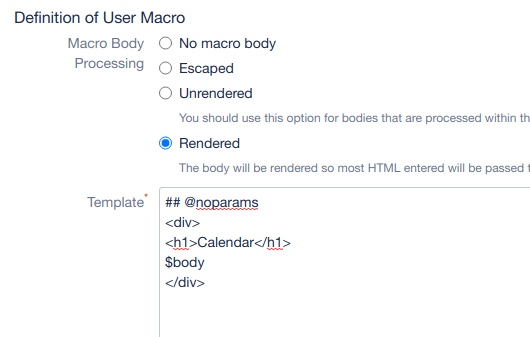

I'm putting the HTML macro with my iframe within my DIV macro.

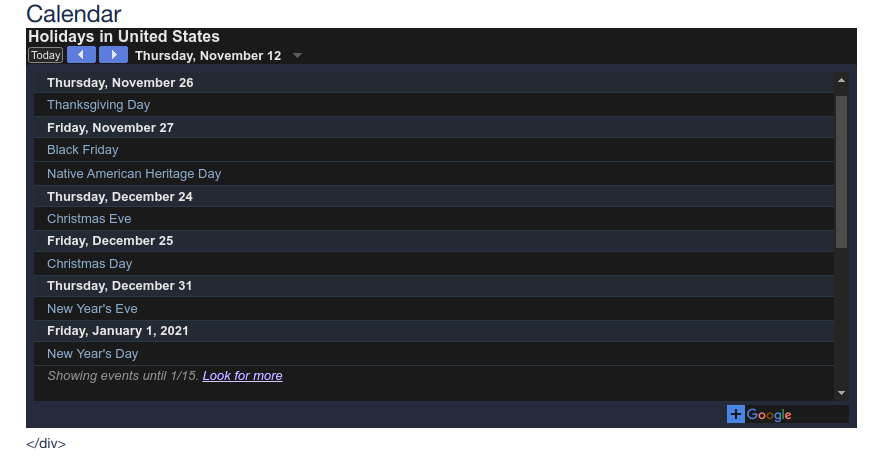

screenshot_2020-11-12_08.32.09_img.png This is what the rendered page looks like. The iframe is correctly inside my div container, but there is an extra "</div>" printed after the iframe

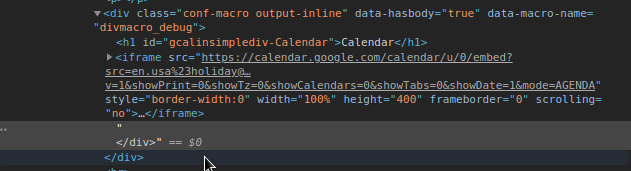

Looking at the page source, the </div> is both in the html as expected but also in some text after the iframe.


This becomes even more of a problem if you have nested div macros or tables, it seems to print out any closing tags after the iframe.

I've tested with a few other websites in the iframe with similar results.

Accepted answers

Bill Bailey

Why are you nesting a HTML macro inside the body of the macro? I would just structure the macro so that all the HTML is inside the user macro, and then you can either have body hold the src link, or even make it a parameter with no macro body. Then use the parameters in your code.

I would also make the width and height parameters to make it more configurable.

If you need the HTML macro, then move that instance to inside the user macro. Take a look at this article I wrote awhile back on wrapping a macro: Getting Started with User Macros - Writing a Wrapper Macro

All comments

Bill Bailey

I would also make the width and height parameters to make it more configurable.

jonb_6h2c67

Thanks for the info Bill, I'll take a look at your article.

The original intent was to have a generic div macro that could include any content like text or other macros. This would help tie in with custom stylesheets and being able to style elements with a surrounding div id/class.

Are there known issues with nested macros?

Bill Bailey

I think the issue with nested macros is unpredictability with the rendered output. I have always gone the route or wrapping a macro if needed.

jonb_6h2c67

I see. Yeah I've been trying to generalize macros as best i can and then nest any existing macros inside, but like you said I've also ran into some strange cases of the output not behaving as expected.

I'll try making a simple iframe specific macro and see if that has any similar issues.

For the most part, I haven't had issues with the nested div macros in my post. But seems to be something with how the iframe is processed in conjunction with the macro.
