How can I configure OAuth 2.0 in order to be able to create issues based on received mail in JSD?

JConstantine

When I tried to set OAuth 2.0 as the authentication method in Incoming Mail settings I realized that it's not on the list:

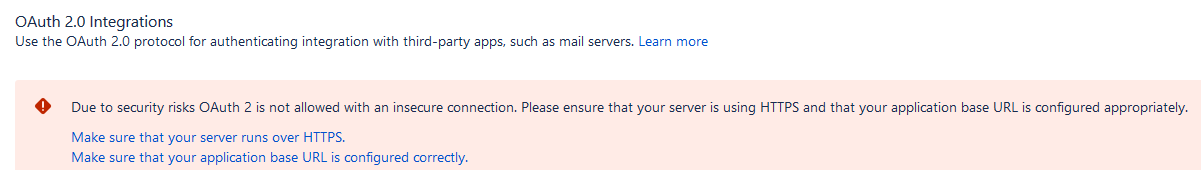

Then I checked the OAuth 2.0 settings:

I'm not using HTTPS at the moment. Here Running Jira applications over SSL or HTTPS

in the documentation it is said: If you need help with configuring SSL, create a question on the Atlassian community. So, I'd like to know how can I configure HTTPS in order to be able to enable the OAuth 2.0 authentication method?

Accepted answers

All comments

Daniel Eads

Hi @JConstantine ,

Based on some of your other recent posts, I believe you're running Jira on Windows. This means you've got a few options available to you in order to run Jira over HTTPS:

nginx - it's very fast and I find the configuration easiest to understand. How-to for nginx and Jira
Apache - widely used, widely supported. Instructions for Apache and Jira here
IIS - has the advantage of being in Windows Server already and some people like having the manager GUI. Setup guide for IIS and Jira here
You can also run Jira's application server directly on HTTPS, although I personally recommend using an actual reverse proxy instead.

In any case, it's expected that you've got a valid certificate signed by a public certificate authority in order to get HTTPS configured and OAuth working for email. If you don't have one already, you can get one free from Let'sEncrypt.

If you have specific troubles after selecting which reverse proxy you're going to use, I'm happy to help!

Cheers,
Daniel

JConstantine

@Daniel EadsWill nginx work for me I'm using Windows Storage Server 2012R2 or should I use IIS if I have a server OS? Is there an Atlassian guide on configuring Jira Tomcat Server to use Let's Encrypt certificate on Windows? On the official Let's Encrypt documentation page (Let's Encrypt documentation ) the following is written:

To figure out what method will work best for you, you will need to know whether you have shell access (also known as SSH access) to your web host. If you manage your website entirely through a control panel like cPanel, Plesk, or WordPress, there’s a good chance you don’t have shell access. You can ask your hosting provider to be sure.

I installed Jira Software using the Installer. How do I know if I have SSH access to Tomcat server that Jira's working on?

From Let's Encrypt documentation:

To kick off the process, the agent asks the Let’s Encrypt CA what it needs to do in order to prove that it controls example.com. The Let’s Encrypt CA will look at the domain name being requested and issue one or more sets of challenges. These are different ways that the agent can prove control of the domain. For example, the CA might give the agent a choice of either:

Provisioning a DNS record under example.com, or
Provisioning an HTTP resource under a well-known URI on <a href="http://example.com/" target="_blank" rel="noopener nofollow noreferrer">http://example.com/</a>

I don't really understand how can I complete these challenges, because I've never worked with certificates before. What should I do first get the certificate or set up the reverse proxy and where's the connection between those processes? And what about this article: <a href="https://confluence.atlassian.com/adminjiraserver/running-jira-applications-over-ssl-or-https-938847764.html" target="_blank" rel="noopener nofollow noreferrer">Running Jira applications over SSL or HTTPS</a> ?<br><br>I'm quite confused, because I'm new to this topic and don't really understand where should I start and what is the sequence of required actions from A to Z - the consistency.

JConstantine

As I'm not proxying JIRA at the moment the following connector is set up in server.xml file:

There are connectors for proxying Jira via Apache and Nginx and they are commented at the moment. But there's no connector for IIS. According to the documentation I have to put this connector:

instead of the one that's currently set up in server.xml, right?

What do the following lines from the current configuration mean and do I need to put them into the new connector for IIS?

Relaxing chars because of JRASERVER-67974
relaxedPathChars="[]|" relaxedQueryChars="[]|{}^\`"<>"

use proxyPort="443" and scheme="https" in case the SSL is being terminate at IIS.

What does in case the SLL is being terminate at IIS mean?

Daniel Eads

The choice between IIS and nginx is whichever you're most comfortable with - both will run on Windows Server 2012.

We don't have official documentation on using LetsEncrypt - our documentation starts with the assumption that you've been able to procure a certificate already and are going to use that with your proxy. I would not recommend using LetsEncrypt with serving HTTPS directly from Jira. LetsEncrypt gives you a certificate with a relatively short expiration period - you'll want to have certbot renew this certificate for you. And that's difficult to do when trying to serve HTTPS directly from Tomcat/Jira, because the certificate has to be imported into the Java keystore rather than just sitting as a file on disk.

I'd suggest these actions in this order for you:

Get a web server set up - either IIS or nginx, and serve a simple "Hello world" page over HTTP / port 80 so you know the web server is running. The default web page either of those serve up is fine. While it's not many steps to download and run nginx, it doesn't install itself as a Windows Service so you need to take some additional action to make sure it runs when you reboot. Here's an article for getting that set up after nginx is installed
Procure a certificate - if you're using Let's Encrypt, set it up so that the certificate automatically renews itself. Don't insert the certificate into Jira - insert it at the proxy. Here's some instructions for doing this on Windows with nginx
Only after you've completed the above steps, configure Jira to be proxied over HTTPS. Here's the one document to do the https proxy with nginx and Jira .

As far as the other questions - I think the above path will bypass a lot of the questions that you have. But I'll try and answer some if that helps give you a better picture:

If you're going to use IIS, then yes - you'll need to copy in a new connector as the IIS article mentions. The connectors for Apache / nginx that are already in the file can be uncommented if you're using one of those - which the setup guides for those will have you do
The relaxedPathChars prevents some characters that might be in a URL, like "&" from potentially breaking the proxy setup. Whichever guide you follow should specify if you need to do this for whichever proxy you're using.
Terminating SSL at IIS (or nginx) means that the proxy is where the certificate is installed, and that's where user's browsers would get the HTTPS connection from. In a simple diagram, you'd have:
```
(user's computer)  <--HTTPS-->  (IIS)  <--HTTP-->  (Jira)
```
When users interact via https://yourjira.whatever.com - it's IIS or nginx that is serving the site over HTTPS - or "terminating the SSL connection". The traffic between IIS and Jira doesn't use SSL/TLS in this scenario - it's regular unencrypted HTTP.
