In JIRA Two Filter Dimensional gadget, the fix version is showing multiple times.

Prasad Andrews

Hi Team,

We are using Jira Two Filter Dimensional Gadget, the fix version is shown multiple times if it’s used in different projects.

For example, I have 5 projects am I using the same fix versions for all the projects. But when added the gadget in dashboard the fix version is showing multiple times.

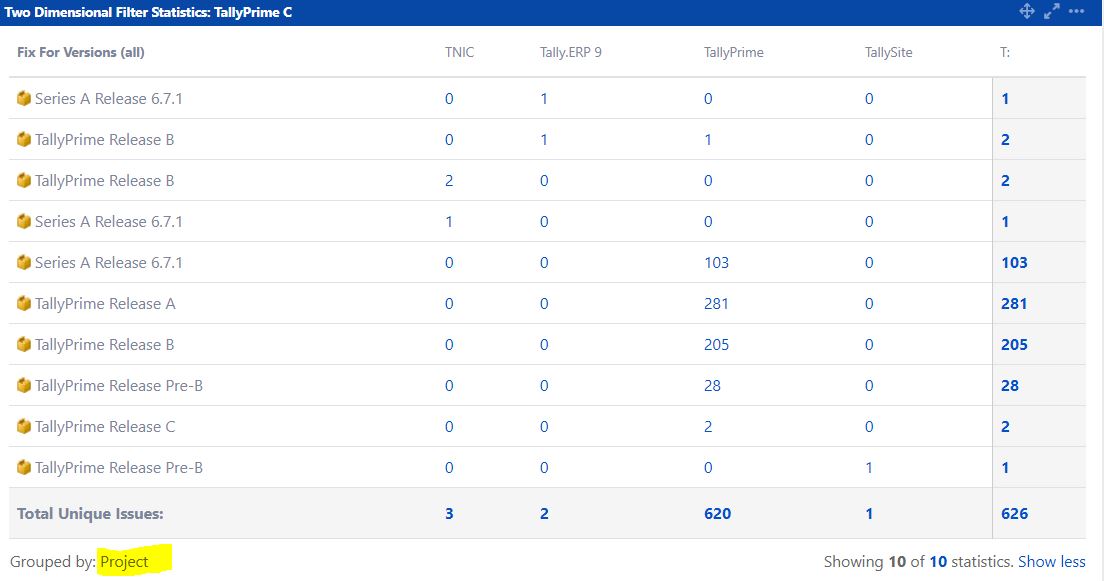

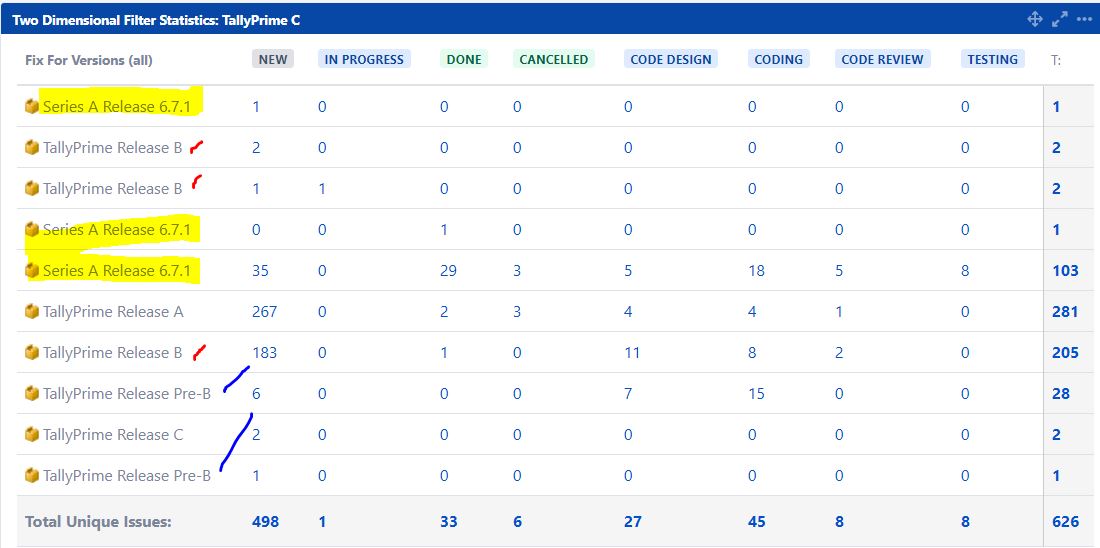

Please find the attached screenshot.

Accepted answers

All comments

Andy Heinzer

Hi Prasad,

I see that you are trying to use the two dimension gadget in Jira in order to list Versions, but are unexpectedly seeing these duplicate in the gadget.

The reason for this is that the version field is not actually a global field. Instead versions are a system field that are unique and specific to each project. It's clear that you have created the same version name in each of these projects, but in the back-end of Jira (the SQL database), each of these versions is different on a for each project. You can clearly see this yourself with a SQL query such as:

select * from projectversion;

In my example Jira database, I get back results like so:

id project vname description sequence released archived url startdate releasedate
10002 10000 "Version 3.0" NULL 3 NULL NULL NULL NULL NULL
10100 10100 "Version 3.0" 1 NULL NULL NULL NULL NULL NULL

Even though I have two versions called "Version 3.0", these exist in different projects (which have different projectid numbers 10000 and 10100), and technically each version has it's own unique id number.

Given this, I'm not sure how to best suggest condensing this information. But I at least hope this helps you to understand why Jira is displaying the data there as such.

Please let me know if you have any concerns about this.

Andy

Prasad Andrews

Hi @Andy Heinzer ,

Thanks, much for your explanation, I understand but how can I get the report without seeing the duplicates in the gadget.

Is there any other way?

Also, earlier we use Jira v7.9 that time we didn't face this issue now we are using v8.2.5 facing this issue.

Andy Heinzer

Hi Prasad,

I tried to recreate this behavior in 8.7.1 first. And after your last comment, I tried again in both 7.12.3 and 7.9.0. However in all of these tested versions the behavior of that gadget is identical in terms of how versions across projects are managed in the two dimensional gadget. They all list versions on a per project basis, none of these merge the versions of the same names across projects.

Screen Shot 2020-04-03 at 8.50.01 AM.png

So I'm not sure how you might have had this working differently in 7.9.0 that might account for the changed behavior here.

Is it possible you were using a different field in the gadget to select upon aside from versions?
Or is it possible the JQL query this gadget is using was previously using a specific project, such as project=xyz in the syntax of the JQL?

It could be that if you were using some other global custom field that this two dimensional gadget could list all the issues across projects provided they all at least have some value for the custom field there. OR if the JQL filter being used previously was limiting the results to a single project, that too would only ever show the versions of that project.

I'm not sure how else to explain what you have reported here apart from the gadget being configured to report on a different field. I can't seem to recreate any means to aggregate this version data within Jira itself. I am open to the idea that this might be a bug in Jira, but in order to prove that, I'd need to find a version of Jira that operated in a different manner and be able to recreate that behavior there.

It might be possible to use a SQL query to lookup and aggregate this kind of data. But this would not be something you can easily then see in a dashboard gadget.

Sorry I don't have a better solution here so far, but I'm interested to learn more about how you had this configured in previous versions of Jira that might account for the difference here.

Andy

Prasad Andrews

Hi @Andy Heinzer ,

Sorry for the misguided yes I have checked my older version 7.9.2 it's throwing the same error duplicate versioning.

How to fix this issue? Is it Bug in JIRA?

Regards,

Prasad

Sathish Muthukrishnan

Hi @Andy Heinzer ,

I exactly have the same problem, we have product release that span across projects. To make it simple, a product version 1.0 will have multiple project. Tried to pull a report based on release version and seeing duplicates. I know there is already a ticket raised and deferred to fix due to low traction. Things are changing rapidly and do you guys have to plans to fix this issue.

Regards,

Sathish
