Environments
- Official Docker image atlassian/confluence-server:7.0.1
- Install via in-house helm charts to Google Kubernetes Engine
- GCE persistent disk is mounted as /var/atlassian/application-data/confluence/data/
- Google CloudSQL is used as database server, with PostgreSQL version 9.6
- Access was via sqlproxy
- Separate database and user were created. The confluence db user is the owner of the confluence database
- Evaluation license was used
- Following environment variables are set
- CONFLUENCE_HOME: /var/atlassian/application-data/confluence/data/
- ATL_DB_TYPE: postgresql
- ATL_JDBC_URL: jdbc:postgresql://***-gcloud-sqlproxy.sqlproxy:5432/confluence-**
- ATL_JDBC_USER
- ATL_JDBC_PASSWORD
Before Entering Setup
I can see from /var/atlassian/application-data/confluence/data/logs/atlassian-confluence.log and it looks good
2019-10-11 05:02:35,328 INFO [Catalina-utility-1] [com.atlassian.confluence.lifecycle] contextInitialized Starting Confluence 7.0.1 [build 8202 based on commit hash 6ec4be8a9be53dc4390b2cd3f9a4c5731ee93a77] - synchrony version 3.1.0-master-8becbfc8
2019-10-11 05:02:43,716 WARN [Catalina-utility-1] [com.atlassian.config.ApplicationConfig] setApplicationHome Application home does not exist. Creating directory: /var/atlassian/application-data/confluence/data/shared-home
2019-10-11 05:02:43,727 INFO [Catalina-utility-1] [atlassian.confluence.cluster.DefaultClusterConfigurationHelper] lambda$saveSetupConfigIntoSharedHome$9 Writing setup configuration into shared home...
2019-10-11 05:02:43,749 INFO [Catalina-utility-1] [atlassian.confluence.cluster.DefaultClusterConfigurationHelper] lambda$saveSetupConfigIntoSharedHome$9 Finished writing setup configuration into shared home
2019-10-11 05:02:47,459 INFO [Catalina-utility-1] [atlassian.plugin.manager.DefaultPluginManager] lambda$earlyStartup$3 Plugin system earlyStartup begun
2019-10-11 05:02:52,487 WARN [FelixStartLevel] [extender.internal.support.ExtenderConfiguration] addDefaultDependencyFactories Gemini Blueprint extensions bundle not present, annotation processing disabled.
2019-10-11 05:02:56,435 INFO [Catalina-utility-1] [atlassian.plugin.manager.DefaultPluginManager] logTime Plugin system earlyStartup ended
2019-10-11 05:02:56,443 INFO [Catalina-utility-1] [atlassian.plugin.manager.DefaultPluginManager] lambda$lateStartup$4 Plugin system lateStartup begun
2019-10-11 05:02:59,912 INFO [Catalina-utility-1] [atlassian.plugin.manager.DefaultPluginManager] logTime Plugin system lateStartup ended
2019-10-11 05:03:01,154 INFO [Catalina-utility-1] [com.atlassian.confluence.lifecycle] init Confluence is ready to serve
Problem Description
After inputing license, the page returned 500 error and atlassian-confluence.log showed:
2019-10-11 05:11:18,704 ERROR [http-nio-8090-exec-6] [engine.jdbc.spi.SqlExceptionHelper] logExceptions ERROR: relation "bandana" does not exist
Position: 181
-- referer: https://xxxxxx/setup/setuplicense.action | url: /setup/setupdbtype.action | traceId: 0096d582876d148d | userName: anon
ymous
2019-10-11 05:11:18,853 ERROR [http-nio-8090-exec-6] [atlassian.confluence.servlet.ConfluenceServletDispatcher] sendError Could not execute action
-- referer: https://xxxxxx/setup/setuplicense.action | url: /setup/setupdbtype.action | traceId: 0096d582876d148d | userName: anonymous
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'i18NBean' defined in class path resource [i18NContext.xml]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.atlassian.confluence.util.i18n.I18NBean]: Factory method 'getI18NBean' threw exception; nested exception is java.util.concurrent.CompletionException: org.springframework.dao.InvalidDataAccessResourceUsageException: could not extract ResultSet; SQL [n/a]; nested exception is org.hibernate.exception.SQLGrammarException: could not extract ResultSet
Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.atlassian.confluence.util.i18n.I18NBean]: Factory method 'getI18NBean' threw exception; nested exception is java.util.concurrent.CompletionException: org.springframework.dao.InvalidDataAccessResourceUsageException: could not extract ResultSet; SQL [n/a]; nested exception is org.hibernate.exception.SQLGrammarException: could not extract ResultSet
at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:622)
... 229 more
Caused by: java.util.concurrent.CompletionException: org.springframework.dao.InvalidDataAccessResourceUsageException: could not extract ResultSet; SQL [n/a]; nested exception is org.hibernate.exception.SQLGrammarException: could not extract ResultSet
at java.util.concurrent.CompletableFuture.encodeThrowable(Unknown Source)
at java.util.concurrent.CompletableFuture.completeThrowable(Unknown Source)
at java.util.concurrent.CompletableFuture.uniHandle(Unknown Source)
at java.util.concurrent.CompletableFuture.uniHandleStage(Unknown Source)
at java.util.concurrent.CompletableFuture.handle(Unknown Source)
at java.util.concurrent.CompletableFuture.handle(Unknown Source)
at com.atlassian.confluence.impl.concurrency.CompletionStageUtils.foldResult(CompletionStageUtils.java:19)
at com.atlassian.confluence.impl.vcache.SynchronousExternalCache.get(SynchronousExternalCache.java:236)
at com.atlassian.confluence.setup.bandana.ConfluenceCachingBandanaPersister.retrieve(ConfluenceCachingBandanaPersister.java:78)
at com.atlassian.confluence.setup.bandana.ConfluenceCachingBandanaPersister.retrieve(ConfluenceCachingBandanaPersister.java:71)
at com.atlassian.bandana.DefaultBandanaManager.getValue(DefaultBandanaManager.java:32)
at com.atlassian.bandana.DefaultBandanaManager.getValue(DefaultBandanaManager.java:24)
at com.atlassian.confluence.setup.settings.DefaultSettingsManager.getGlobalSettings(DefaultSettingsManager.java:40)
at com.atlassian.confluence.languages.DefaultLocaleManager.getSiteDefaultLocale(DefaultLocaleManager.java:211)
at com.atlassian.confluence.languages.DefaultLocaleManager.getLocaleInfo(DefaultLocaleManager.java:113)
at com.atlassian.confluence.languages.DefaultLocaleManager.getLocale(DefaultLocaleManager.java:195)
at com.atlassian.confluence.util.i18n.UserI18NBeanFactory.getUserLocale(UserI18NBeanFactory.java:44)
at com.atlassian.confluence.util.i18n.UserI18NBeanFactory.getI18NBean(UserI18NBeanFactory.java:34)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154)
... 230 more
Caused by: org.springframework.dao.InvalidDataAccessResourceUsageException: could not extract ResultSet; SQL [n/a]; nested exception is org.hibernate.exception.SQLGrammarException: could not extract ResultSet
at org.springframework.orm.hibernate5.SessionFactoryUtils.convertHibernateAccessException(SessionFactoryUtils.java:230)
at org.springframework.orm.hibernate5.HibernateTemplate.doExecute(HibernateTemplate.java:391)
at org.springframework.orm.hibernate5.HibernateTemplate.execute(HibernateTemplate.java:336)
at com.atlassian.confluence.setup.bandana.persistence.dao.hibernate.HibernateConfluenceBandanaRecordDao.getRecord(HibernateConfluenceBandanaRecordDao.java:48)
at com.atlassian.confluence.setup.bandana.ConfluenceDaoBandanaPersister.retrieve(ConfluenceDaoBandanaPersister.java:29)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:343)
at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:198)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:295)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:98)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:212)
at com.sun.proxy.$Proxy212.retrieve(Unknown Source)
at com.atlassian.confluence.setup.bandana.ConfluenceCachingBandanaPersister.lambda$retrieve$0(ConfluenceCachingBandanaPersister.java:80)
at com.atlassian.confluence.impl.vcache.SynchronousExternalCache.lambda$get$11(SynchronousExternalCache.java:239)
at com.atlassian.confluence.impl.concurrency.CompletionStageUtils.lambda$foldResult$0(CompletionStageUtils.java:19)
... 251 more
Caused by: org.hibernate.exception.SQLGrammarException: could not extract ResultSet
at org.hibernate.exception.internal.SQLStateConversionDelegate.convert(SQLStateConversionDelegate.java:106)
at org.hibernate.exception.internal.StandardSQLExceptionConverter.convert(StandardSQLExceptionConverter.java:42)
at org.hibernate.engine.jdbc.spi.SqlExceptionHelper.convert(SqlExceptionHelper.java:111)
at org.hibernate.engine.jdbc.spi.SqlExceptionHelper.convert(SqlExceptionHelper.java:97)
at org.hibernate.engine.jdbc.internal.ResultSetReturnImpl.extract(ResultSetReturnImpl.java:80)
at org.hibernate.loader.Loader.getResultSet(Loader.java:2123)
at org.hibernate.loader.Loader.executeQueryStatement(Loader.java:1911)
at org.hibernate.loader.Loader.executeQueryStatement(Loader.java:1887)
at org.hibernate.loader.Loader.doQuery(Loader.java:932)
at org.hibernate.loader.Loader.doQueryAndInitializeNonLazyCollections(Loader.java:349)
at org.hibernate.loader.Loader.doList(Loader.java:2615)
at org.hibernate.loader.Loader.doList(Loader.java:2598)
at org.hibernate.loader.Loader.listIgnoreQueryCache(Loader.java:2430)
at org.hibernate.loader.Loader.list(Loader.java:2425)
at org.hibernate.loader.hql.QueryLoader.list(QueryLoader.java:502)
at org.hibernate.hql.internal.ast.QueryTranslatorImpl.list(QueryTranslatorImpl.java:370)
at org.hibernate.engine.query.spi.HQLQueryPlan.performList(HQLQueryPlan.java:216)
at org.hibernate.internal.SessionImpl.list(SessionImpl.java:1481)
at org.hibernate.query.internal.AbstractProducedQuery.doList(AbstractProducedQuery.java:1441)
at org.hibernate.query.internal.AbstractProducedQuery.list(AbstractProducedQuery.java:1410)
at com.atlassian.confluence.setup.bandana.persistence.dao.hibernate.HibernateConfluenceBandanaRecordDao.lambda$getRecord$0(HibernateConfluenceBandanaRecordDao.java:52)
at org.springframework.orm.hibernate5.HibernateTemplate.doExecute(HibernateTemplate.java:384)
... 269 more
Caused by: org.postgresql.util.PSQLException: ERROR: relation "bandana" does not exist
Position: 181
at org.postgresql.core.v3.QueryExecutorImpl.receiveErrorResponse(QueryExecutorImpl.java:2476)
at org.postgresql.core.v3.QueryExecutorImpl.processResults(QueryExecutorImpl.java:2189)
at org.postgresql.core.v3.QueryExecutorImpl.execute(QueryExecutorImpl.java:300)
at org.postgresql.jdbc.PgStatement.executeInternal(PgStatement.java:428)
at org.postgresql.jdbc.PgStatement.execute(PgStatement.java:354)
at org.postgresql.jdbc.PgPreparedStatement.executeWithFlags(PgPreparedStatement.java:169)
at org.postgresql.jdbc.PgPreparedStatement.executeQuery(PgPreparedStatement.java:117)
at com.mchange.v2.c3p0.impl.NewProxyPreparedStatement.executeQuery(NewProxyPreparedStatement.java:431)
at org.hibernate.engine.jdbc.internal.ResultSetReturnImpl.extract(ResultSetReturnImpl.java:71)
... 286 more
2019-10-11 05:11:18,954 ERROR [http-nio-8090-exec-6] [ContainerBase.[Standalone].[localhost].[/]] log Unhandled exception occurred whilst decorating page
2019-10-11 05:11:23,141 ERROR [http-nio-8090-exec-6] [[Standalone].[localhost].[/].[jsp]] log Servlet.service() for servlet [jsp] threw exception
com.atlassian.confluence.tenant.VacantException: Confluence is vacant, a call to tenanted [public abstract org.hibernate.Session org.hibernate.SessionFactory.getCurrentSession() throws org.hibernate.HibernateException] is not allowed.
Preliminary Investigation

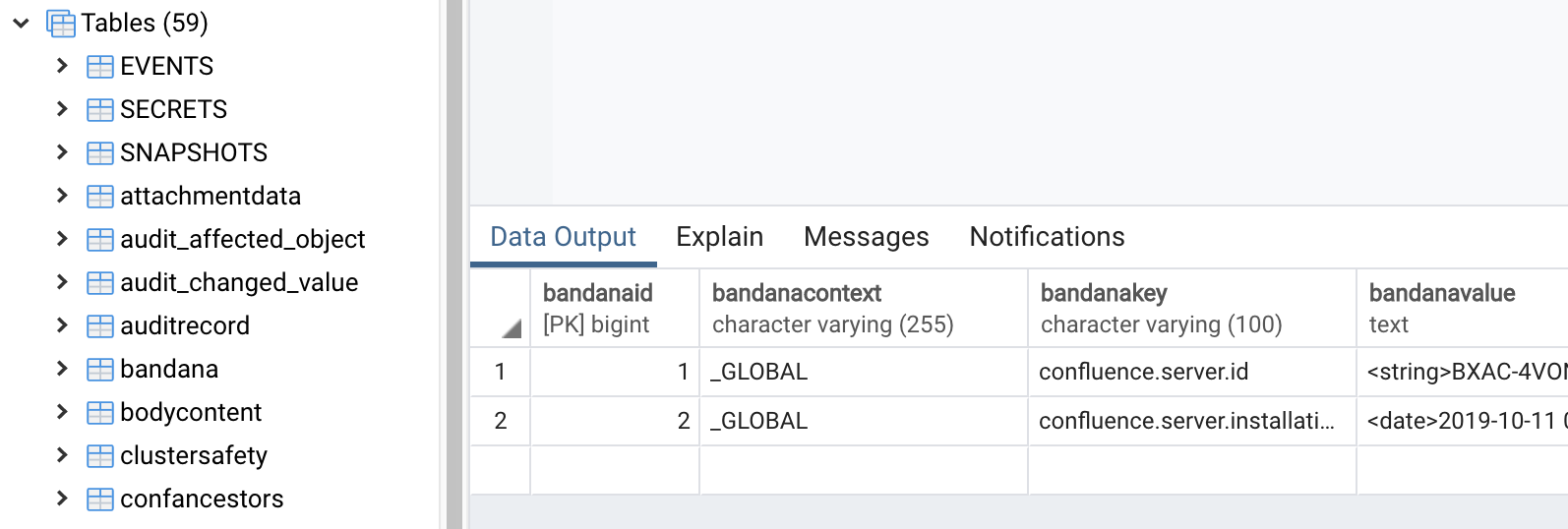

The table bandana did exist and there were data in it
- /etc/hostname was resolvable
# ping `cat /etc/hostname`
PING confluence-dev-59955d5ddc-bmf2x (10.88.20.186) 56(84) bytes of data.
64 bytes from confluence-dev-59955d5ddc-bmf2x (10.88.20.186): icmp_seq=1 ttl=64 time=0.028 ms
64 bytes from confluence-dev-59955d5ddc-bmf2x (10.88.20.186): icmp_seq=2 ttl=64 time=0.022 ms
64 bytes from confluence-dev-59955d5ddc-bmf2x (10.88.20.186): icmp_seq=3 ttl=64 time=0.031 ms
^C
--- confluence-dev-59955d5ddc-bmf2x ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2031ms
- Permission to local folders/files looks fine
Could anyone help to see what could be the solution? Thanks.
