Jira server memory leak after upgrade to 8.3.0

Andrei Ghenoiu

Hello all,

I am having some difficulty with our instance of Jira server.

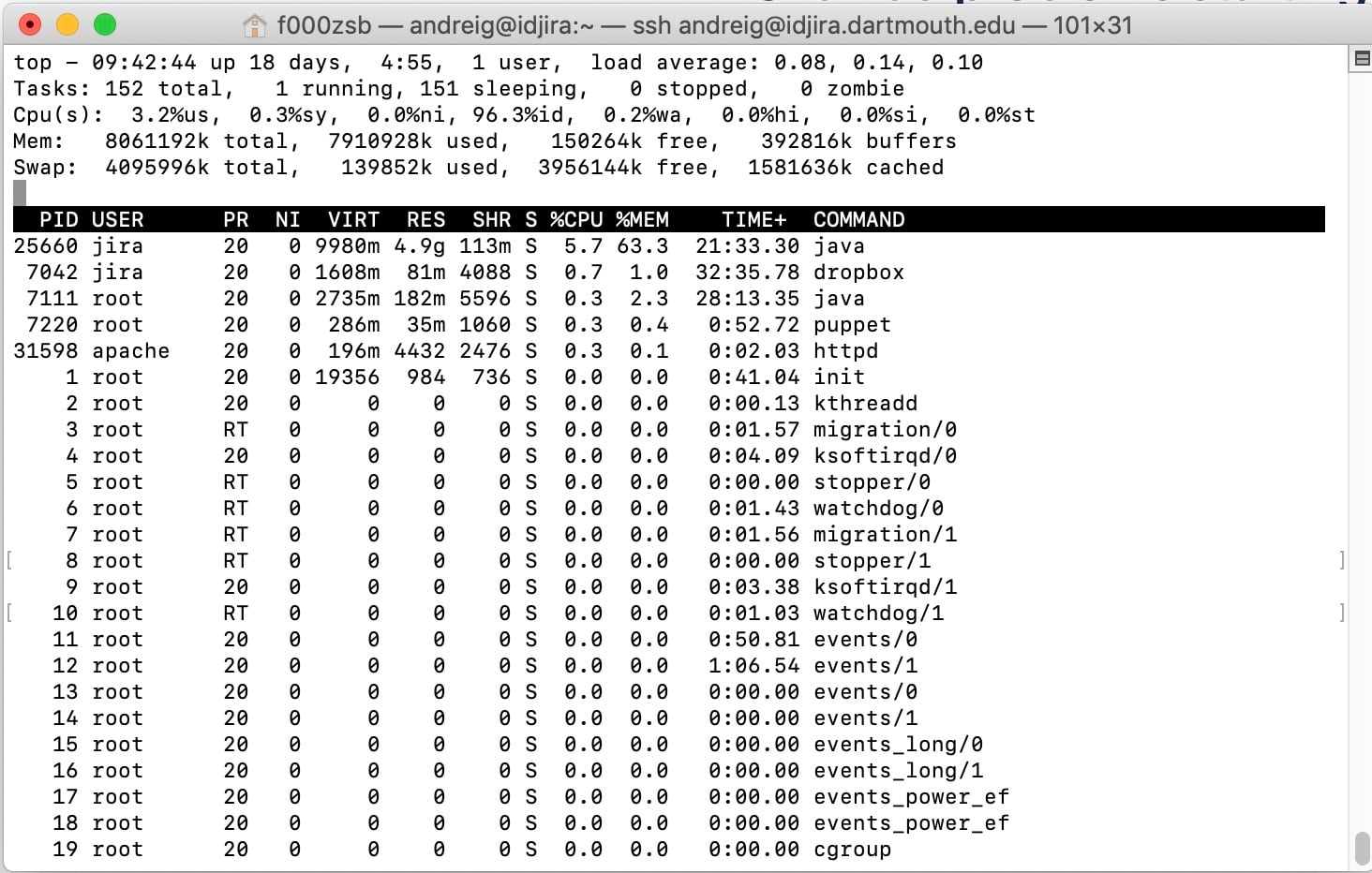

We have recently upgraded from 7.8.1 to 8.3.0, and after the upgrade, this memory leak that I can see when running 'top' on the Linux box started happening.

We have increased the JVM memory allocated to Jira as well -

JVM Input Arguments

-Djava.util.logging.config.file=/opt/atlassian/jira/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Xms1024m -Xmx6096m -XX:InitialCodeCacheSize=32m -XX:ReservedCodeCacheSize=512m -Djava.awt.headless=true -Datlassian.standalone=JIRA -Dorg.apache.jasper.runtime.BodyContentImpl.LIMIT_BUFFER=true -Dmail.mime.decodeparameters=true -Dorg.dom4j.factory=com.atlassian.core.xml.InterningDocumentFactory -Datlassian.plugins.enable.wait=300 -XX:-OmitStackTraceInFastThrow -Djava.locale.providers=COMPAT -Datlassian.plugins.startup.options= -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Xloggc:/opt/atlassian/jira/logs/atlassian-jira-gc-%t.log -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=20M -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+PrintGCCause -Dignore.endorsed.dirs= -Dcatalina.base=/opt/atlassian/jira -Dcatalina.home=/opt/atlassian/jira -Djava.io.tmpdir=/opt/atlassian/jira/temp

Currently it take about 20 -24 hours before the instance runs out of memory, and we need to restart it.

Edit:

Also, I thought it might be worth noting this message-
[GC (Allocation Failure) [PSYoungGen: 1876157K->141943K(1875968K)] 3998513K->2269910K(4828672K), 0.1624618 secs] [Times: user=0.27 sys=0.00, real=0.16 secs]

in the atlassian-jira-gc-2019-08-11_23-21-00.log.0.current log file.

In the same file on our test environment (I have not noticed any issue there) we get messaged like this -

966803.171: [GC (Allocation Failure) 2019-08-11T18:27:51.021-0400: 966803.171: [DefNew: 283175K->1703K(314560K), 0.0301996 secs] 861510K->580041K(1013632K), 0.0303531 secs] [Times: user=0.02 sys=0.00, real=0.03 secs]

Any thoughts? or what should I look into next?

Thank you so much,

Andrei

Accepted answers

Petr Vaníček

Hi @Andrei Ghenoiu and @Jon Tice ,

try to set Xms value to at least 2048m, because Jira 8 needed more memory and sometimes there is not much time to scale it higher value and then it fail.

My recommendation is to set both JVM values to same value - based on size of your instance. But usually is 4096m enough.

All comments

Jon Tice

Did you ever find a resolution to this issue?

Andrei Ghenoiu

Hi Jon,

Have you been running into a similar issues too?

On my end, we have this running on a VM, and after a patch and restart it's been fine as far as the VM running out of memory.

But as far as the Jira instance goes, after about a day or two, the memory graph is down to 5-9 % of free memory and Jira slow down, until it finally stops responding, so maybe something related to the garbage collection in Jira.

We have an Oracle DB for backend, and we already have the latest Oracle JDBC driver there (there was another mention of a memory leak in a different post and this was a solution that worked for some, but not for all)

I have yet to upgrade to the latest 8.4.x, so we'll see what happens then.

Petr Vaníček

Hi @Andrei Ghenoiu and @Jon Tice ,

try to set Xms value to at least 2048m, because Jira 8 needed more memory and sometimes there is not much time to scale it higher value and then it fail.

My recommendation is to set both JVM values to same value - based on size of your instance. But usually is 4096m enough.

Andrei Ghenoiu

Thank you so much for the insight @Petr Vaníček .

I never thought of setting the Xms value higher. I will try that tonight after work and report back.

Jon Tice

These are the current JVM argument settings for our Linux VM;

-Djava.util.logging.config.file=/opt/atlassian/jira/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Xms4096m -Xmx8192m -XX:InitialCodeCacheSize=32m -XX:ReservedCodeCacheSize=512m -Djava.awt.headless=true -Datlassian.standalone=JIRA -Dorg.apache.jasper.runtime.BodyContentImpl.LIMIT_BUFFER=true -Dmail.mime.decodeparameters=true -Dorg.dom4j.factory=com.atlassian.core.xml.InterningDocumentFactory -Dcom.atlassian.jira.clickjacking.protection.exclude=/servicedesk/customer/portal/33,/servicedesk/customer/portal/44 -XX:-OmitStackTraceInFastThrow -Djava.locale.providers=COMPAT -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Xloggc:/opt/atlassian/jira/logs/atlassian-jira-gc-%t.log -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=20M -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+PrintGCCause -Dignore.endorsed.dirs= -Dcatalina.base=/opt/atlassian/jira -Dcatalina.home=/opt/atlassian/jira -Djava.io.tmpdir=/opt/atlassian/jira/temp

I'm not 100% sure which two JVM settings you recommend being the same, but I see that Xmx is double.

You can see our memory usage before upgrade from 8.2.X to 8.3.2 on the 9th, and how it seems to be leaked now after the upgrade https://slack-files.com/TDMLPGBFH-FNC0R18NP-2e97679c65

Petr Vaníček

Original post was about upgrade from Jira 7 to 8, so small JVM values can cause this (I experienced this problem on our test environment).

I recommend Xms and Xmx same because sometimes Java need more memory than it's now and sometimes OS is not able to server this needs in time - then it will fail on memory errors.

Jon Tice

In our case, it appears that there was a java process that was not killed properly during the last upgrade. We killed all java processes and restarted the jira service and it seems to have returned to normal usage.

Andrei Ghenoiu

Great you figured it out!
