Is there a way to reference the value of a Smart Dropdown as text?

Curtis Freudigmann

Hello! It's me again.

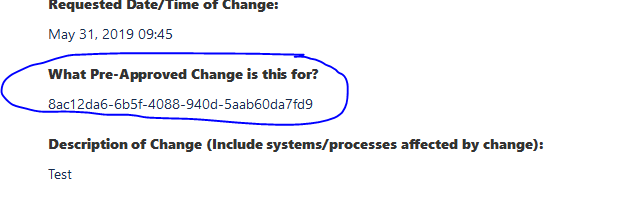

I am working with a Smart Dropdown and I am using an IFTTT to create a new page and also to send an email based on values entered in to a form. I have a form with a text box which dynamically creates values for a smart dropdown in another form. When the user selects an option from the smartdrop and submits the form, a new page is created and I am using the [entry.mySmartDropdownField] to try getting the new page to show the value selected. However, when the new page is created, instead of getting the text value I get a Hex value. (See Image) I was looking at virtual functions to try and convert this to text but did not see anything for it. Is there some other method I can use that is built in to confiforms to accomplish this?

As always, thanks for the assistance!

-Curtis

Accepted answers

Curtis Freudigmann

For those of you looking at this, I discovered there is a checkbox in the Form Field Definition macro for 'Reference to records'. If this box is UNchecked, the value comes through in text form.

-Curtis

All comments

Curtis Freudigmann

For those of you looking at this, I discovered there is a checkbox in the Form Field Definition macro for 'Reference to records'. If this box is UNchecked, the value comes through in text form.

-Curtis

Alex Medved _ConfiForms_

When you uncheck the mentioned parameter then ConfiForms stores a plain value, not a reference to the field. Which may or may not be what you want.

The drawback of this is that you loose the reference to original record and cannot access ANY other properties from a referenced form/record

While, when you have this option set you can access ANY other property from the form referenced

[entry.mySmartDropdownField.property_in_other_form]

Curtis Freudigmann

For this, I only need to get the text of the selected item. It is being emailed and used to create another page to display the information. No need to access any other property from the referenced record.

Alex Medved _ConfiForms_

Well, do you understand that smart fields they operate on IDs of the records they reference? And think of them as "bridges" to another forms

So, in order to get the "text" value you need to tell where this text value actually is and that is by telling the smart field to get it

[entry.mySmartDropdownField.property_in_other_form]

property_in_other_form is YOUR TEXT FIELD in the form referenced by this smart field

Curtis Freudigmann

Well my understand is a bit lacking. I have tried

[entry.mychoice1.transform(changeTeam).join(changeTeam)]

I have tried using it based on id as well so like

[entry.mychoice1.transform(id).join()]

In another form I can get .join() to work with a standard multi select. I can get the concatenation to work and email me the ids concatenated separated but 'OR id:' like the example.

But what I really want is to have a smart dropdown be filtered based on the values for multiple options in a multi select.

Below is my storage format to give you an idea of what I'm working with.

<p class="auto-cursor-target"><br /></p><ac:structured-macro ac:name="section" ac:schema-version="1" ac:macro-id="26138bab-5dd4-41fb-9aff-38b46dea32c5"><ac:rich-text-body>
<p class="auto-cursor-target"><br /></p><ac:structured-macro ac:name="confiform" ac:schema-version="1" ac:macro-id="a29f7d9f-7cd2-4c1d-ab1a-2b0c26004c92"><ac:parameter ac:name="formName">addChoices</ac:parameter><ac:rich-text-body>
<p><ac:structured-macro ac:name="confiform-field-definition" ac:schema-version="1" ac:macro-id="6c91b57e-155f-44b2-85bf-1518525decb6"><ac:parameter ac:name="fieldName">changeTeam</ac:parameter><ac:parameter ac:name="fieldLabel">Team Making Change</ac:parameter><ac:parameter ac:name="values">false[Apps Admin=Apps Admin|Apps Dev HD=Apps Dev HD|Data Warehouse=Data Warehouse|Group/Core Dev=Group/Core Dev|IAS Dev=IAS Dev|Infrastructure=Infrastructure|iSeries Admin=iSeries Admin|Middleware=Middleware|Salesforce Admin=Salesforce Admin|Salesforce Dev=Salesforce Dev|]</ac:parameter><ac:parameter ac:name="type">select</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field-definition" ac:schema-version="1" ac:macro-id="da72d710-3d61-457d-87a6-0218c463e8ec"><ac:parameter ac:name="fieldName">changeType</ac:parameter><ac:parameter ac:name="fieldLabel">Type of Change</ac:parameter><ac:parameter ac:name="type">text</ac:parameter></ac:structured-macro></p><ac:structured-macro ac:name="confiform-entry-register" ac:schema-version="1" ac:macro-id="404e1c1d-03e2-4e0c-a5b8-bbc11d820423"><ac:parameter ac:name="embedded">true</ac:parameter><ac:parameter ac:name="atlassian-macro-output-type">INLINE</ac:parameter><ac:rich-text-body>
<h4>Team making change:</h4>
<p><ac:structured-macro ac:name="confiform-field" ac:schema-version="1" ac:macro-id="7e9e89af-48f7-463f-869a-c475d669ee3d"><ac:parameter ac:name="fieldName">changeTeam</ac:parameter></ac:structured-macro></p>
<h4>Type of change being made:</h4>
<p><ac:structured-macro ac:name="confiform-field" ac:schema-version="1" ac:macro-id="4555d7bf-39c4-4621-95c0-c30080d5dcb4"><ac:parameter ac:name="fieldName">changeType</ac:parameter></ac:structured-macro></p></ac:rich-text-body></ac:structured-macro>
<p class="auto-cursor-target"><br /></p></ac:rich-text-body></ac:structured-macro>
<p>Items in form <strong>f1choices</strong></p><ac:structured-macro ac:name="confiform-table" ac:schema-version="1" ac:macro-id="fbdcd47b-51da-4d5f-be36-c6585a53874e"><ac:parameter ac:name="formName">addChoices</ac:parameter><ac:rich-text-body>
<p><br /></p>
<p><ac:structured-macro ac:name="confiform-field" ac:schema-version="1" ac:macro-id="97494bb1-5b2c-43ef-8c40-cc93bcf3e3ba"><ac:parameter ac:name="fieldName">changeTeam</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field" ac:schema-version="1" ac:macro-id="f3abf462-8247-4587-b8ab-eb1baf47aa69"><ac:parameter ac:name="fieldName">changeType</ac:parameter></ac:structured-macro></p></ac:rich-text-body></ac:structured-macro>
<p class="auto-cursor-target"><br /></p><ac:structured-macro ac:name="confiform" ac:schema-version="1" ac:macro-id="b4af5bea-8524-4aba-bd16-c29950309b6d"><ac:parameter ac:name="formName">usingChoices</ac:parameter><ac:rich-text-body>
<p class="auto-cursor-target"><br /></p><ac:structured-macro ac:name="confiform-entry-register" ac:schema-version="1" ac:macro-id="33cd2744-9c85-49b5-bd17-35a3974c8415"><ac:parameter ac:name="embedded">true</ac:parameter><ac:parameter ac:name="atlassian-macro-output-type">INLINE</ac:parameter><ac:rich-text-body>
<p><br /></p></ac:rich-text-body></ac:structured-macro>
<p><ac:structured-macro ac:name="confiform-field-definition" ac:schema-version="1" ac:macro-id="7eb7c532-f9f7-4132-b6db-223be71af597"><ac:parameter ac:name="fieldName">mychoice1</ac:parameter><ac:parameter ac:name="fieldLabel">My choice 1</ac:parameter><ac:parameter ac:name="values">[46566051|addChoices|changeTeam|false|false|]</ac:parameter><ac:parameter ac:name="type">smartmultiselect</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field-definition" ac:schema-version="1" ac:macro-id="f6f9babd-c175-41f2-b44e-524ce49c4ca0"><ac:parameter ac:name="fieldName">mychoice2</ac:parameter><ac:parameter ac:name="fieldLabel">My choice 2</ac:parameter><ac:parameter ac:name="values">[46566051|addChoices|changeType|true||]</ac:parameter><ac:parameter ac:name="type">smartselect2</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field-definition" ac:schema-version="1" ac:macro-id="831ce505-61a9-4684-9c42-62cb5f611842"><ac:parameter ac:name="fieldName">SC</ac:parameter><ac:parameter ac:name="fieldLabel">SC</ac:parameter><ac:parameter ac:name="values">[46566051:addChoices]changeType,</ac:parameter><ac:parameter ac:name="type">smartclass</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field-definition-rules" ac:schema-version="1" ac:macro-id="8ff8a8d7-b08f-40fb-9f7b-db7335a8fb15"><ac:parameter ac:name="fieldName">mychoice2</ac:parameter><ac:parameter ac:name="values">[entry.mychoice1.changeTeam]</ac:parameter><ac:parameter ac:name="action">Apply Filter on a field</ac:parameter><ac:parameter ac:name="actionFieldName">mychoice1</ac:parameter></ac:structured-macro></p>
<p><ac:structured-macro ac:name="confiform-field-definition-rules" ac:schema-version="1" ac:macro-id="6fc5a531-f3cd-4093-ae92-f85f9a0c1b62"><ac:parameter ac:name="fieldName">SC</ac:parameter><ac:parameter ac:name="values">[entry.mychoice1.join(mychoice1)]</ac:parameter><ac:parameter ac:name="action">Apply Filter on a field</ac:parameter><ac:parameter ac:name="actionFieldName">mychoice1</ac:parameter></ac:structured-macro></p></ac:rich-text-body></ac:structured-macro>
<p class="auto-cursor-target"><br /></p></ac:rich-text-body></ac:structured-macro>
<p class="auto-cursor-target"><br /></p>
<p><br /></p>
<p><br /></p>
<p><br /></p>
<p><br /></p>

Alex Medved _ConfiForms_

Have a look at the following config

<ac:structured-macro ac:macro-id="26138bab-5dd4-41fb-9aff-38b46dea32c5" ac:name="section" ac:schema-version="1">
<ac:rich-text-body>
<ac:structured-macro ac:macro-id="a29f7d9f-7cd2-4c1d-ab1a-2b0c26004c92" ac:name="confiform" ac:schema-version="1">
<ac:parameter ac:name="formName">addChoices</ac:parameter>
<ac:rich-text-body>
<p>
<ac:structured-macro ac:macro-id="6c91b57e-155f-44b2-85bf-1518525decb6" ac:name="confiform-field-definition" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeTeam</ac:parameter>
<ac:parameter ac:name="fieldLabel">Team Making Change</ac:parameter>
<ac:parameter ac:name="values">false[Apps Admin=Apps Admin|Apps Dev HD=Apps Dev HD|Data Warehouse=Data Warehouse|Group/Core Dev=Group/Core Dev|IAS Dev=IAS Dev|Infrastructure=Infrastructure|iSeries Admin=iSeries Admin|Middleware=Middleware|Salesforce Admin=Salesforce Admin|Salesforce Dev=Salesforce Dev|]</ac:parameter>
<ac:parameter ac:name="type">select</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="da72d710-3d61-457d-87a6-0218c463e8ec" ac:name="confiform-field-definition" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeType</ac:parameter>
<ac:parameter ac:name="fieldLabel">Type of Change</ac:parameter>
<ac:parameter ac:name="type">text</ac:parameter>
</ac:structured-macro>
</p>
<ac:structured-macro ac:macro-id="404e1c1d-03e2-4e0c-a5b8-bbc11d820423" ac:name="confiform-entry-register" ac:schema-version="1">
<ac:parameter ac:name="embedded">true</ac:parameter>
<ac:parameter ac:name="atlassian-macro-output-type">INLINE</ac:parameter>
<ac:rich-text-body>
<h4>Team making change:</h4>
<p>
<ac:structured-macro ac:macro-id="7e9e89af-48f7-463f-869a-c475d669ee3d" ac:name="confiform-field" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeTeam</ac:parameter>
</ac:structured-macro>
</p>
<h4>Type of change being made:</h4>
<p>
<ac:structured-macro ac:macro-id="4555d7bf-39c4-4621-95c0-c30080d5dcb4" ac:name="confiform-field" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeType</ac:parameter>
</ac:structured-macro>
</p>
</ac:rich-text-body>
</ac:structured-macro>
</ac:rich-text-body>
</ac:structured-macro>
<p>Items in form <strong>f1choices</strong>
</p>
<ac:structured-macro ac:macro-id="fbdcd47b-51da-4d5f-be36-c6585a53874e" ac:name="confiform-table" ac:schema-version="1">
<ac:parameter ac:name="formName">addChoices</ac:parameter>
<ac:rich-text-body>
<p>
<br/>
</p>
<p>
<ac:structured-macro ac:macro-id="97494bb1-5b2c-43ef-8c40-cc93bcf3e3ba" ac:name="confiform-field" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeTeam</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="f3abf462-8247-4587-b8ab-eb1baf47aa69" ac:name="confiform-field" ac:schema-version="1">
<ac:parameter ac:name="fieldName">changeType</ac:parameter>
</ac:structured-macro>
</p>
</ac:rich-text-body>
</ac:structured-macro>
<ac:structured-macro ac:macro-id="b4af5bea-8524-4aba-bd16-c29950309b6d" ac:name="confiform" ac:schema-version="1">
<ac:parameter ac:name="formName">usingChoices</ac:parameter>
<ac:rich-text-body>
<ac:structured-macro ac:macro-id="33cd2744-9c85-49b5-bd17-35a3974c8415" ac:name="confiform-entry-register" ac:schema-version="1">
<ac:parameter ac:name="embedded">true</ac:parameter>
<ac:parameter ac:name="atlassian-macro-output-type">INLINE</ac:parameter>
<ac:rich-text-body>
<p>
<br/>
</p>
</ac:rich-text-body>
</ac:structured-macro>
<p>
<ac:structured-macro ac:macro-id="7eb7c532-f9f7-4132-b6db-223be71af597" ac:name="confiform-field-definition" ac:schema-version="1">
<ac:parameter ac:name="fieldName">mychoice1</ac:parameter>
<ac:parameter ac:name="fieldLabel">My choice 1</ac:parameter>
<ac:parameter ac:name="values">[46566051|addChoices|changeTeam|false|false|]</ac:parameter>
<ac:parameter ac:name="type">smartmultiselect</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="04d80edb-5210-492c-995e-b8d890c84db6" ac:name="confiform-field-definition" ac:schema-version="1">
<ac:parameter ac:name="fieldName">mychoice2</ac:parameter>
<ac:parameter ac:name="fieldLabel">My choice 2</ac:parameter>
<ac:parameter ac:name="values">[46566051|addChoices|changeType|true||]</ac:parameter>
<ac:parameter ac:name="type">smartselect2</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="831ce505-61a9-4684-9c42-62cb5f611842" ac:name="confiform-field-definition" ac:schema-version="1">
<ac:parameter ac:name="fieldName">SC</ac:parameter>
<ac:parameter ac:name="fieldLabel">SC</ac:parameter>
<ac:parameter ac:name="values">[46566051:addChoices]changeType,</ac:parameter>
<ac:parameter ac:name="type">smartclass</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="8edf3822-4f3e-4d0f-ac1e-f000e228bb12" ac:name="confiform-field-definition-rules" ac:schema-version="1">
<ac:parameter ac:name="fieldName">mychoice2</ac:parameter>
<ac:parameter ac:name="values">changeTeam:[entry.mychoice1.transform(label).join( OR changeTeam:)]</ac:parameter>
<ac:parameter ac:name="action">Apply Filter on a field</ac:parameter>
<ac:parameter ac:name="actionFieldName">mychoice1</ac:parameter>
</ac:structured-macro>
</p>
<p>
<ac:structured-macro ac:macro-id="7abf542e-21be-47c7-9b4e-31013fbfa1f1" ac:name="confiform-field-definition-rules" ac:schema-version="1">
<ac:parameter ac:name="fieldName">SC</ac:parameter>
<ac:parameter ac:name="values">changeTeam:[entry.mychoice1.transform(label).join( OR changeTeam:)]</ac:parameter>
<ac:parameter ac:name="action">Apply Filter on a field</ac:parameter>
<ac:parameter ac:name="actionFieldName">mychoice1</ac:parameter>
</ac:structured-macro>
</p>
</ac:rich-text-body>
</ac:structured-macro>
</ac:rich-text-body>
</ac:structured-macro>

I was under impression that your teams are also defined as a smart field... but they are just a simple dropdown, and therefore the filtering shall be done by using label (or id, as you have them the same)

Curtis Freudigmann

Thanks Alex! This is EXACTLY what I was looking for.

A quick side question for you looking at this. When you add ( OR changeTeam) in the .join - is this strictly for the concatenation or is OR a keyword as well?

Alex Medved _ConfiForms_

I am creating a filter with ORs dynamically
