Scriptrunner adding web section to navigation bar

Tom Lister_fo1j4e

I want to add menu to our navigation bar which will navigate to creating a service desk issue. I have followed the notes on creating a web section and web item using script fragments but I am not seeing a new menu item and can't see what I've missed. Anyone used script runner web fragments?

Screen shots of web section and two goes at web item...

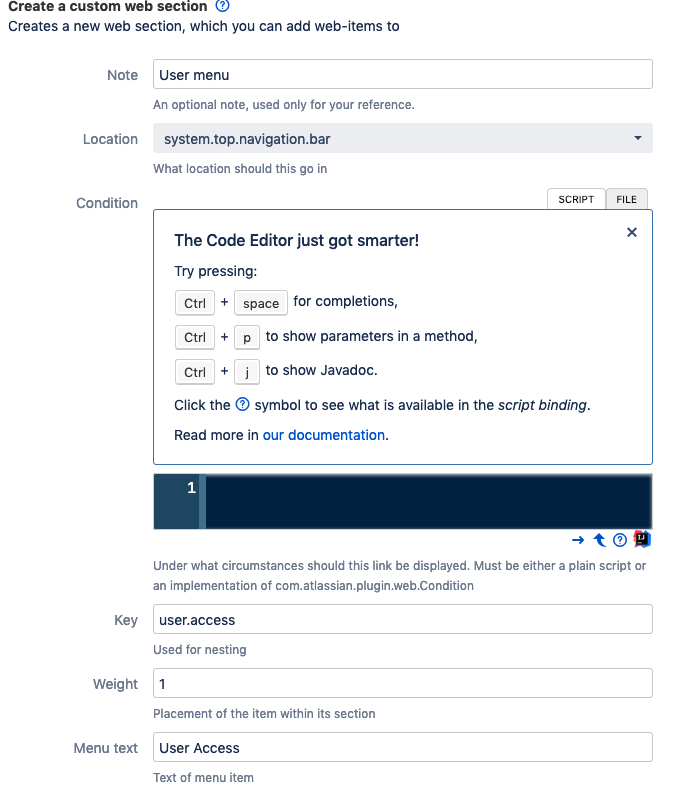

Screenshot 2019-03-24 at 16.59.45.png

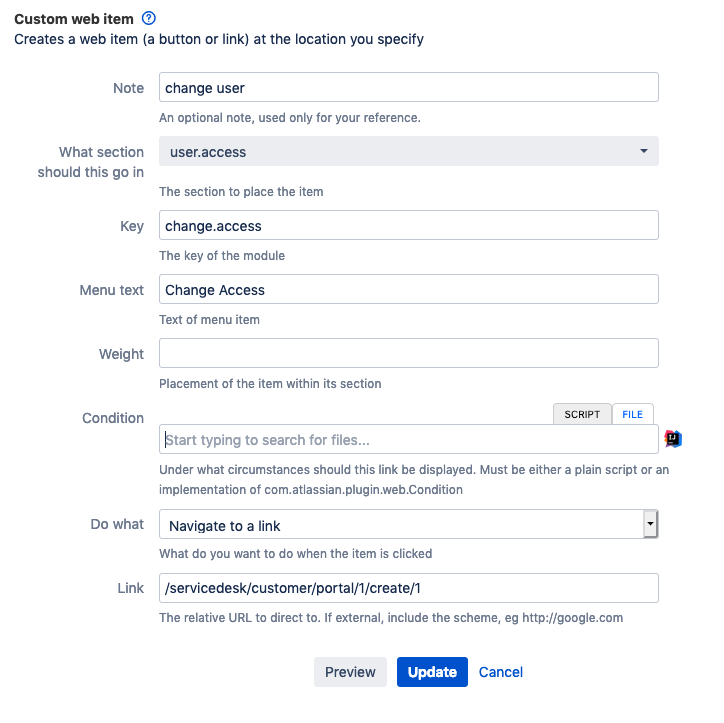

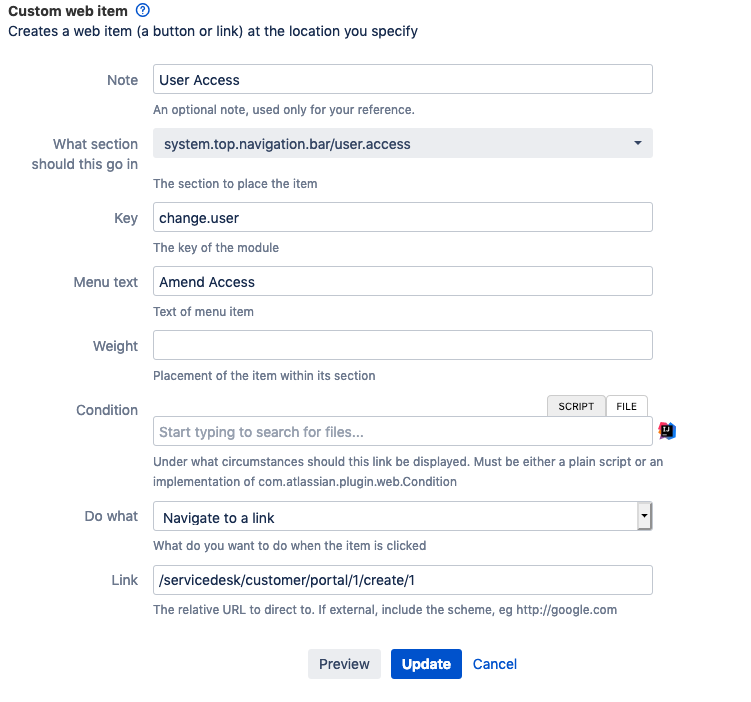

Screenshot 2019-03-24 at 17.02.35.png Screenshot 2019-03-24 at 17.03.35.png

Accepted answers

Mohamed Yehia_zlrzxq

Hi @Tom Lister

I faced the same issue and I solved it by :

Add a web item in the top nav. bar (Key: item.servicedesk)
Add a web section in the location of the item.servicedesk (key: user.access)
Add a web item in the location of the item.servicedesk/user.access
Add another web item in the location of the item.servicedesk/user.access

Now, you can find what are you looking for.

I hope it helps.

Thanks,

Yehia

All comments

Jean-Théo _Adaptavist_

Hello @Tom Lister

I am unable to reproduce your issue. As you can see in the following screenshot, I copied your first screenshot and the fragment appeared for me.

Screen Shot 2019-03-28 at 3.24.17 PM.png

Are you using JIRA server? Which version of JIRA are you using?

Best,

Tom Lister_fo1j4e

Hi @Jean-Théo _Adaptavist_

I tried this on 7.13 server on a macbook and 7.11 data centre on AWS.

I notice your field order on your config screen is different to mine.

I’ll try it again tomorrow

Tom Lister_fo1j4e

Hi @Jean-Théo _Adaptavist_

also just noticed you are placing a web item on the nav bar. I was trying to put a web section on there with web items attached. I wanted a drop down menu of links.

Is that incorrect?

Tom Lister_fo1j4e

Hi @Jean-Théo _Adaptavist_

I can create a single web item that appears as a link on the nav bar.

Does scriptrunner allow me to create a drop down menu on the nav bar?

Tom

Tom Lister_fo1j4e

Fresh server , repeat test...

Trying to create a web-section to add a new menu drop down to navbar.

The following config has no visible effect ( although it's possible to add a new web-item but I want a drop down list of web-items).

Mohamed Yehia_zlrzxq

Hi @Tom Lister

I faced the same issue and I solved it by :

Add a web item in the top nav. bar (Key: item.servicedesk)
Add a web section in the location of the item.servicedesk (key: user.access)
Add a web item in the location of the item.servicedesk/user.access
Add another web item in the location of the item.servicedesk/user.access

Now, you can find what are you looking for.

I hope it helps.

Thanks,

Yehia

Tom Lister_fo1j4e

Hi @Mohamed Yehia

When you use item.servicedesk, where does that appear.

I was using system.top.navigation.bar to get an item on the main Jira menu bar

Tom

Mohamed Yehia_zlrzxq

Hi @Tom Lister

system.top.navigation.bar as below:

Yehia

Timothy Ryner

To use @Mohamed Yehia's example:

Add a web item (Key: item.servicedesk) to system.top.navigation.bar
Add a web section (Key: user.access) to item.servicedesk
(not under system.top.navigation.bar....just directly under item.servicedesk)
Add a web item (Key:option1) to item.servicedesk/user.access
Add a web item (Key:option2) to item.servicedesk/user.access
