Add a background color to cell

Marat_lcjzvw

Hello.

I am using the SQL for Confluence plugin (bob swift). I would like to tint cells in tables by condition.
For example, I use the script:

SELECT MONTH([modify_date]) AS month, CONVERT(decimal(10,2),1.00*((CONVERT(decimal(10,2),1.00*SUM(response_1))/(Count(surv_req_id)/12))/3)) AS average
FROM [surv_req]
where  issued_date between  '2018-01-01' and '2018-12-31'
GROUP BY MONTH([modify_date])

ORDER BY month

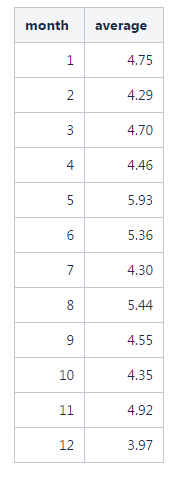

And I get such a table.
How do I change the color of the cells in the average column to red if the value is less than 5

db - MSSQL



Daniel Eads

Hey Marat,

Looking through the documentation for the Bob Swift SQL and Table macros, I don't see an apparent way to selectively change the background color of individual cells. Or even full rows conditionally for that matter.

What I've done in the past for this kind of need is use the emoticons in Confluence which will render with the SQL plugin and a CASE statement in the SQL. Using CASE, you can output the value normally if the value is above 5, or with (x) in front of the number (the red X emoticon in Confluence) if it is below 5. When Confluence processes the text coming from the plugin - the first row in your screenshot would have "(x) 4.75" for example - it will display the (x) as the red X emoticon.

• Reference for CASE statement in MS SQL

Hope that helps!
Daniel
