JIRA Automation Rule for copying one specific component from an epic to a story or task

Cayce McCraw

Our project uses multiple components on epics, features, stories, and tasks. I am trying to create a JIRA automation rule to copy one specific component to a child issue when created or epic link is edited.

I am able to create the rule to copy all components from the epic based on the epic link - values changed trigger, but the use case I have is to copy one specific component out of many.

Looking forward to the assistance!

Accepted answers

Bill Sheboy

Hi @Cayce McCraw -- Welcome to the Atlassian Community!

When adding (or removing) a specific Component value, please use the advanced edit features with a JSON expression: https://support.atlassian.com/cloud-automation/docs/advanced-field-editing-using-json/#Components

In that documentation, also see the examples for the Labels field to see how to add a value using the "update" attribute.

If this does not help, please post the following for context:

your version of Jira: Cloud, Server, or Data Center
for Cloud, your project type: company-managed, team-managed, JPD, etc.
an image of your complete rule, in one continuous image
an image of the Edit Issue action
an image of the audit log details showing the rule execution
explain what is not working as expected and why you believe that to be the case

Kind regards,
Bill

Davide Schillaci_agx5nz

Hi @Cayce McCraw ,

Welcome to Atlassian community!
You could try something like this:

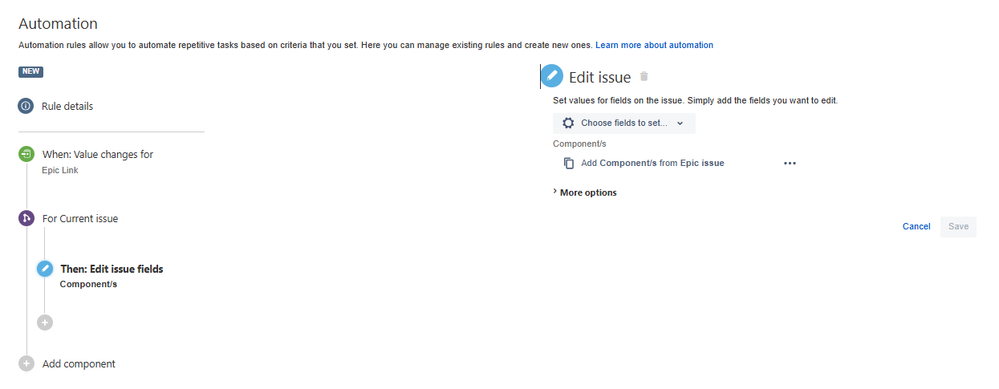

Screenshot 2025-04-16 093109.png

Let me know if it works for your scenario.
Bests!

All comments

Bill Sheboy

Hi @Cayce McCraw -- Welcome to the Atlassian Community!

In that documentation, also see the examples for the Labels field to see how to add a value using the "update" attribute.

If this does not help, please post the following for context:

your version of Jira: Cloud, Server, or Data Center
for Cloud, your project type: company-managed, team-managed, JPD, etc.
an image of your complete rule, in one continuous image
an image of the Edit Issue action
an image of the audit log details showing the rule execution
explain what is not working as expected and why you believe that to be the case

Kind regards,
Bill

Cayce McCraw

Thank you for helping me! I've entered the JSON based on documentation above, however, I am receiving errors saying JSON is not valid.

Automation Rule.JPG Automation Error.JPG

Kim Euker

In this case you want to look at the Advanced Editing features. You need to append your value to the existing components in the child. Then, using the advanced editing you can update the components to have the existing components and the new components

{
    "fields": {
        "components" : [ {{AllComponents}} ]
        }
}

Bill Sheboy

First, you are using Jira Server / Data Center, and so the JSON documentation for that version may be found here: https://confluence.atlassian.com/automation/advanced-field-editing-using-json-993924663.html

Next, please read the JSON documentation carefully, and note I also described looking at the Labels field for an example to use the "update" attribute.

As an example for the Components field, that would be this for the values you show:

{
  "update": {
    "components": [
      { "add": { "name": "FPS O&M" } },
      { "add": { "name": "FPS Program" } }
    ]
  }
}

Also note well: in the Edit Issue action, you have selected the Components field from the dropdown list AND used JSON. Only one of those can be used at a time for the same rule action for a single field. De-select the field from the dropdown list.

Cayce McCraw

Thank you for the quick response - I was able to successfully use the above to add both components, however, my initial question may not have been clear. I need to "copy down" or "add" either "FPS O&M" or "FPS Program" components depending on which component the Epic has - the epic would have one or the other, but not both. The epic could also have additional components such as multiple team names/components, so a straight copy of all components down to the story or task level wouldn't work either as stories and tasks would be worked by different teams.

I really do appreciate your time, and hopefully this clarification will help get us closer to resolving my dilemma!

Davide Schillaci_agx5nz

Hi @Cayce McCraw ,

Welcome to Atlassian community!
You could try something like this:

Screenshot 2025-04-16 093109.png

Let me know if it works for your scenario.
Bests!

Cayce McCraw

I need to copy down one out of many components to the story and task created under a specific epic, not all the components from the epic.

Scenario: Epic A has 3 components "Component 1", "Component 2", and "Component 3"

Given a new story or task is created

When the epic link is added/updated in the story or task

And the matching epic has "Component 1"

Then I want the automation rule to copy only "Component 1" to the story or task

And ensure "Component 2" and "Component 3" are not copied.

Davide Schillaci_agx5nz

Hi,

have you already tried setting a related issue condition based on Epic?

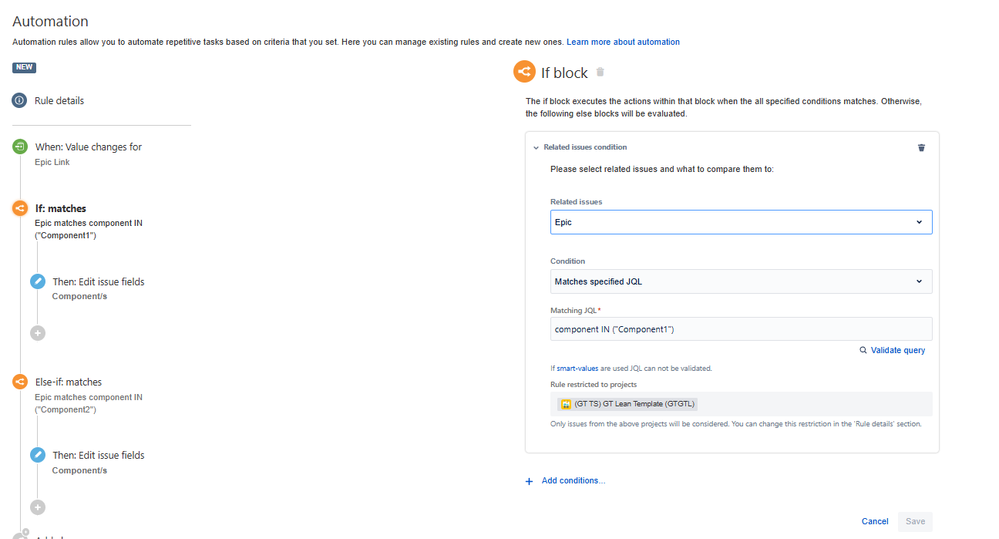

Screenshot 2025-04-16 182038.png

Then you should set the specific Edit issue action via JSON as already suggested in other comments.

Bests

Cayce McCraw

This is perfect and worked like a charm!!!! Thank you!!!!
