Hi, I went through the Getting Started installation guide at https://confluence.atlassian.com/crowd/installing-crowd-and-crowdid-191862.html and I'm stuck with this:
C:\Crowd>start_crowd.bat
To run Crowd in the foreground, start the server with start_crowd.bat /fg
The JRE_HOME environment variable is not defined correctly
This environment variable is needed to run this program
I have Java SE Development Kit 8 Update 172 (64-bit) no JRE.
My {CROWD_INSTALL} is at C:\Crowd
My Crowd Home is at C:\Crowd_data
My crowd-init.properties setting is crowd.home=c:/Crowd_data
I've also renamed the files to the 64bit files.

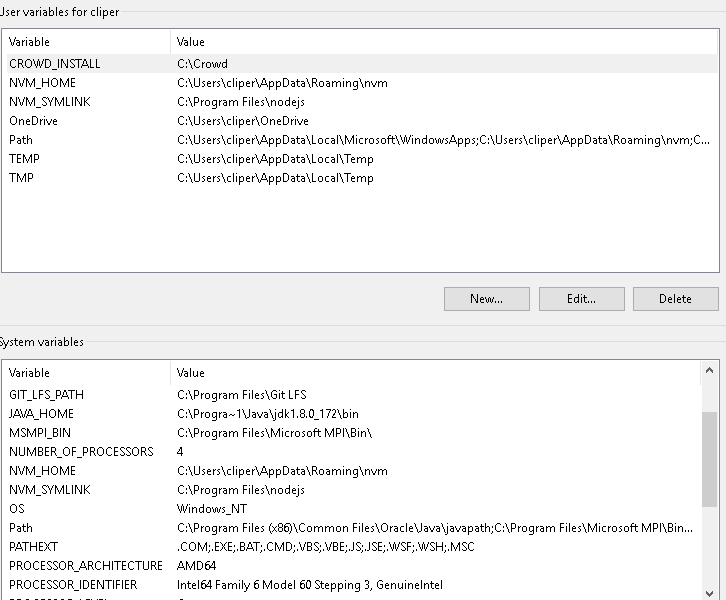

Here's my Environment variables looks like:

I tried everything from here, adding JRE_HOME, in Path variable that are suggested in the community forum and all still no luck.
and when I tried to start the bat file under step
4. Start Crowd and Complete the Setup Wizard
it throws the error above.
Hope someone can shed some light.
