Automation-After trigger in JPD create Epics in other Jira & show Epics in delivery section of JPD

Yannic Wolf

Hi there

I have a question. I'd like to get an automation within our JPD that based on a trigger, e.g. status transition, create Epics or tasks in other Jira but link/show those tickets in the delivery section of the JPD idea ticket.

I've managed to get the creation of the ticket to work but I am struggling to find a way that the tickets that are created to show in the idea delivery section.

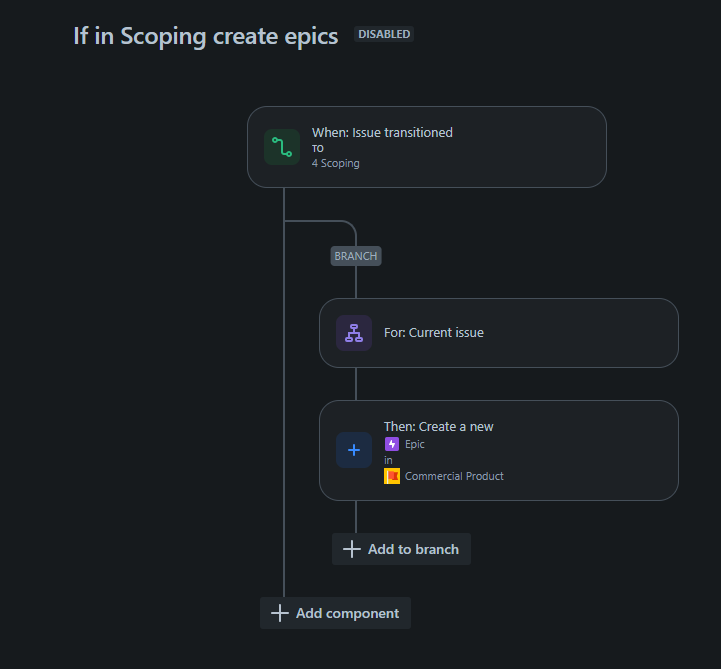

Screenshot 2024-10-11 154337.png

Any help would be greatly appreciated

Accepted answers

Laura Pellizzari

Hi, why not adding to the automation the action: link issue with a specific link type?

And after proceed with another automation to fill in JPD delivery section

Laura

Gary Spross

In the create issue component, add the issue link type: implements to the trigger issue.

Nick Haller

Hi @Yannic Wolf ,

I've been able to get an automation like the one below working as expected;

WHEN an idea is transitioned to Delivery (enter your status here)
THEN create a Jira issue (Epic)
AND link it as a "delivery" (meaning the Jira issue would appear in the JPD idea's Delivery tab after the rule is executed)
- is implemented by - Most recently created issue:

You can obviously map multiple idea fields to the issue fields within the THEN condition.

I would also check the Scope of your project and ensure it is open to both the JPD and Jira projects.

Otherwise, check the Audit logs tab to see if there is anything telling there.

All comments

Laura Pellizzari

Hi, why not adding to the automation the action: link issue with a specific link type?

And after proceed with another automation to fill in JPD delivery section

Laura

Gary Spross

In the create issue component, add the issue link type: implements to the trigger issue.

Yannic Wolf

Hi Laura

Thank you for your help.

Apologies I don't think I fully follow

Are you suggesting I do a And: Link issue to like so

but how can I then have this added to JPD delivery section?

Screenshot 2024-10-11 164736.png

Yannic Wolf

Hi Gary,

Thank you for the answer

I don't think I quite follow. Are you saying within the create issue component there should be a link type field? Or do you mean I create an And: Link issue after the create Issue?

I tried that but it doesn't add it to the delivery section of the CPD idea

Screenshot 2024-10-11 165044.png

Gary Spross

You should be able to add the link either way, it doesn't matter.

Linking an issue with the implements link type connects the issues. For Ideas in JPD projects, this link type shows those tickets in the Delivery section. Did you try refreshing the Idea ticket? It should show the delivery Epic ticket in the Delivery section.

lila_mmw63l

That should do the trick to link the issue

Yannic Wolf

Hi Gary

Thanks for your answer and apologies for the late reply

I've used this automation:

Screenshot 2024-10-11 164736.png

And it successfully creates the epic but even with a refresh it doesn't seem to link/add it to the JPD idea in the delivery section.

I've also tried the 'is added to idea' linking and no dice. I've also tried refreshing as you suggested.

Am I missing something?

Yannic Wolf

Hi Lila

Unfortunately it didn't do the trick not sure why. it is successfully creating the epics in the other Jira instance but not adding it to the delivery section within the idea in JPD

Nick Haller

Hi @Yannic Wolf ,

I've been able to get an automation like the one below working as expected;

WHEN an idea is transitioned to Delivery (enter your status here)
THEN create a Jira issue (Epic)
AND link it as a "delivery" (meaning the Jira issue would appear in the JPD idea's Delivery tab after the rule is executed)
- is implemented by - Most recently created issue:

You can obviously map multiple idea fields to the issue fields within the THEN condition.

I would also check the Scope of your project and ensure it is open to both the JPD and Jira projects.

Otherwise, check the Audit logs tab to see if there is anything telling there.

Yannic Wolf

Hi @Nick Haller

Thank you! You might have hit the nail on the head with the Scope.

I am investigating with our Jira admins whether that'S the case that's preventing me from linking.

Either way thank you so much!
