clover report is not properly displaying

Question

Hi Team,

Need some help from you: I kicked off the job in bamboo and it finished successfully. It also generated an artifact - a clover report , However, when I view the report, the format is messed up and Class Coverage Distribution and Class Complexity images are missing. Would you help me figure out why this is happening?

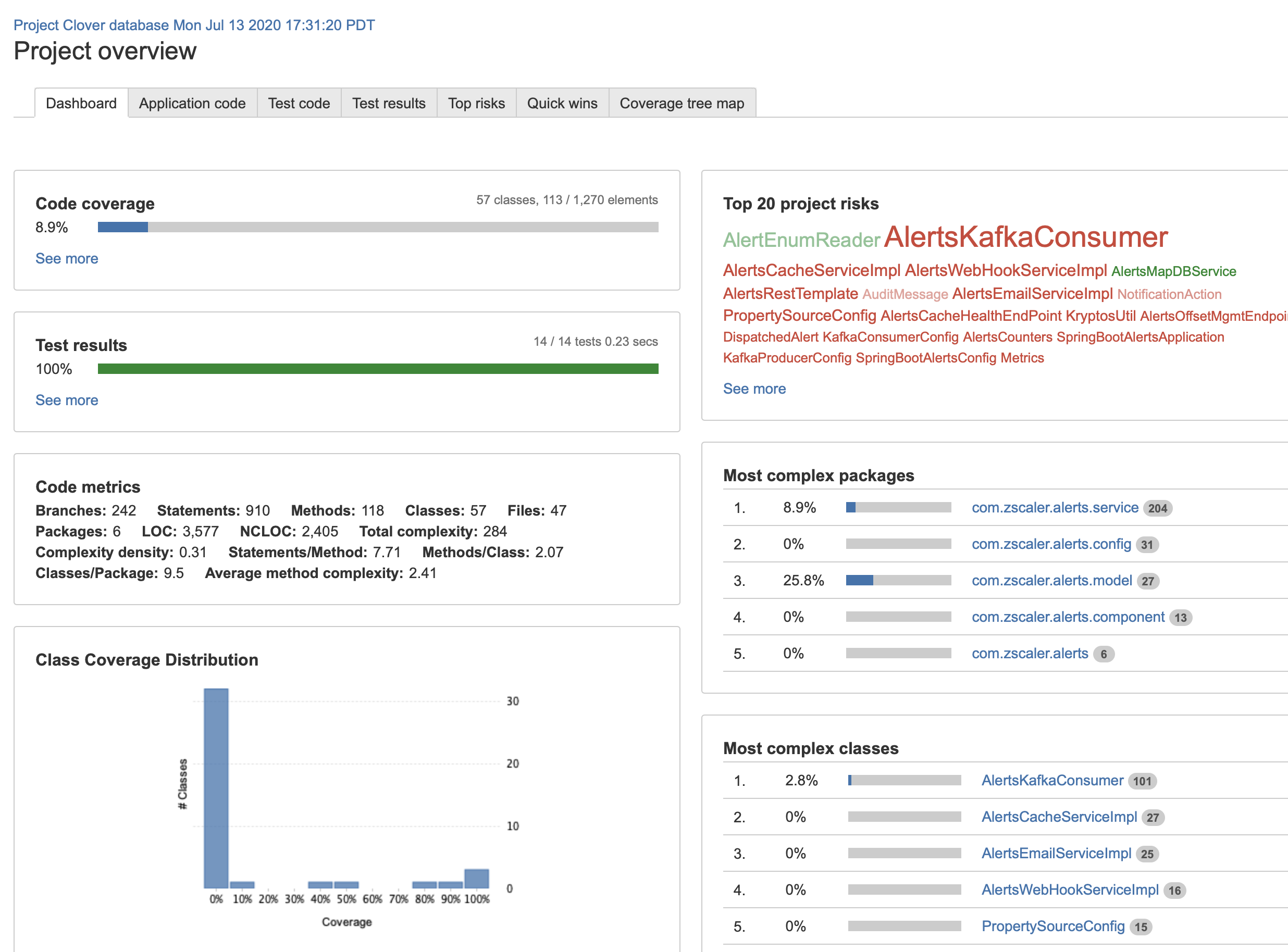

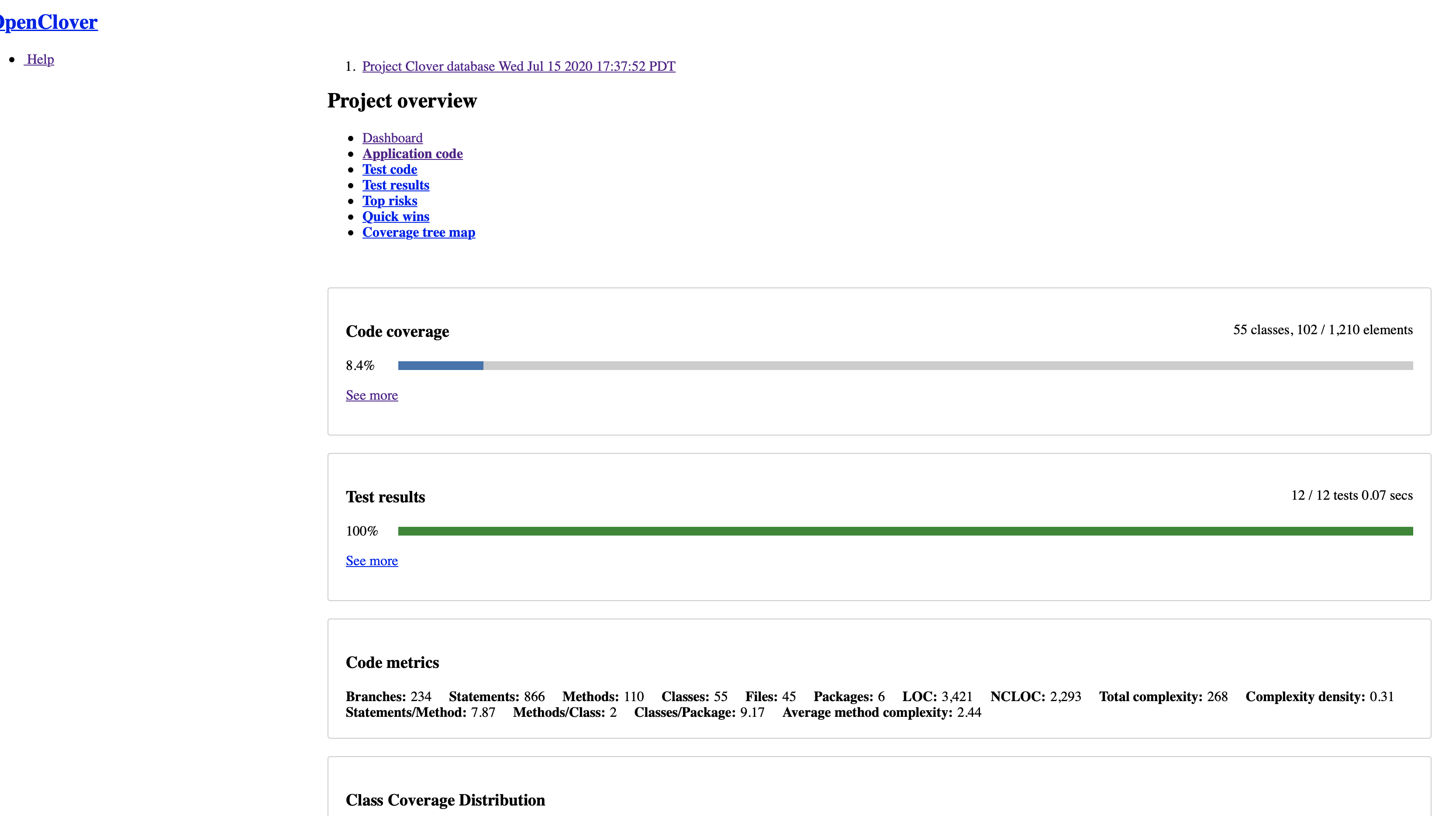

Example from my local laptop run vs Bamboo's clover report is attached. Why is the formatting getting lost when bamboo generates the clover report?

also, I have selected Allow artifacts to be embedded in Bamboo pages but no lu

ck

Manjunatha NS_9n8rua · Answer

in my inspect tab i can see this errors PFA

Richard White _TechTime_ · Answer

What is included and what is ignored is defined by the artifact copy pattern if you are using manual clover integration.

See attached screenshot showing a typical configuration:

This is defined in the configuration for whichever stage should be generating the clover report.

You can verify what is included in the artifact by going into one of the successful builds, selecting "artifacts" and downloading the clover report artifact. You should see all of the same files that you see when manually generating the report.

Hope that clarifies things for you.

Richard

Manjunatha NS_9n8rua · Answer

Yes , looks like it is not downloading  all of the css and related files from clover's site output.,

ono of our user try this ,

ran clover locally on their laptop and then loaded the file it generated into the browser. That looked perfect. Since the same files are being generated by bamboo builds also, they should render the same. However, maybe the way bamboo loads and copies the files over may be an issue.

E.g https://bamboo.corp.zscaler.com/artifact/TES-ANS/shared/build-1154/clover/img/classDistrubutionChart.png this file exists under bamboo but the browser is trying to load it from somewhere else.

]# ls -ltr /var/reports/notif/img/classDistrubutionChart.png

-rw-r--r--. 1 root root 3197 Jul 15 17:38 /var/reports/notif/img/classDistrubutionChart.png

how should load the report correctly am not getting

Thanks & Regards,

Manju  NS
