Not able to start windows docker container on build agent

Question

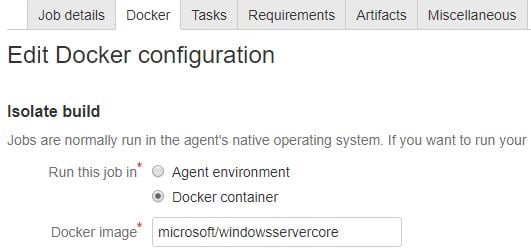

I am trying to run build plan on a windows docker container instead of directly on windows agent itself.

For some reason bamboo tries to start docker container with "--net host" mode and since windows container doesn't support this mode, it is failing. I need to find a way to prevent bamboo from using host mode, but I am not finding any configuration in my bamboo server.

Bamboo is trying to start container like following:

C:\Program Files\Docker\Docker\Resources\bin\docker.exe run --volume C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1:C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1 --volume C:\Users\Administrator\bamboo-agent-home	emp:C:\Users\Administrator\bamboo-agent-home	emp --detach --name 0eed3b21-3a3c-41e8-8e1b-1551be98f9c993388925 --net=host microsoft/windowsservercore tail -f /dev/null
... in: C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1

Following is the error I am receiving:

12-Apr-2019 15:53:06	Beginning to execute external process for build 'panda - panda-docker-WIP.py - Default Job #2 (PAN-PAND-JOB1-2)'
 ... running command line:
C:\Program Files\Docker\Docker\Resources\bin\docker.exe run --volume C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1:C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1 --volume C:\Users\Administrator\bamboo-agent-home	emp:C:\Users\Administrator\bamboo-agent-home	emp --detach --name 0eed3b21-3a3c-41e8-8e1b-1551be98f9c993388925 --net=host microsoft/windowsservercore tail -f /dev/null
 ... in: C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1

build	12-Apr-2019 15:53:07	8f45a0ceae2a7f29d1a7753ea54a1261e61551aa58c544184ff84edaa350342f
error	12-Apr-2019 15:53:08	C:\Program Files\Docker\Docker\Resources\bin\docker.exe: Error response from daemon: network host not found.
error	12-Apr-2019 15:53:08	Failed to start docker container 0eed3b21-3a3c-41e8-8e1b-1551be98f9c993388925
error	12-Apr-2019 15:53:08	com.atlassian.bamboo.docker.DockerException: Error running Docker run command
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.docker.DockerContainerServiceImpl.run(DockerContainerServiceImpl.java:118)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.v2.build.agent.docker.DockerContainerControllerImpl.startContainerIfRequired(DockerContainerControllerImpl.java:79)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.v2.build.agent.DefaultBuildAgent.build(DefaultBuildAgent.java:173)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.v2.build.agent.BuildAgentControllerImpl.lambda$waitAndPerformBuild$0(BuildAgentControllerImpl.java:122)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.variable.CustomVariableContextImpl.withVariableSubstitutor(CustomVariableContextImpl.java:185)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.v2.build.agent.BuildAgentControllerImpl.waitAndPerformBuild(BuildAgentControllerImpl.java:117)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.v2.build.agent.DefaultBuildAgent$1.run(DefaultBuildAgent.java:126)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.utils.BambooRunnables$1.run(BambooRunnables.java:48)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.security.ImpersonationHelper.runWith(ImpersonationHelper.java:26)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.security.ImpersonationHelper.runWithSystemAuthority(ImpersonationHelper.java:17)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.security.ImpersonationHelper$1.run(ImpersonationHelper.java:41)
error	12-Apr-2019 15:53:08		at java.lang.Thread.run(Unknown Source)
error	12-Apr-2019 15:53:08	Caused by: com.atlassian.utils.process.ProcessException: Error executing C:\Program Files\Docker\Docker\Resources\bin\docker.exe run --volume C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1:C:\Users\Administrator\bamboo-agent-home\xml-data\build-dir\PAN-PAND-JOB1 --volume C:\Users\Administrator\bamboo-agent-home	emp:C:\Users\Administrator\bamboo-agent-home	emp --detach --name 0eed3b21-3a3c-41e8-8e1b-1551be98f9c993388925 --net=host microsoft/windowsservercore tail -f /dev/null
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.docker.DockerContainerServiceImpl.execute(DockerContainerServiceImpl.java:255)
error	12-Apr-2019 15:53:08		at com.atlassian.bamboo.docker.DockerContainerServiceImpl.run(DockerContainerServiceImpl.java:106)
error	12-Apr-2019 15:53:08		... 11 more

Aron Weiler · Answer

Script tasks to the rescue! You CAN use docker on a Windows Agent, but it requires more manual steps. I have docker running my builds on Windows 10 with: * Bamboo Server 7.2.3 * Docker Desktop 4.2.0 * Using Bamboo-Specs There are various issues that I had to overcome, but now that everything is in place, it works very well. That's not saying that Atlassian shouldn't support this feature natively (and it doesn't seem that difficult), but in case you want to implement docker containers in your build system, you can use the example YAML bamboo spec code below. This code includes examples for: * Pulling your docker image * Running your image as a container * Executing commands on your container * Stopping the container * Copying files off of the container to the host system * Removing the container You may also need to log into your repo, if required, but that's just another script task executing the docker login command. Example Docker YAML Scripts: Example Docker Tasks: key: EDT tasks: ## Pull the docker image - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker pull ${bamboo.docker_image_name} ## Run the docker image as a new container with a couple of different volumes mounted - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker run --volume ${bamboo.working.directory}:${bamboo.docker_container_build_dir} --volume c:\something_else:c:\something_else_in_container --detach --interactive --tty --net=nat --workdir=${bamboo.docker_container_build_dir} --name ${bamboo.docker_container_name} ${bamboo.docker_image_name} ## Execute a .NET build on the container - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker exec -i -w ${bamboo.docker_container_build_dir} ${bamboo.docker_container_name} dotnet restore ${bamboo.solution_file} ## Stop the container because you can't use "docker cp" on a running Windows container - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker stop ${bamboo.docker_container_name} ## Copy some files off of the container to the local file system - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker cp ${bamboo.docker_container_name}:${bamboo.docker_container_buildoutput_dir} ${bamboo.working.directory}\buildoutput ## Remove the stopped container (container must be stopped first) - script: interpreter: BINSH_OR_CMDEXE environment: DOCKER_HOST=${bamboo.docker_host} scripts: - docker rm ${bamboo.docker_container_name} ## Some variables ## This is necessary when using TCP for controlling the docker daemon. ## If you use named pipes, setting this environment variable is not required. docker_host: tcp://localhost:2375 docker_registry: docker_registry_and_path: ${bamboo.docker_registry}/ docker_image_name: ${bamboo.docker_registry_and_path}/:latest docker_container_name: -${bamboo.buildNumber} docker_container_build_dir: c:\build docker_container_buildoutput_dir: c:\buildoutput solution_file:

Rafael Pinto Sperafico · Answer

Hi @Yogesh Gupta ,

Docker runner is not supported on Windows platform. Please, have a look at:

* https://jira.atlassian.com/browse/BAM-20219 - Docker Runner with Windows
* https://jira.atlassian.com/browse/BAM-20109 - Docker Runner argument '--net=host' causes docker images to fail

Kind regards,
Rafael
